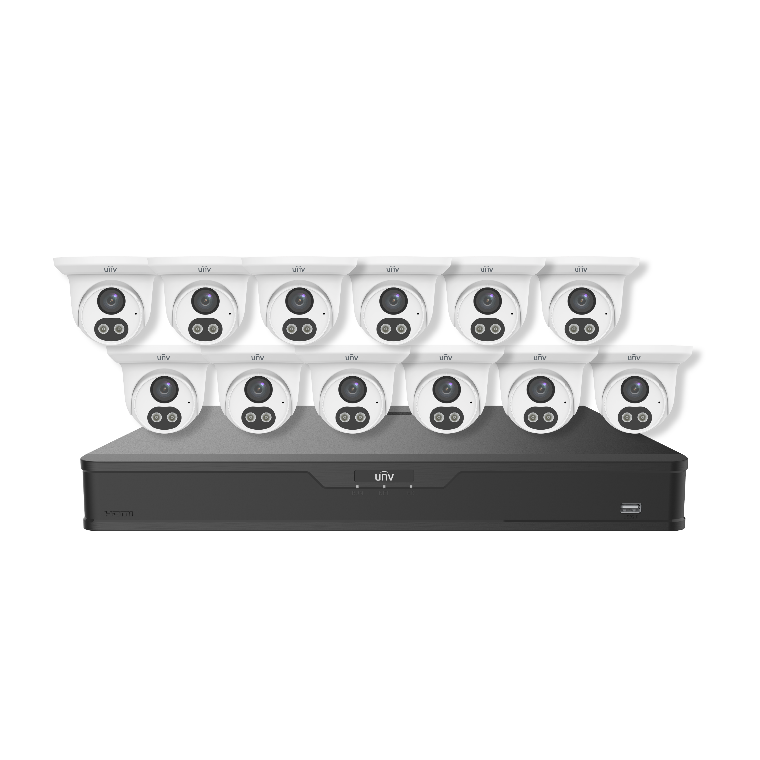

- IP KIT 24/7 Color Turret IP Security Camera, NVR302-16B-P16-IQx 1 with 4TB x 1 with IPC3614LB-AF28K-DL x 12, NDAA IP KIT 24/7 Color Turret IP Security Camera, NVR302-16B-P16-IQx 1 with 4TB x 1 with IPC3614LB-AF28K-DL x 12, NDAA
- Description
| Category | Specification |
|---|---|
| Model | NVR302‑16B‑P16‑IQ |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 — Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30 |
| Capability Limit | Max per channel: 8192 px length / 4096 px width |
| Audio Compression | G.711A, G.711U |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP/HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv4/IPv6 |
| Browser Support | IE10/11, Chrome 45+, Edge 79+, Firefox 52+ |
| IP Video Input | 16‑channel |
| Audio Input (RCA) | 1‑channel |
| HDMI Output | 4K (3840×2160)/30Hz and lower resolutions |
| VGA Output | Up to 1920×1080/60Hz |
| Audio Output (RCA) | 1‑channel |
| Live View Layout | 1 / 4 / 6 / 8 / 9 / 16 |
| Corridor Mode Options | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Two‑way Audio | 1‑channel (RCA) |
| Snapshot | 4‑ch snapshot, max D1 resolution |
| Recording Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / CIF |
| Local Playback | 16‑channel |
| VCA by IPC | Face Detection/Comparison, Vehicle Detection, SIP, UMD, People Counting, Traffic Monitoring |
| VCA by NVR | Face Detection/Comparison, SIP, UMD |
| VCA Search | Face, Vehicle, Non‑vehicle, Human, People Counting, Heat Map, AcuSearch |
| Smart by IPC | All channels (up to 8 images/s total) |
| Vehicle Picture Library | Up to 5 libraries, 25,000 images total |
| SIP by NVR | 2‑channel |
| UMD by NVR | 4‑channel |
| General Alarms | Defocus, Scene Change, Object Left/Removed, Auto Tracking, Motion, Tampering, Human Body, Video Loss, Alarm Input, Audio Detection |
| Alert Alarms | IP Conflict, Network Down, Disk Error/Offline/Full, Illegal Access, Recording/Snapshot Abnormal |
| GUI Languages | 38 languages |
| SATA Interfaces | 2 SATA |
| Max HDD Capacity | Up to 10TB per disk |
| Network Interface | 1 × RJ‑45 10/100/1000M |
| USB Ports | Front: USB2.0 — Rear: USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8‑channel |
| Alarm Out | 2‑channel |
| Power Supply | AC 100–240V |
| PoE Ports | 16 × RJ‑45 10/100M |
| PoE Power | 30W per port / 240W total |
| PoE Standard | IEEE 802.3af / 802.3at |
| Operating Temperature | –10°C to +55°C |
| Operating Humidity | ≤90% RH |
| Power Consumption | ≤12W (without HDD) |
| Dimensions | 380 × 322 × 53 mm |
| Weight | ≤2.7 kg |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| Category | Specification |
|---|---|
| Model | IPC3614LB‑AF28K‑DL |
| Resolution | 4MP |
| Sensor | 1/3" CMOS |
| Min Illumination | 0.01 lux (Color, F1.6), 0 lux with IR |
| Day/Night | ICR auto switch |
| Shutter | 1–1/100000 s (Auto/Manual) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–80° |
| Rotate Range | 0°–360° |
| S/N Ratio | >52 dB |
| WDR | DWDR |
| Lens Type | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| FOV (Horizontal) | 97° |
| FOV (Vertical) | 52.2° |
| FOV (Diagonal) | 107.5° |
| DORI Detect | 63 m |
