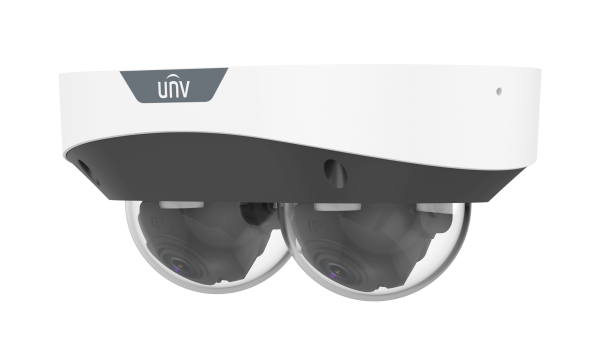

- UNV 4MP Dual Lens Non-Splicing Dome Camera, 2.8mm UNV 4MP Dual Lens Non-Splicing Dome Camera, 2.8mm
- Description
• 2*4MP LightHunter MultiView Fixed IR Dome Network Camera
• High quality image with 2 × 4 MP resolution, 1/3.0" CMOS sensor
• Single IP with dual channels
• 4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Both channels support intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• (only channel 1)
• Intelligent people flow counting and crowd density monitoring (only channel 1)
• 130 dB true WDR technology enables clear image in strong light scene
• Built-in dual-mic
• MicroSD, up to 512 GB
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection and IK10 vandal resistant
• 3-axis
|
|
IPC3224SS-ADF28K-I1 |
|
|
Channel |
Channel 1 |
Channel 2 |
|
Camera |
||
|
Max Resolution |
4 MP |
|
|
Sensor |
1/3.0" CMOS |
|
|
Min. Illumination |
Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
|
Adjustment Angle |
Pan: 0° to 180°, Tilt: 0° to 66°, Rotate: 0° to 346° |
|
|
S/N |
>52 dB |
|
|
WDR |
130 dB |
|
|
Lens |
||
|
Focal Length |
2.8 mm |
|
|
Iris Type |
Fixed |
|
|
Iris |
F1.6 |
|
|
Field of View (H) |
97.68° |
|
|
Field of View (V) |
52.67° |
|
|
Field of View (D) |
102.52° |
|
|
Lens Type |
Fixed |
|
|
DORI |
||
|
DORI Distance (Lens) |
2.8 mm |
|
|
DORI Distance (Detect) |
63.0 m (206.7 ft.) |
|
|
DORI Distance (Observe) |
25.2 m (82.7 ft.) |
|
|
DORI Distance (Recognize) |
12.6 m (41.3 ft.) |
|
|
DORI Distance (Identify) |
6.3 m (20.7 ft.) |
|
|
Illuminator |
||
|
Supplemental Light |
IR |
|
|
Illumination Distance (IR) |
30 m (98.4 ft.) |
|
|
IR On/Off Control |
Auto/Manual |
|
|
Wavelength |
850 nm |
|
|
Video |
||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
|
Frame Rate |
Main Stream: 4 MP (2688 × 1520) , max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720) max. 30 fps |
|
|
Video Bit Rate |
128 Kbps to 16 Mbps |
|
|
U-code |
Support |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Up to 4 areas |
|
|
ROI |
Support |
|
|
Video Stream |
Triple streams |
|
|
Image |
||
|
White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|
|
Digital Noise Reduction |
2D/3D DNR |
|
|
Smart IR |
Support |
|
|
Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|
|
Dewarping |
N/A |
|
|
HLC |
Support |
|
|
BLC |
Support |
|
|
Defog |
Digital defog |
|
|
Image Stabilization |
N/A |
|
|
Intelligent |
||
|
Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|
|
Statistical Analysis |
N/A |
|
|
Events |
||
|
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|
|
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
|
|
Audio |
||
|
Audio Compression |
G.711U, G.711A |
|
|
Audio Bitrate |
64 Kbps |
|
|
Two-way Audio |
Support |
|
|
Suppression |
Support |
|
|
Sampling Rate |
8 kHz |
|
|
Storage |
||
|
Edge Storage |
MicroSD, up to 512 GB |
|
|
Network Storage |
ANR, NAS (NFS) |
|
|
Network |
||
|
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
|
|
Compatible Integration |
API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
|
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
|
Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|
|
Client |
EZStation, APP |
|
|
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
|
Interface |
||
|
Audio I/O |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
|
|
Alarm I/O |
1/1 |
|
|
Serial Port |
N/A |
|
|
Built-in Mic |
Built-in dual-mic |
|
|
Built-in Speaker |
N/A |
|
|
WIFI |
N/A |
|
|
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|
|
Video Output |
N/A |
|
|
Certification |
||
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) |
|
|
Safety |
CE-LVD (EN 62368-1) |
|
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
|
Protection |
IP67 (IEC 60529) |
|
|
General |
||
|
Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
|
|
Power Consumption |
Max. 9.1 W |
|
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
|
Dimensions |
176 mm × 104 mm × 72 mm (6.9" × 4.1" × 2.8") (L × W × H) |
|
|
Weight |
0.62 kg (1.37 lb.) |
|
|
Material |
Metal |
|
|
Working Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|
|
Storage Environment |
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
|
|
Surge Protection |
4 KV |
|
|
Reset Button |
Support |
|
|
Web Client Language |
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
|
