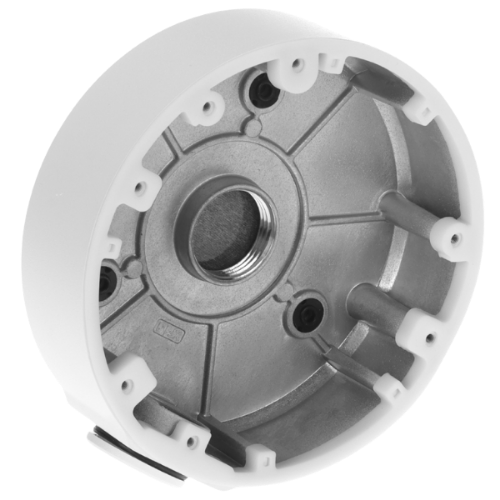

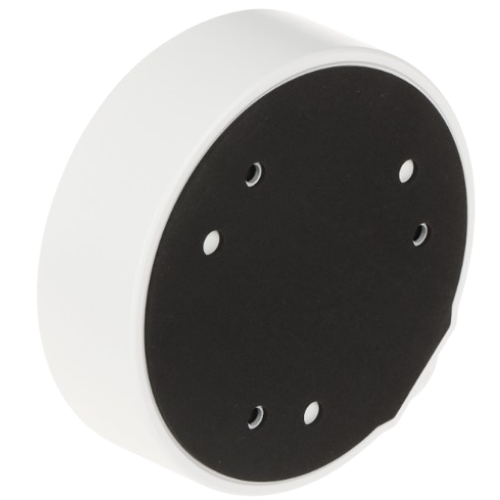

Uniview TR-JB03-H-IN – Waterproof Aluminum Junction Box for Fisheye, Dome & PTZ Cameras (126 mm x 36 mm / 4.96" x 1.42")

Product Overview

The Uniview TR-JB03-H-IN (Dimensions: 126.0 mm x 36.0 mm / 4.96" x 1.42") is a heavy-duty, weatherproof camera mounting junction box engineered specifically for Uniview (UNV) fisheye, fixed dome, turret, and mini PTZ security cameras (including IPC363X series, IPC361XS/E series, 814-Fisheye, and IPC641X PTZ series). Designed for commercial, industrial, and residential video surveillance installations, it provides a dedicated, sealed internal compartment to conceal and protect sensitive camera pigtails, RJ-45 network terminations, DC power plugs, and audio/alarm wiring from harsh outdoor weather exposure and physical tampering.

Constructed from robust die-cast aluminum alloy with an integrated waterproof silicone sealing gasket, the TR-JB03-H-IN delivers high durability across an operating temperature range of -40°C to +60°C. It features a side cable entry knockout equipped with a waterproof compression gland, a rear wall cable pass-through hole for through-wall wiring, and a structural load-bearing capacity of up to 3.0 kg (6.61 lbs). Finished in a clean Uniview matte white powder coating, it ensures long-term corrosion resistance and streamlined surface mounting on flat walls and ceilings.

Key System Features & Functionality

• Dedicated Uniview Camera Compatibility: Precision pre-threaded hole patterns designed to seamlessly match Uniview IPC363X, IPC36XXS/E fixed domes, 814 Fisheye, and IPC641X mini PTZ series.

• Weatherproof Aluminum Alloy Construction: High-durability die-cast aluminum prevents water ingress, dust accumulation, and environmental degradation.

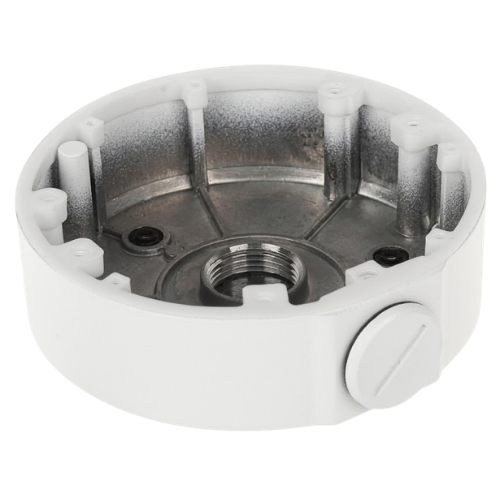

• Concealed Cable Management: Spacious internal cavity protects RJ-45 waterproof connectors, power supplies, and excess cabling from vandalism and exposure.

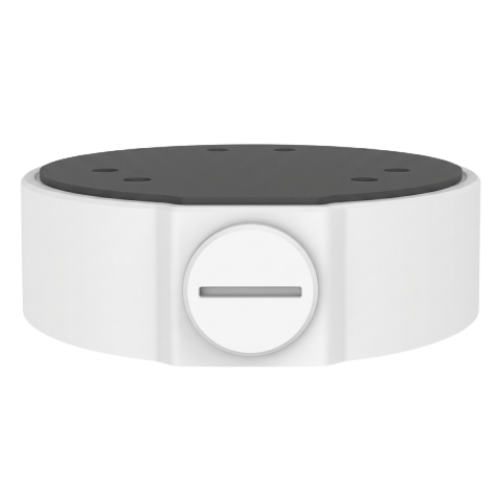

• Dual Cable Entry Options: Features a side conduit entry port equipped with a waterproof cable gland and a rear pass-through hole for through-wall cable routing.

• High Structural Stability: Safely supports camera hardware loads up to 3.0 kg (6.61 lbs) with high resistance to wind vibration.

• Extreme Climate Resistance: Built to operate reliably in demanding commercial environments ranging from -40°C to +60°C.
