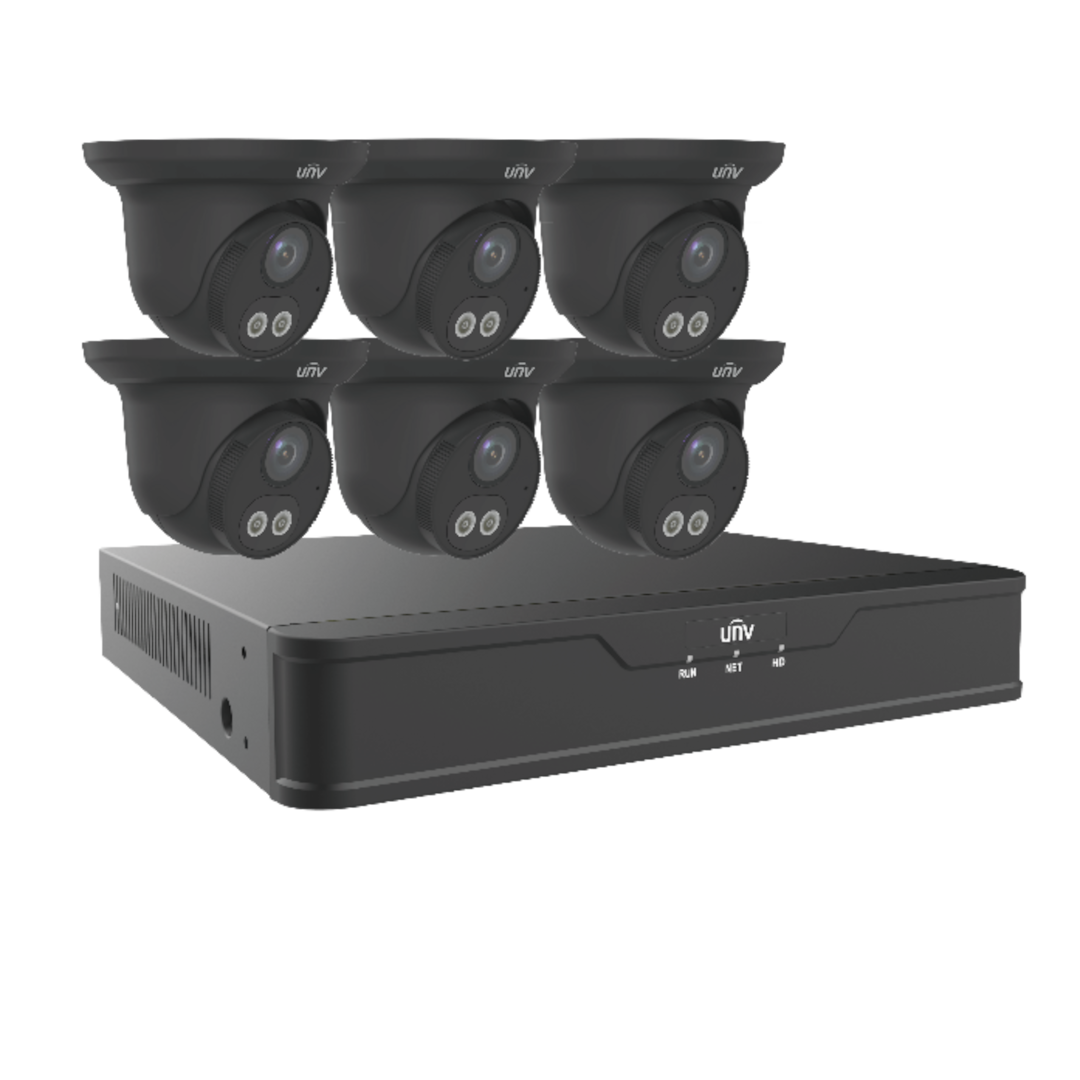

- IP KIT 24/7 Color Turret IP Security Camera, NVR301-08S3-P8 x 1 with IPC3614LB-AF28K-DL-BK x 6, NDAA IP KIT 24/7 Color Turret IP Security Camera, NVR301-08S3-P8 x 1 with IPC3614LB-AF28K-DL-BK x 6, NDAA
- Description
NVR301-08S3-P8
Support Ultra 265/H.265/H.264 video formats
8-channel input
Plug & Play with 8 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD
Support cloud upgrade
EC-T4F28M-V3
Day/night functionality
Smart IR, up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
ONVIF Conformance
Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
| Feature | Specification |
|---|---|
| Model | NVR301-08S3-P8 |
| Video Format | Ultra 265 / H.265 / H.264 |
| IP Channels | 8 |
| Max Recording Resolution | Up to 8 MP |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | Up to 128 |
| Video Outputs | 1 HDMI / 1 VGA |
| Simultaneous Output | HDMI and VGA |
| HDMI Resolutions | 4K@30Hz, 1080p@60Hz, 720p, 1024×768 |
| VGA Resolutions | 1080p@60Hz, 720p, 1024×768 |
| Recording Resolutions | 4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1 |
| Audio Output | 1 channel RCA |
| Audio Compression | G.711A / G.711U |
| Synchronous Playback | 8 channels |
| Live View Display | 1 / 4 / 6 / 8 / 9 |
| Hard Drive | 1 SATA |
| Max HDD Capacity | Up to 8 TB |
| PoE Ports | 8 × RJ45 10/100 Mbps |
| PoE Power | 30 W per port / 75 W total |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 52 V DC |
| Power Consumption | ≤ 9 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C |
| Dimensions | 260 × 240 × 46 mm |
| Weight | ≤ 1.1 kg (without HDD) |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| Feature | Specification |
|---|---|
| Model | EC-T4F28M-V3 |
| Image Sensor | 1/2.9" CMOS, 4 MP |
| Minimum Illumination | 0.01 lux (color) / 0 lux with IR |
| Day / Night | IR-cut filter with auto switch |
| WDR | 120 dB |
| Signal-to-Noise Ratio | > 52 dB |
| Lens | 2.8 mm F2.0 |
| Horizontal Field of View | 101.5° |
| Vertical Field of View | 55.6° |
| Diagonal Field of View | 111.6° |
| IR Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| Video Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Max Resolution | 2560 × 1440 (4 MP) |
| Frame Rate | 20 fps (4 MP) / 30 fps (1080p) |
| Bit Rate | 128 Kbps – 6144 Kbps |
| Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| Storage | MicroSD up to 128 GB |
| Network Protocols | IPv4, TCP, UDP, RTSP, HTTP, HTTPS, FTP |
| Integration | ONVIF (Profile S, G, T), API, SDK |
| Power Supply | 12 V DC ±25% / PoE IEEE 802.3af |
| Power Consumption | Max. 4 W |
| Protection | IP67 |
| Operating Temperature | -30 °C to +60 °C |
| Material | Metal + Plastic |
| Weight | 0.30 kg |
