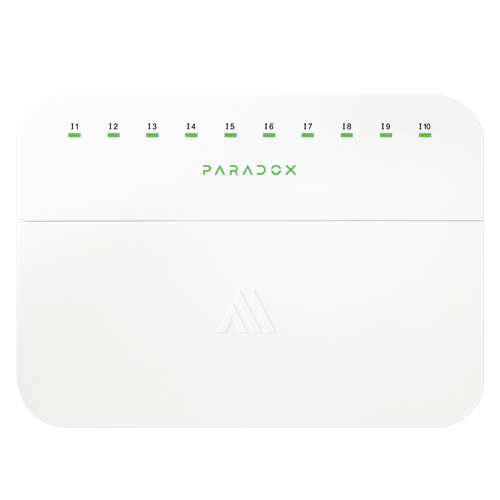

Paradox ZX10M-F6B M-Series 10-Zone Wireless & Wired Expansion Module

The Paradox ZX10M-F6B (ZX10M) is an official 10-zone expansion module engineered for the Paradox M Series security ecosystem. Operating over encrypted GFSK 2-way wireless communication (868 MHz or 914MHz), it enables security integrators to easily add up to 10 independent hardwired zone inputs to the control panel without running long cable trunks back to the main enclosure. Each zone supports flexible resistor configurations (No EOL, Single EOL, or Dual EOL) and accepts inputs from magnetic contacts, PIR motion sensors, panic buttons, or perimeter detectors.

Key System Features & Functionality

• 10 Independent Hardwired Zones: Wirelessly bridges up to 10 hardwired security zone inputs directly to the Paradox M Series main panel.

• Flexible EOL Configuration: Supports No EOL, Single EOL (SEOL), or Dual EOL (DEOL) resistor end-of-line monitoring per zone input.

• Encrypted GFSK 2-Way RF: Communicates via secure 2-way wireless frequency-hopping technology to prevent signal interference or jamming.

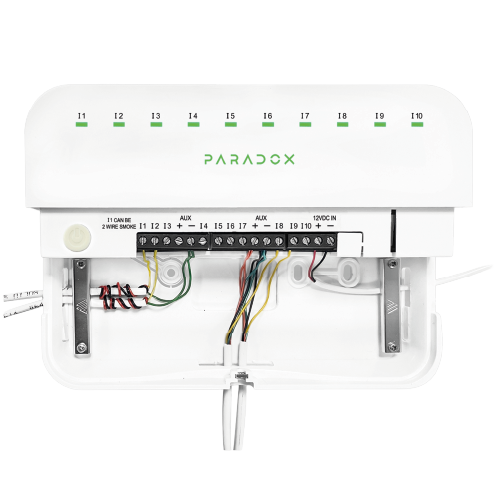

• Auxiliary Power Output: Integrated auxiliary power terminals to provide operating power directly to connected hardwired motion detectors or sensors.

• Over-the-Air (OTA) Upgrades: Supports remote firmware updates via the Paradox BlueEye mobile application.

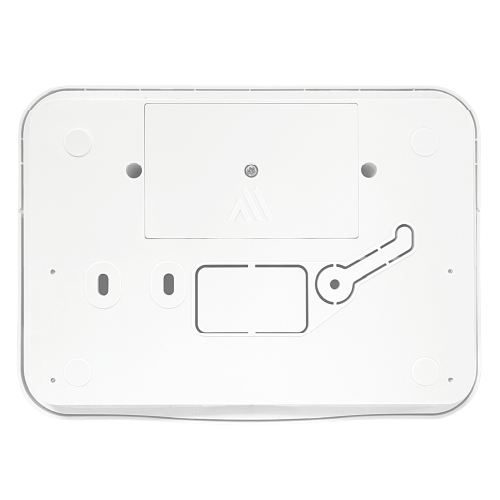

• Dual Tamper Protection: Integrated cover and wall tamper switches alert the system immediately if the expansion enclosure is opened or detached.
