- HO-X85 – 3MP Pan/Tilt Wire-Free Battery Security Camera (360° Visual Coverage, VicoHome AI, PIR + Two-Way Audio, IP65) HO-X85 – 3MP Pan/Tilt Wire-Free Battery Security Camera (360° Visual Coverage, VicoHome AI, PIR + Two-Way Audio, IP65)
- Description
- Key Technical Specifications
Product Overview

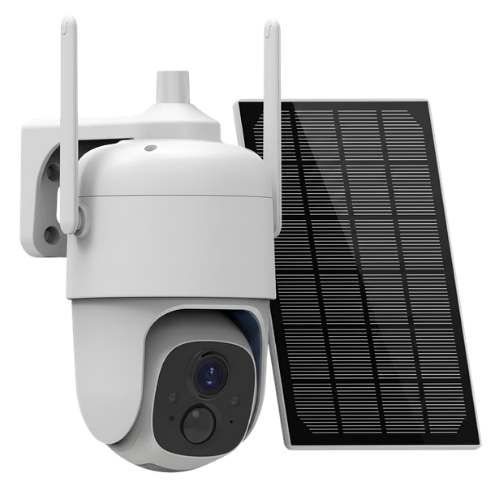

The HO-X85 is a 100% wire-free 3 Megapixel (2K) outdoor pan/tilt battery-powered network camera engineered for residential, commercial, and remote video surveillance installations where running power or data cables is impractical. Powered by a high-capacity rechargeable lithium-ion battery (compatible with external solar panel charging), it delivers high-definition video at 2304 × 1296 (3MP / 2K) resolution, capturing sharp details of individuals, vehicles, and surroundings.
Equipped with a motorized pan/tilt mechanism, the HO-X85 provides 355° horizontal rotation and 90° vertical tilt, delivering full 360° panoramic visual coverage without blind spots. Powered by the VicoHome smart IoT platform, the camera combines an advanced PIR thermal sensor with on-device cloud AI analytics to accurately detect and classify people, pets, vehicles, and packages, dramatically minimizing false triggers. It features Smart Dual-Source Night Vision (infrared night vision plus bright white LED spotlights for full-color night video), full-duplex two-way talk, an integrated siren deterrent, and local storage via a MicroSD card slot (up to 128 GB), all encased in an IP65 weatherproof housing.
Key System Features & Functionality
-
100% Wire-Free Battery Operation: High-capacity rechargeable lithium battery eliminates power cabling and supports plug-and-play solar panel continuous charging.
-
Ultra-Clear 3MP (2K) Resolution: Delivers crisp 2304 × 1296 high-definition video feeds with digital zoom and clear forensic clarity.
-

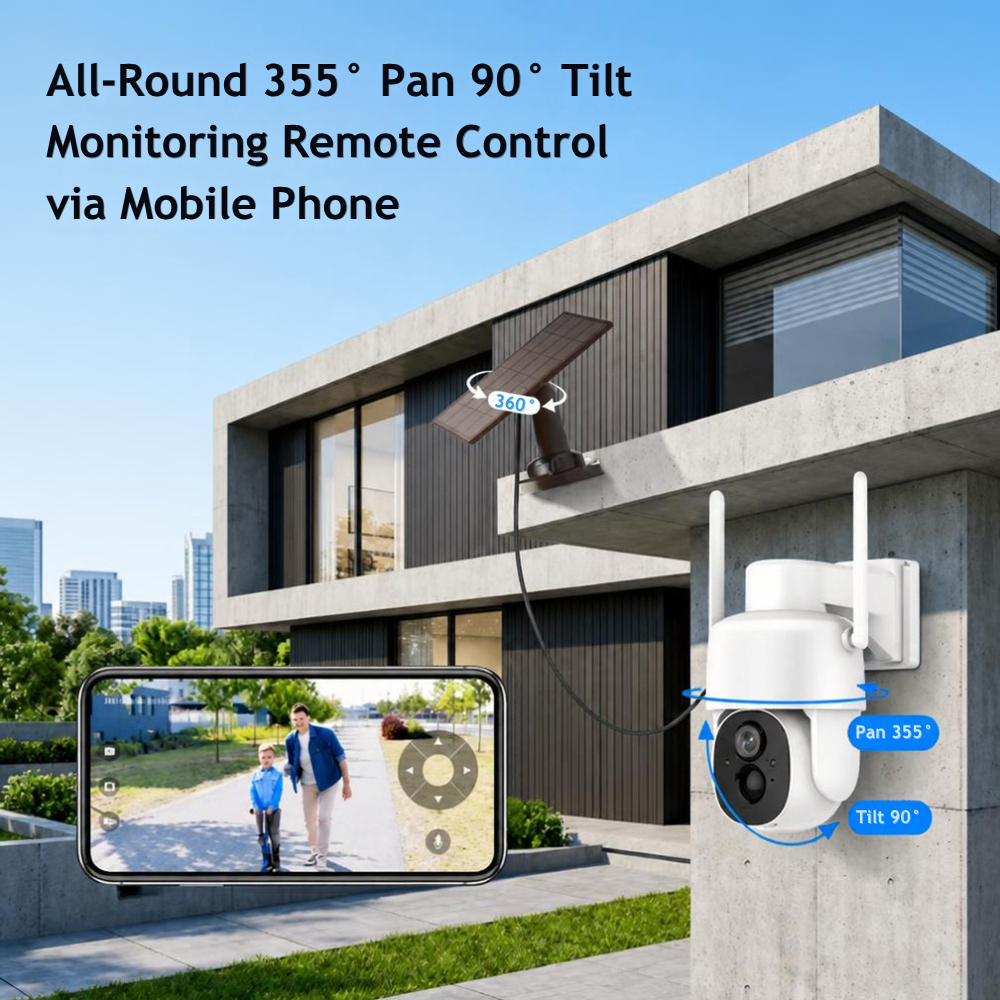

360° Motorized Pan & Tilt Coverage: Features 355° horizontal pan and 90° vertical tilt controllable directly via the VicoHome mobile app.
-
VicoHome AI & Smart PIR Detection: Dual-layer detection uses physical PIR motion sensing combined with AI algorithms to accurately classify persons, vehicles, pets, and package deliveries.
-
Dual Light Full-Color Night Vision: Switchable between stealth infrared night vision and bright LED spotlight illumination for full-color nighttime recording.
-
Active Defense Siren & Flashing Strobe: Automatically or manually triggers a loud audio siren and spotlight strobe to ward off unauthorized intruders.
-
Full-Duplex Two-Way Audio: Integrated high-sensitivity microphone and high-output loudspeaker enable real-time interactive communication.
-
Rugged IP65 Weatherproof Enclosure: Sealed construction ensures dependable performance against rain, snow, heat, and dust ingress.
| Parameter | Specification |
| Product Model / SKU | HO-X85 |
| Product Type | 3MP Wire-Free Pan/Tilt Battery-Powered Wi-Fi Security Camera |
| App Platform | VicoHome IoT Platform |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 3 MP / 2K (2304 × 1296 @ 15 fps) |
| Focal Length & FOV | Approx. 3.2 mm (Diagonal FOV: ~110°, Horizontal: ~95°) |
| Pan & Tilt Mechanical Range | Horizontal Pan: 355°, Vertical Tilt: 90° |
| Detection Method | Dual Trigger: Hardware PIR Sensor + Cloud/Edge AI Algorithms |
| PIR Detection Distance | Up to 7–10 m (23–32 ft) |
| Night Vision Range | IR Range: Up to 10 m (33 ft); Spotlight Full-Color: Up to 7–10 m |
| Lighting Hardware | Dual source: Infrared LEDs + Warm White LED Spotlights |
| Audio Interface | Full-duplex two-way audio (Built-in high-output mic and speaker) |
| Audio Siren | Built-in audible security alarm siren |
| Wireless Standard | Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n) |
| Local Storage Support | MicroSD card slot (supports up to 128 GB) |
| Power Input | DC 5V ±5% / 1.5 A (Micro-USB or USB Type-C charging port) |
| Battery Life | 1 to 6 months per charge (depending on wake-up frequency and PIR events) |
| Ingress Protection | IP65 (Outdoor Weatherproof) |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
