Ajax NVR (8-Channel) – 4K Smart Network Video Recorder (White)

Product Overview

The Ajax NVR (8-Channel) (SKU: 78268.122.WH) is a next-generation network video recorder engineered to seamlessly converge high-definition IP video surveillance with the Ajax intrusion security ecosystem. Designed to support up to 8 IP camera channels with resolutions up to 4K (3840 x 2160 px) at 25/30 fps, it provides seamless interoperability with native Ajax IP cameras (TurretCam, DomeCam Mini, BulletCam) as well as third-party cameras via ONVIF (Profile S/T) and RTSP protocols.

Equipped with proprietary JetSparrow peer-to-peer transmission technology, the NVR delivers ultra-fast archive scrubbing, instantaneous video wall rendering, and smooth live streaming with zero cloud dependency. It supports one 3.5'' SATA hard drive up to 16 TB, advanced H.265 / H.264 video compression, customizable onboard software motion detection, and an incoming bandwidth capacity of up to 100 Mbps. Built with a fanless passive cooling design, an anti-sabotage tamper switch, and an internal mains power supply, it delivers silent, enterprise-grade video recording in a clean matte white enclosure.

Key System Features & Functionality

• 8-Channel 4K Video Recording: Supports up to 8 IP video channels with ultra-high-definition video recording up to 4K (3840 x 2160 px) @ 25/30 fps.

• Broad Third-Party & Ajax Camera Support: Fully compatible with Ajax IP cameras, standard ONVIF (Profile S/Profile T), and direct RTSP video streams.

• JetSparrow High-Speed Video Streaming: Proprietary transmission technology enables instant archive navigation, synchronized multi-camera timeline playback, and sub-second live view.

• Massive 16 TB Local Storage Capacity: Features an integrated SATA interface supporting a 3.5'' HDD up to 16 TB for extensive continuous or event-driven video retention.

• Smart Motion Detection & Scenario Integration: Built-in software motion detection with adjustable detection zones pairs with Ajax security detectors to trigger event recordings and push notifications.

• Bandwidth & Compression Efficiency: Supports high-efficiency H.265 and H.264 video codecs with an incoming network bandwidth of up to 100 Mbps.

• Fanless & Silent Operation: High-efficiency passive cooling architecture eliminates fan noise, prevents internal dust accumulation, and extends hardware lifespan.

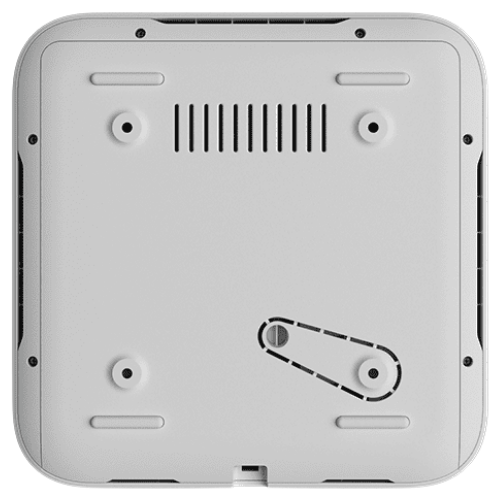

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base features an integrated tamper switch that reports unlatching or dismounting immediately to the Ajax app.
