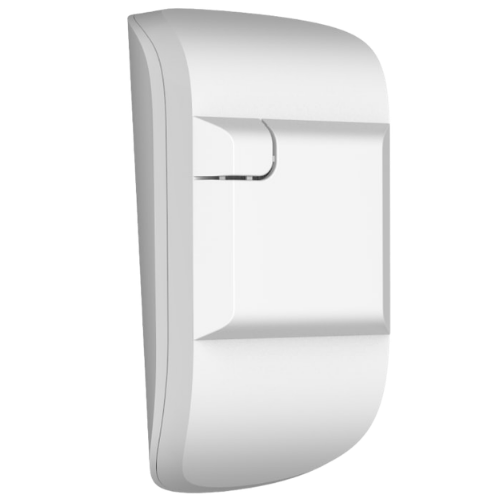

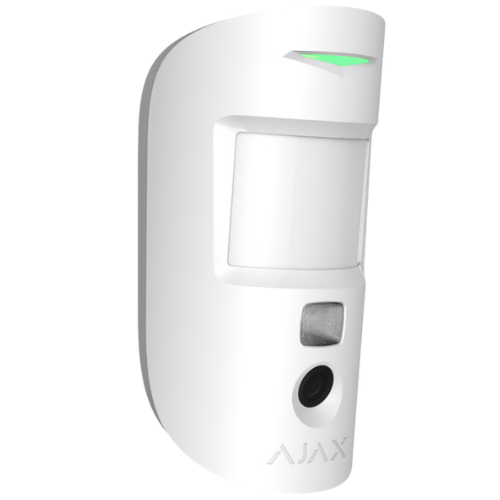

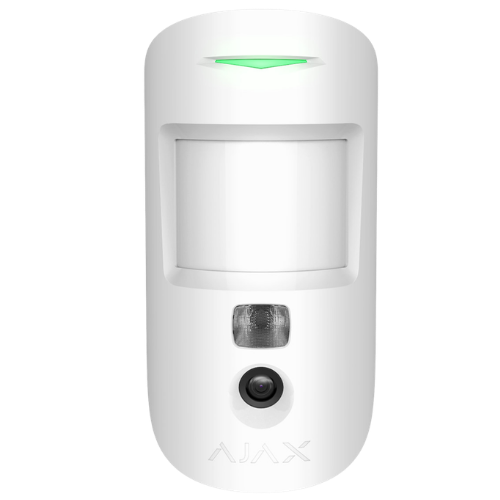

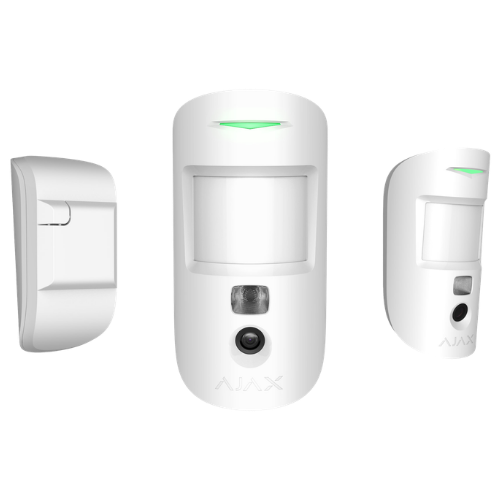

Ajax MotionCam (PhOD) Jeweller – Wireless PIR Motion Detector with Photo on Demand & Visual Alarm Verification (White, 9NA)

Product Overview

The Ajax MotionCam (PhOD) Jeweller (SKU: 57538.120.WH3, 9NA region frequency) is an advanced wireless indoor PIR motion detector equipped with Photo on Demand (PhOD) functionality alongside automatic visual alarm verification. Beyond capturing immediate photographic bursts upon intrusion alarms, the PhOD series empowers authorized users and administrators to request real-time snapshot photos on demand directly through the Ajax mobile app, as well as schedule automated captures or trigger photos via linked security scenarios (e.g., fire alerts or panic button activations).

Operating across dual encrypted radio protocols—Jeweller for instant alarm transmission (0.15 s) and Wings for high-speed photo delivery across distances up to 1,700 meters (5,500 ft)—the detector delivers its first snapshot in under 9 seconds. Designed with granular privacy permissions, built-in infrared (IR) night vision, and SmartDetect digital algorithms with pet immunity for animals up to 20 kg (44 lb), it operates autonomously for up to 4 years on pre-installed CR123A lithium batteries in a clean matte white finish.

Key System Features & Functionality

• Photo on Demand (PhOD) & Scenario Verification: Captures photos upon alarm activation, via manual request in the Ajax app, through programmed automation scenarios, or on set schedules.

• Strict Privacy Permissions: Multi-level access permissions managed in the Ajax app ensure only authorized master users or designated roles can request on-demand visual snapshots.

• Rapid Visual Delivery in <9 Seconds: Delivers an animated series of 1 to 5 photos (up to 640 x 480 px) to confirm alarms immediately and prevent false emergency dispatches.

• Dual Radio Protocol Architecture: Utilizes Jeweller for lightning-fast alarm signaling (0.15 s) and the dedicated Wings protocol for transferring encrypted image data over long distances.

• Intelligent Pet Immunity: SmartDetect digital processing algorithms ignore pets weighing up to 20 kg (44 lb) and measuring under 50 cm (19.5 in) in height.

• Integrated Night Vision: Built-in infrared (IR) backlight allows the detector to capture clear visual verification photos in low-light conditions and complete darkness.

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that immediately alerts users and CMS dispatchers if the device is unlatched or removed from the wall.
