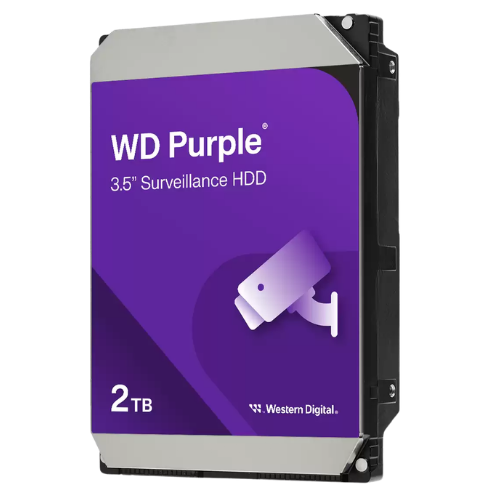

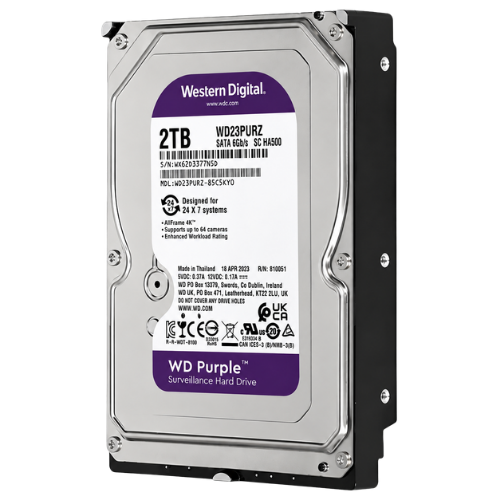

WD Purple 2TB Surveillance Hard Drive (5400 RPM, 64MB Cache, Up to 64 HD Cameras)

Product Overview

The WD23PURZ 2TB 3.5" Surveillance Hard Drive is a purpose-built, high-reliability internal mechanical storage drive manufactured by Western Digital under the dedicated WD Purple™ line. Engineered specifically to meet the rigorous thermal demands, continuous write cycles, and multi-bay structural vibrations of 24/7 video surveillance systems, this drive prevents dropped frames, reduces visual stuttering, and maintains video retention across professional DVR and NVR installations.

Featuring Western Digital's proprietary AllFrame™ technology, the WD23PURZ optimizes ATA streaming commands to reduce pixelation and frame errors while supporting configurations with up to 64 single-stream high-definition (HD) cameras. Utilizing conventional magnetic recording (CMR) mechanics operating at an energy-efficient 5400 RPM class with a 64MB cache and a SATA 6.0 Gb/s (SATA3) interface, it delivers an annualized workload rating of 180 TB/year—triple the endurance of standard desktop drives. It is ideal for residential security setups, commercial facilities, and small-to-medium business NVR chassis requiring continuous surveillance write endurance.

✅ Key Features

• Surveillance-Grade Engineering: Purpose-built for 24/7 continuous operation in high-definition video surveillance recording systems.

• Exclusive AllFrame™ Technology: Improves ATA streaming to reduce frame drops, refine video playback, and optimize high-throughput multi-camera recording.

• Support for up to 64 HD Cameras: Engineered to ingest video feeds from up to 64 single-stream high-definition cameras concurrently.

• Workload Rating up to 180 TB/Year: Delivers up to 3× the workload capacity of standard desktop drives to handle continuous video write loads.

• CMR (Conventional Magnetic Recording): Leverages proven CMR architecture for consistent, uninterrupted write performance across full storage volumes.

• Energy-Efficient 5400 RPM Spindle: Reduces heat dissipation, mechanical vibration, and power draw in multi-bay NVR enclosures.

• 64MB Cache & SATA 6 Gb/s: Delivers stable data buffering and interface throughput for uninterrupted multi-channel video streams.

• Tarnish-Resistant Components: Constructed with corrosion-resistant internal hardware for dependable long-term operation in challenging physical environments.

📸 Compatible Devices

• Digital Video Recorders (DVR) and Network Video Recorders (NVR) with standard 3.5" SATA bays

• Hybrid CCTV security recorders (AHD, TVI, CVI, Analog)

• Surveillance-oriented Network Attached Storage (NAS) appliances (1 to 8 drive bays)

• Video Management System (VMS) servers and centralized recording appliances

• Standalone surveillance monitoring workstations and direct-attached storage (DAS) arrays

🕐 Approximate Recording Capacity at 2TB

• 4-Camera System @ 1080p (H.264, 15fps): ~20–28 days of continuous recording

• 4-Camera System @ 1080p (H.265, 15fps): ~40–56 days of continuous recording

• 8-Camera System @ 1080p (H.265, 15fps): ~20–28 days of continuous recording

• 16-Camera System @ 1080p (H.265, 15fps): ~10–14 days of continuous recording

• 4-Camera System @ 4MP (2K, H.265, 15fps): ~24–32 days of continuous recording

• Motion Detection Mode: Up to 2–3× longer retention compared to continuous streams

Note: Actual recording days depend heavily on video compression standards (H.264 / H.265 / Smart Codecs), individual camera bitrates, framerates, audio recording channels, scene complexity, and motion detection configurations.
