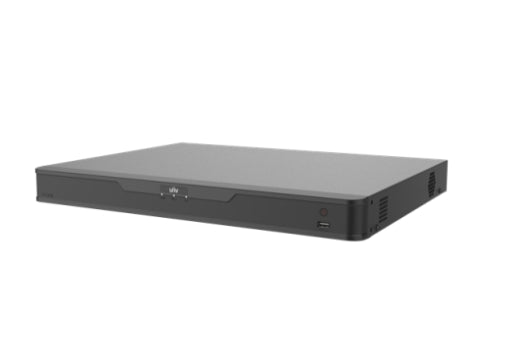

Network Video Recorder
Smart - Face Detection; Vehicle Detection; Smart Intrusion Prevention (SIP) (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); People Counting (People Flow Counting, Crowd Density Monitoring); Traffic Monitoring
• Support Ultra H.265/H.265/H.264 video formats
• 32 channel input
• 32 channel input
• 16 channel input PoE
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support cloud upgrade
| Category | Specifications |
|---|---|
| Decoding | Formats: Ultra 265, H.265, H.264 Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30, 32×D1 |
| Decoding Notes | Max resolution per channel: 8192 × 4096 px |
| Audio Compression | G.711A, G.711U |
| Network | Incoming bandwidth: 160 Mbps Outgoing bandwidth: 128 Mbps Remote users: 128 Supported protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Browser Support | IE10/11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video / Audio Input | IP Video Input: 32 channels RCA Audio Input: 1 channel IP Speaker Input: 16 channels |
| Video / Audio Output | HDMI: up to 4K@30 Hz VGA: up to 1920×1080@60 Hz RCA Audio Output: 1 channel |
| Live View | Display modes: 1/4/6/8/9/16/25/32 Corridor mode: 3/4/5/7/9/10/12/16/32 |
| Two‑way Audio | 1 channel (RCA) |
| Snapshot | 4‑channel snapshot, max D1 resolution |
| Recording | Supported: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, CIF |
| Local Playback | 16‑channel synchronous playback |
| Smart Functions | Face detection, face comparison, license plate recognition, smart intrusion prevention, ultra‑motion detection, people counting, heat map, AcuSearch, AcuTrack |
| Alarms | General alarms: defocus, scene change, object left/removed, auto‑tracking, motion detection, tampering, human detection, video loss, alarm input, audio detection Alert notifications: IP conflict, network disconnect, disk offline/abnormal/full, illegal access, low disk space, recording/snapshot error |
| Storage | 4 × SATA interfaces Up to 24 TB per HDD |
| Interfaces | 1×RJ45 Gigabit Ethernet 1×USB2.0 (front), 1×USB3.0 (rear) RS485: 1 Alarm In: 16 channels Alarm Out: 4 channels |
| PoE | 16 ports Max 30 W per port Total power: 150 W Standards: IEEE 802.3af/at |
| Power & Environment | Power supply: 100–240 V AC Power consumption (no HDD): ≤12 W Operating temperature: –10°C to +55°C Humidity: ≤90% non‑condensing |
| Dimensions & Weight | 400 × 369 × 74 mm Weight (no HDD): ≤4 kg |
| Certifications | CE, FCC, UL, RoHS, WEEE |
