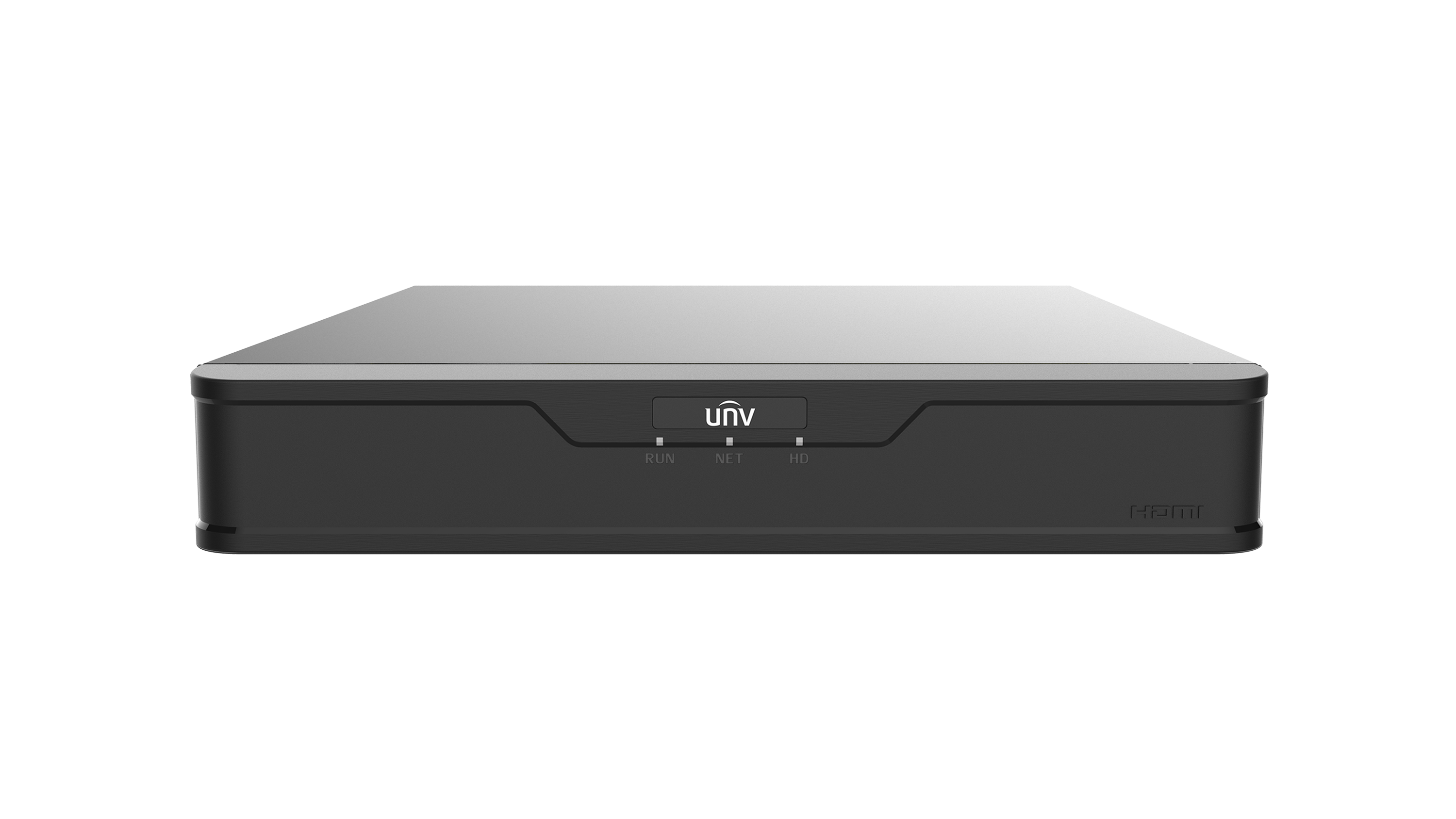

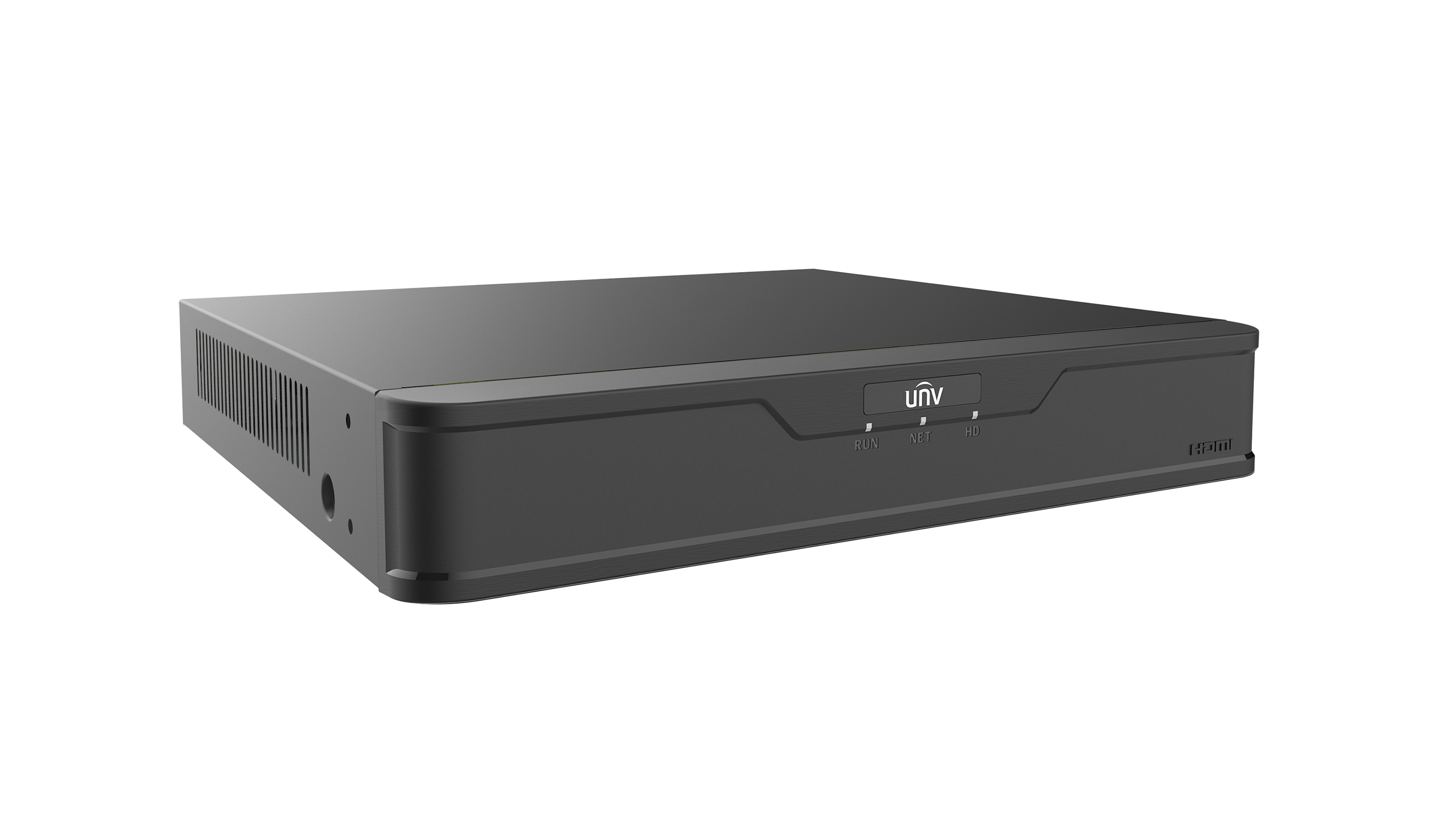

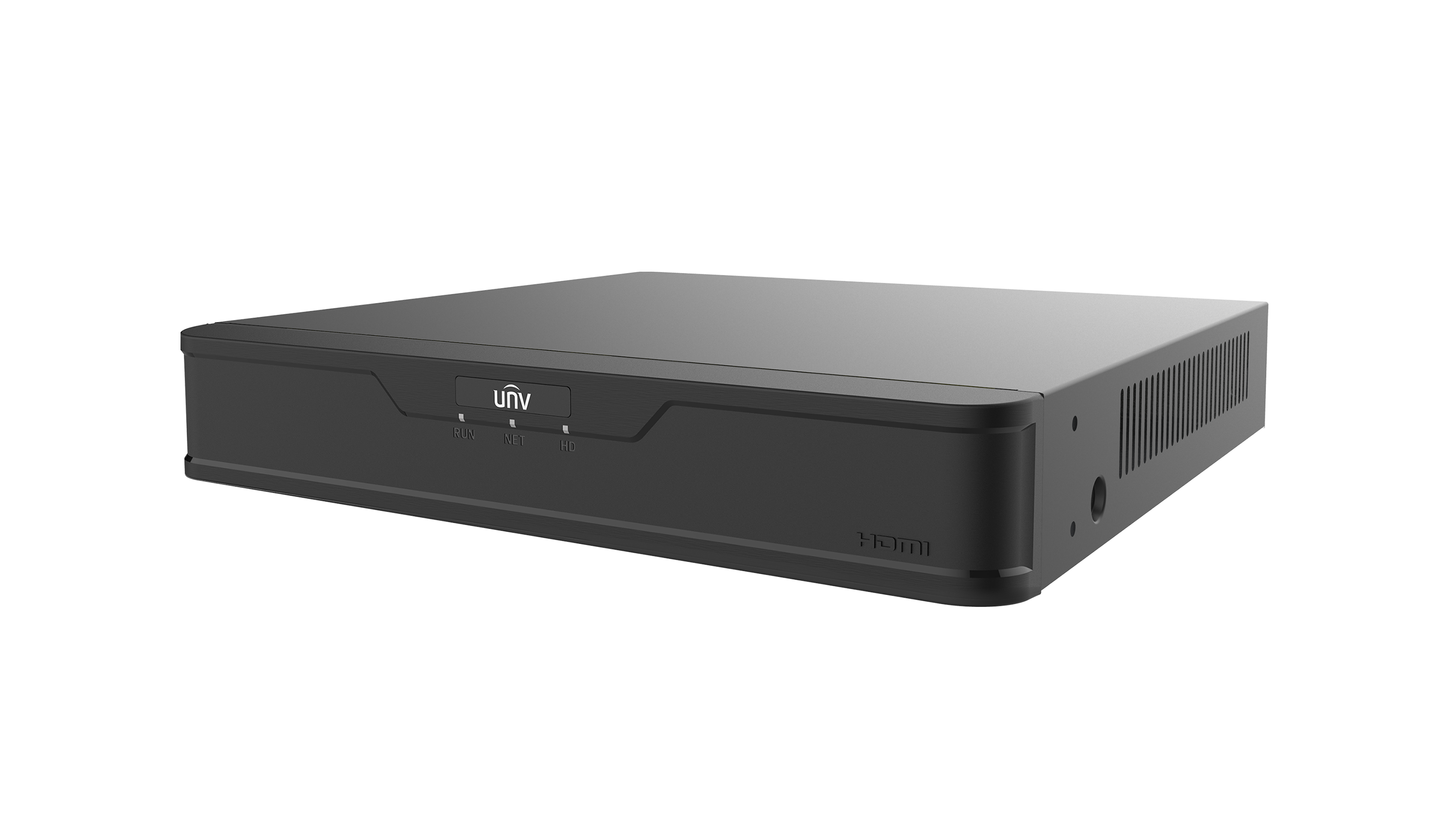

XVR up to 16 channels, 8CH BNC, Hybrid 8 CH IP, 1 HDD, 4K

• Support Ultra 265/H.265/H.264 video formats
• Support audio over coaxial cable (TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 8-channel BNC input
• Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols

Supported Analog Camera Types: Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
