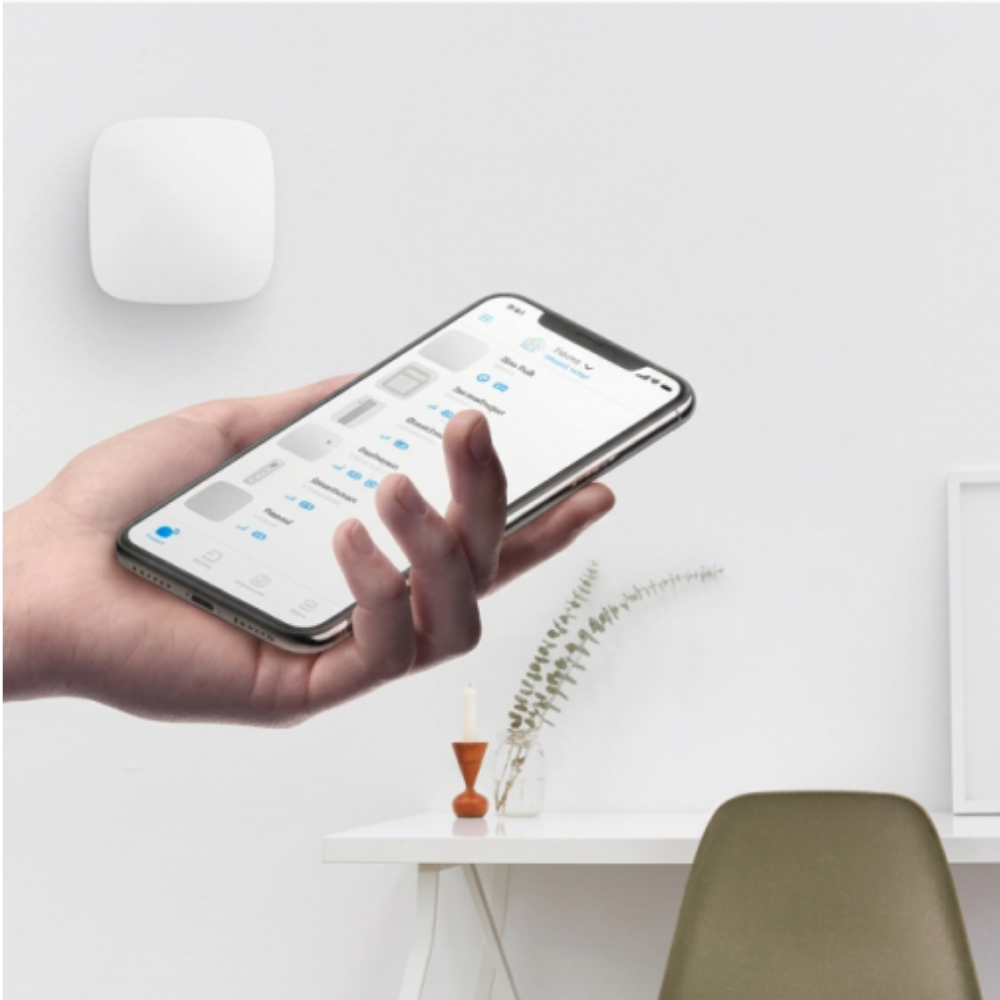

Ajax Hub (4G) Jeweller – Intelligent Security Control Panel with LTE & Ethernet (White, 9NA)

Product Overview

The Ajax Hub 4G Jeweller (SKU: 92212.259.WH3, 9NA region frequency) is the core central unit of the Ajax wireless security ecosystem, engineered to coordinate connected security, fire, leak detection, and home automation devices. Designed for reliable residential and light commercial deployments, it combines Fast Ethernet with a 4G (LTE) micro-SIM slot to ensure constant communication redundancy with end-users and Central Monitoring Stations (CMS) during Internet outages.

Operating over the encrypted Jeweller wireless radio protocol across open-space distances up to 2,000 meters (6,550 ft), the hub supervises up to 100 connected devices, delivering instant alarm notifications in just 0.15 seconds. Running on real-time OS Malevich, Hub 4G features an integrated 110-240 VAC mains power supply and an internal rechargeable backup battery providing up to 15 hours of autonomous power, housed in a clean matte white enclosure (Note: Standard Hub models do not support Wings protocol for MotionCam photo verification).

Key System Features & Functionality

• Dual Communication Redundancy: Combines a wired Ethernet (RJ-45) connection and a 4G (LTE/3G/2G) micro-SIM slot with automatic, seamless failover between channels.

• Large Device Capacity: Manages and coordinates up to 100 Ajax wireless devices, 9 security groups, and 50 individual users.

• Ultra-Fast Alarm Dispatch: Processes detector triggers and notifies users and CMS operators via push notifications, SMS, or phone calls in 0.15 seconds.

• Integrated 15-Hour Battery Backup: Built-in rechargeable Li-Ion battery keeps the entire security network online during electrical outages.

• Encrypted Jeweller RF Link: Proprietary two-way radio link operates up to 2,000 meters (6,550 ft) with continuous polling (from 12 s) and frequency hopping against jamming.

• Automation Scenarios: Supports up to 5 automated security scenarios (such as scheduled arming, flood shut-off via Relay/WallSwitch, or security lighting).

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting plate includes an integrated tamper switch that reports unlatching or dismounting immediately.
