12VDC 10A 9-Channel Power Supply Box (Non-UL)

Product Overview

The CP1209-10A is a centralized 9-channel DC power distribution box engineered to deliver reliable 12 VDC power to up to 9 security cameras, access control locks, or surveillance accessories. Supplying a total output capacity of 10 Amps (120 Watts), this metal-enclosed power supply replaces individual AC wall adapters with a single organized distribution point.

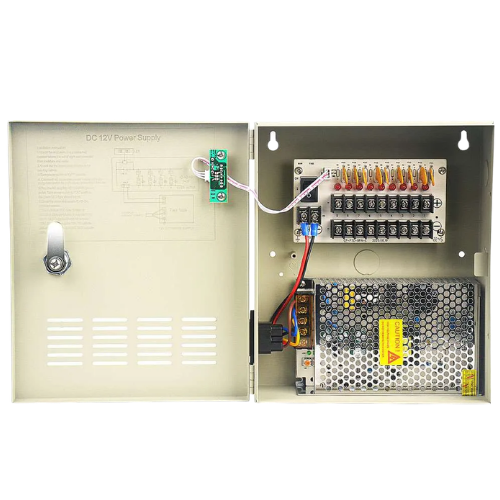

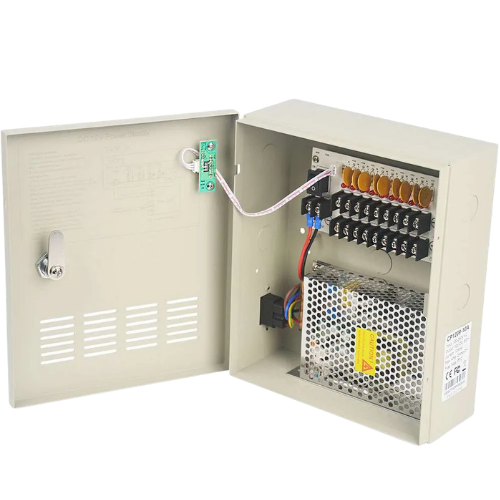

Housed in a heavy-duty, wall-mountable steel cabinet with a key lock, each of the 9 PTC fuse-protected channels prevents single-camera power faults from disrupting the rest of the system. An integrated LED status indicator panel gives real-time operational feedback for each output circuit, simplifying system troubleshooting during maintenance.

Key System Features & Functionality

• 9-Channel Centralized Power Distribution: Consolidates power routing for up to 9 surveillance cameras or access control devices into one locked enclosure.

• 10A Total Output Capacity (120W): Delivers up to 1.1 A per channel continuously, easily driving HD IR dome/bullet cameras and PTZ controllers.

• Auto-Reset PTC Fuse Protection: Individual self-resetting PTC fuses on each output terminal automatically isolate short circuits or current spikes without needing fuse replacements.

• Individual Channel LED Indicators: Front panel LED indicators provide instant visual status (Green = Active) for each output channel.

• Heavy-Duty Lockable Steel Cabinet: Rugged metal enclosure with door lock and key set guards internal wiring against unauthorized tampering and physical damage.
