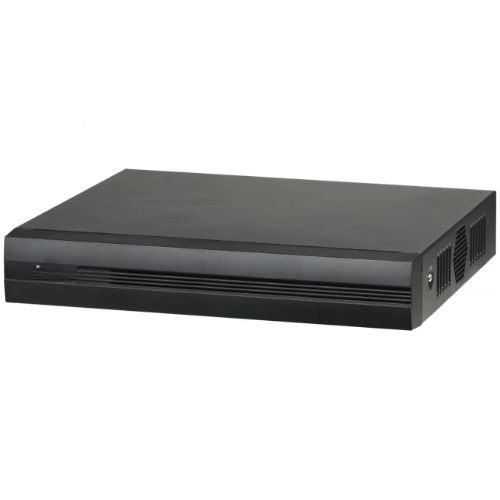

16-Channel WizSense Hybrid Digital Video Recorder

Product Overview

The XVR1B16-I-V2 is a high-efficiency 16-channel WizSense hybrid Digital Video Recorder (DVR) engineered for scalable video surveillance across commercial and residential facilities. Featuring artificial intelligence (AI) processing, it supports Smart Motion Detection Plus (SMD Plus) on up to 8 channels, accurately classifying human and vehicle targets to minimize false alarms caused by weather, foliage, or insects.

Designed for versatile multi-format integration, this hybrid recorder auto-detects penta-brid inputs (HDCVI, AHD, TVI, CVBS, and IP cameras up to 6MP). Utilizing Smart H.265+ video encoding and a single SATA interface supporting up to 16TB hard drive capacity, it provides reliable high-definition recording and long-term storage retention.

Key System Features & Functionality

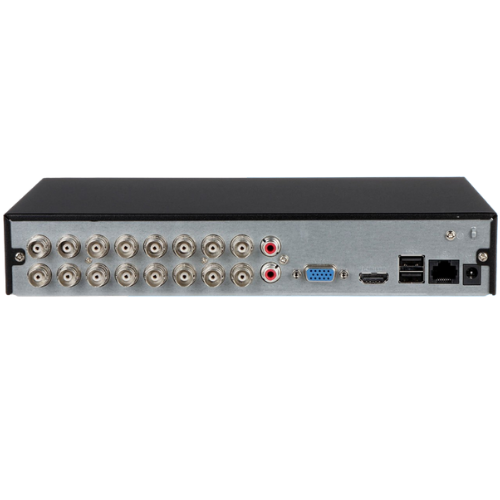

• 16-Channel Hybrid Penta-brid Input: Automatically detects HDCVI, AHD, TVI, and CVBS analog signals, plus supports up to 2 additional IP channels (up to 18 channels total, 6MP max per IP channel).

• AI Smart Motion Detection (SMD Plus): AI-powered motion analysis filters out non-target movements, categorizing triggers specifically as human or vehicle events across up to 8 channels.

• Smart H.265+ / H.264+ Encoding: Dual-stream compression reduces network transmission bandwidth and disk storage consumption by up to 70%.

• Up to 16TB SATA HDD Capacity: Single SATA port supports high-capacity internal hard drives up to 16TB for extended recording archives.

• Audio Over Coaxial Support: Transmits video, audio, and PTZ control signals over a single coaxial cable line.
