Paradox DCTXP2-RYH 2-Zone Wireless Door Contact (White, Without Batteries

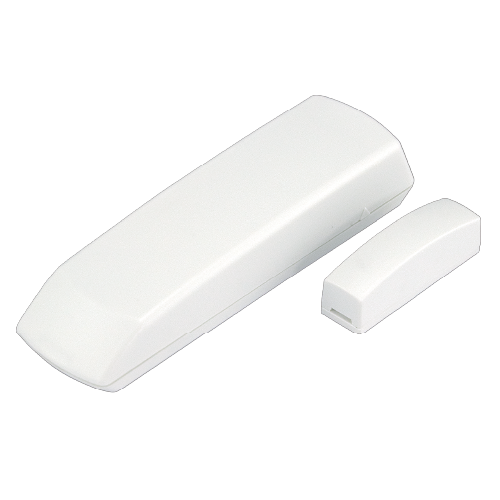

The Paradox DCTXP2-RYH is a versatile, high-reliability 2-zone wireless magnetic door/window contact designed for seamless integration with Paradox Magellan MG series consoles and Spectra SP / EVO control panels via wireless receivers. Engineered with dual-zone capabilities, this compact white transmitter features a high-sensitivity internal reed switch (Zone 1) and a hardwired universal transmitter input terminal (Zone 2). Each zone operates independently with its own distinct serial number, allowing a single device to simultaneously monitor an entry point magnet and an external N.O./N.C. security contact.

Designed for residential and commercial security applications, the DCTXP2-RYH provides robust signal transmission with a typical indoor range of up to 60 meters (200 feet). It incorporates advanced supervisory features, including cover anti-tamper detection, signal transmission status, and automatic low-battery monitoring. This specific "RYH" package variant is supplied in standard white housing without AAA batteries, offering security integrators a cost-effective inventory solution ready for custom power cell deployment.

Key System Features & Functionality

• Dual Independent Zones: Supports two distinct wireless zones simultaneously with separate serial numbers (Zone 1 internal reed switch + Zone 2 universal hardwired input).

• Universal Input Terminal: Accepts Normally Open (N.O.) or Normally Closed (N.C.) hardwired inputs to connect third-party devices like roller shutters or additional magnetic switches.

• Extended Wireless Range: Delivers strong RF transmission up to 60 m (200 ft) with Paradox MG5000/MG5050 panels and RTX3 expansion receivers.

• Full Supervision & Anti-Tamper: Constantly transmits supervisory signals, cover open/tamper alerts, and 12-hour automated low-battery diagnostics.

• High-Sensitivity Reed Switch: Includes a powerful magnet guaranteed to operate efficiently at a standard gap of up to 10 mm (0.4 in) on standard wood or aluminum frames.

• Integrator Pack Variant (RYH): Supplied in clean white ABS housing without AAA batteries, giving technicians flexibility in selecting battery chemistry.
