2U 15" Cantilever Vented Rack Shelf (1.2mm SPCC Steel, Sand-Finish Black)

Product Overview

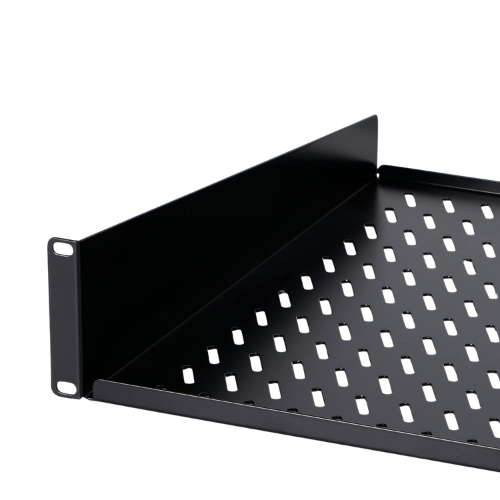

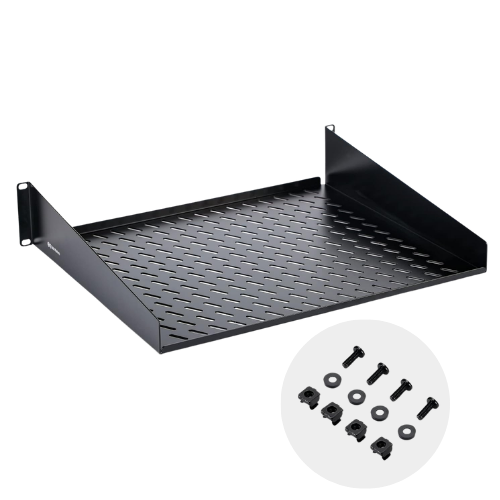

The 300710 2U Cantilever Rack Shelf is a medium-depth equipment support platform engineered to house non-rackmountable IT, audiovisual, and physical security hardware within standard 19-inch enclosures. Featuring an extended 15-inch (381 mm) usable depth combined with a rigid 2U rack profile, this shelf provides ample surface area for deeper desktop devices while maintaining high mechanical stability without requiring rear rail attachments.

Manufactured from 1.2 mm cold-rolled SPCC steel, the shelf is treated with a premium textured sand-finish black powder coat that offers exceptional scratch resistance, prevents fingerprint smudges, and minimizes light glare inside server rooms. The base incorporates an extensive slotted ventilation pattern designed to promote continuous natural convection, efficiently drawing heat away from unvented electronics such as desktop NVRs, multi-port PoE switches, power distribution units, and standalone access controllers. Compliant with EIA-310 standards, it installs into any standard 2-post relay rack or 4-post equipment cabinet.

Key Features

• Extended 15-Inch Depth (381 mm): Provides ample resting area for deeper non-rackmount electronics, power supplies, and recording units.

• 2U Reinforced Cantilever Design: Dual-height mounting flanges deliver superior vertical load resistance and prevent forward tilting under weight.

• 1.2mm High-Grade SPCC Steel: Sturdy cold-rolled steel construction delivers dependable structural rigidity and resists flexing under continuous duty.

• Textured Sand-Finish Black Coating: Architectural sand-finish powder coating resists scratching, abrasions, and fingerprints while matching commercial equipment racks.

• High-Flow Slotted Ventilation: Dense pattern of bottom ventilation slots enhances passive cooling and prevents hot-spot formation under resting hardware.

• Integrated Rear Retaining Lip: Raised rear flange keeps hardware firmly in place during cabling adjustments and prevents gear from slipping off the back.

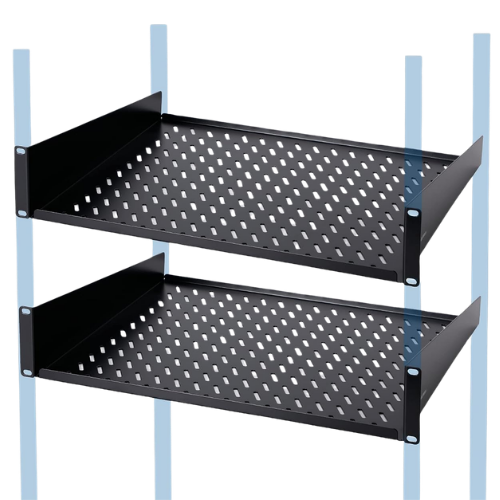

• Universal 19-Inch EIA-310 Fit: Compatible with standard 19-inch wall-mount cabinets, open-frame racks, and floor-standing server enclosures.

Compatible Devices

• 19-Inch Wall-Mount Cabinets, Swing-Out Wall Brackets, and Floor-Standing Server Enclosures

• 8-to-32 Channel Desktop Network Video Recorders (NVRs) and Hybrid DVRs

• Multi-Port Desktop PoE/PoE+ Network Switches, Routers, and Hardware Firewalls

• Access Control Power Supply Enclosures, Battery Backup Packs, and Multi-Door Panels

• Audio Amplifiers, Intercom Master Stations, and Media Conversion Chassis
