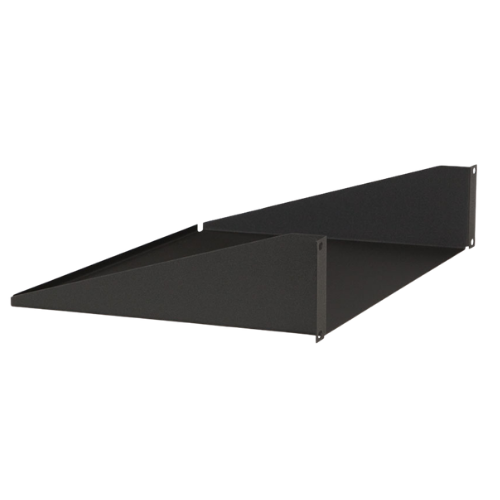

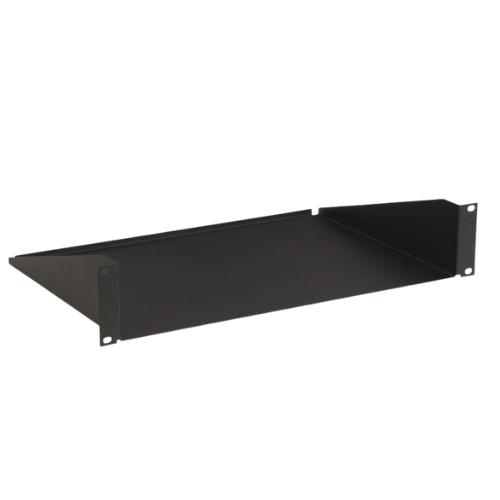

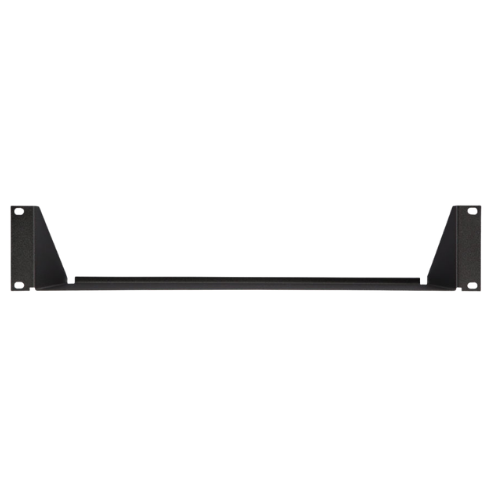

2U 12" Cantilever Vented Rack Shelf (1.5mm Heavy-Duty SPCC Steel)

Product Overview

The 300766 2U Cantilever Rack Shelf is a rugged, high-capacity equipment tray engineered to accommodate heavier non-rackmountable IT and security hardware inside standard 19-inch equipment racks and enclosures. Built with a 2U rack height and a 12-inch (305 mm) usable depth, this shelf offers substantially higher structural rigidity and weight capacity than standard 1U shelves, making it the ideal solution for deeper desktop equipment that requires a solid cantilever mount without relying on rear support rails.

Constructed from 1.5 mm heavy-duty cold-rolled commercial-grade SPCC steel, the shelf supports loads of up to 55 lbs (25 kg) without warping or bowing under continuous duty. The bottom tray surface features an integrated slotted ventilation pattern designed to optimize natural convective airflow, dissipating heat away from active electronics such as desktop NVRs, CCTV monitor bases, power backup modules, network audio amplifiers, and multi-port PoE injectors. Finished with an electrostatic matte black powder coat, it mounts cleanly onto any standard EIA-310 compliant 2-post or 4-post rack or wall-mount enclosure using standard M6 cage nuts and screws.

Key Features

• 2U Reinforced Cantilever Profile: Double-height (3.5") mounting ears provide superior mechanical leverage and vertical stability compared to 1U shelves.

• 12-Inch Extended Depth (305 mm): Accommodates deeper desktop switches, NVRs, firewalls, and industrial power distribution hardware.

• 1.5mm Heavy-Duty SPCC Steel: Fabricated from premium commercial cold-rolled steel, ensuring zero sagging and long-term structural durability.

• High Static Load Capacity (Up to 55 lbs / 25 kg): Sturdily supports heavier non-rackmount gear, battery packs, and audio-video equipment.

• Vented Bottom Base: Slotted perforations promote upward airflow and prevent heat buildup directly beneath resting devices.

• Rear Retaining Lip: Integrated rear flange stop keeps resting hardware safely positioned and prevents accidental slide-off during maintenance.

• Universal 19-Inch EIA-310 Compliance: Drops directly into standard 19-inch wall-mount cabinets, open-frame 2-post relay racks, and 4-post server enclosures.

Compatible Devices

• 19-Inch Wall-Mount Network Cabinets, Swing-Out Racks, and Floor-Standing Server Enclosures

• Non-Rackmount 4/8/16-Channel Desktop Network Video Recorders (NVRs) and DVRs

• Uninterruptible Power Supplies (UPS), Battery Packs, and Multi-Output DC Power Supply Boxes

• Commercial Desktop Network Switches, Routers, Firewalls, and Gateways

• Multi-Door Access Control Controllers (such as C2-260) and Auxiliary Relay Power Units

• AV Amplifiers, Intercom Master Stations, and Media Converters
