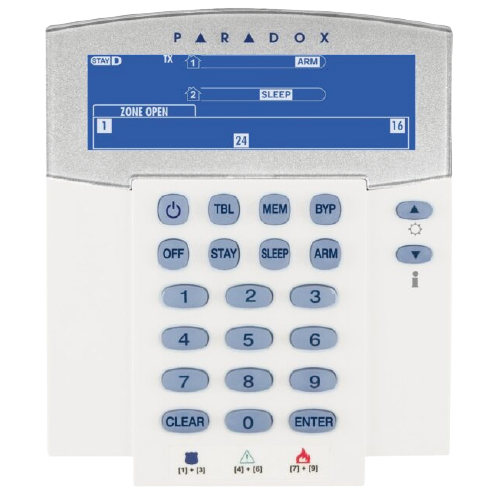

Paradox K38-T7W 32-Zone Wireless Fixed LCD Keypad

The Paradox K38-T7W (K38) is a fully wireless, battery-powered 32-zone fixed LCD keypad engineered to provide effortless control and real-time monitoring for Paradox Magellan and Spectra SP security systems. Operating on a 433 MHz RF transceiver frequency, it eliminates the need for hardwired bus cables, offering flexible installation anywhere near primary entryways, bedside locations, or office desks.

Featuring a clear fixed-icon LCD screen, the K38 displays real-time system status, partition states (Arm, Sleep, Stay, Disarm), zone trouble conditions, and active zone alarms across up to 32 zones. Built with Paradox’s patented StayD mode indicator, it provides 24/7 visual confirmation of continuous perimeter protection. Powered by two standard AA alkaline batteries (or an optional external 6 VDC power adapter), the keypad includes automated power-saving modes, adjustable backlighting, and built-in wall and cover tamper switches for complete sabotage detection.

Key System Features & Functionality

• 100% Wireless Operation: Built-in 433 MHz transceiver enables completely wireless installation without running communication wires to the main control panel.

• 32-Zone Fixed LCD Display: High-visibility LCD screen with fixed status icons displays real-time zone open/alarm states, trouble conditions, and partition status.

• StayD 24/7 Mode Indication: Dedicated screen icon confirms active StayD status, ensuring continuous perimeter safety while permitting safe movement.

• Flexible Power Options: Primary power provided by 2 × 1.5 V AA alkaline batteries, with support for an optional 6 VDC power adapter (PA6) as a main power source.

• Dual Tamper Sabotage Switch: Integrated cover opening and wall removal tamper switches transmit immediate sabotage alerts to the main alarm panel.

• In-Field Upgradable Firmware: Easily updated on-site using the 307USB interface module and Paradox InField software for lifetime feature compatibility.

Key Technical Specifications
