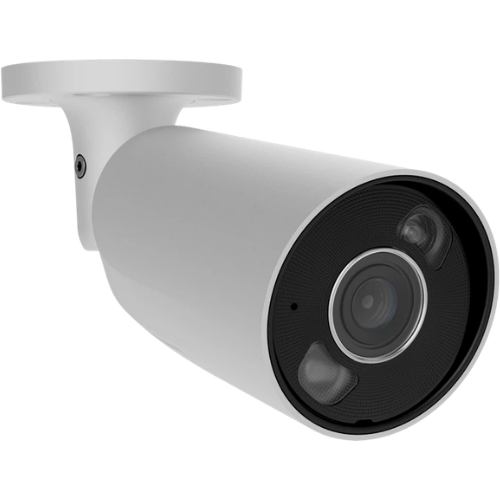

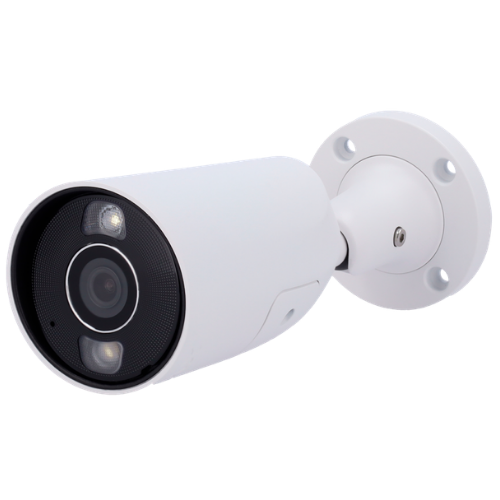

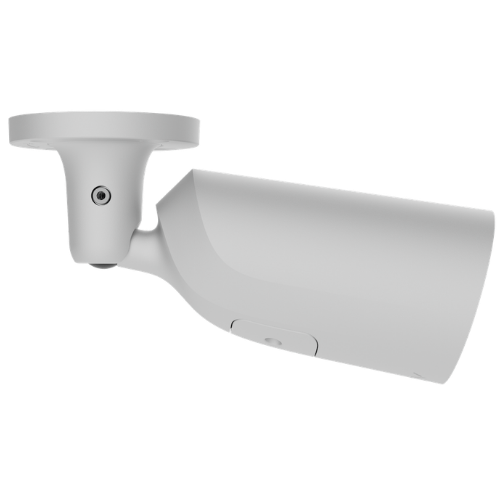

Ajax BulletCam HL (5 MP / 2.8 mm) – Smart IP Bullet Camera with Hybrid Lighting (White, ASP)

Product Overview

The Ajax BulletCam HL (5 Mp/2.8 mm) (SKU: 126253.217.WH1, ASP version) is an advanced outdoor and indoor smart IP bullet security camera equipped with Hybrid Light (HL) technology for 24/7 full-color situational awareness. Combining a high-definition 5 MP (2880 x 1620 px) CMOS sensor with a wide 2.8 mm focal length lens (110° FOV), it integrates both discreet Infrared (IR) illumination (up to 35 m) and a high-intensity White LED spotlight (up to 30 m). In smart mode, the camera remains in discrete IR night vision until onboard AI detects a human or vehicle, instantly switching on the white light to capture full-color evidence and deter intruders.

Powered by proprietary JetSparrow peer-to-peer transmission technology, BulletCam HL provides ultra-low latency live viewing, fast video wall scrubbing, and seamless archive navigation with end-to-end encryption. It features edge AI-powered object recognition (classifying humans, pets, and vehicles), True WDR (Wide Dynamic Range), an integrated digital microphone with G.722 audio encoding, and local storage via MicroSD up to 256 GB. Encased in a heavy-duty IP65 weatherproof aluminum and polycarbonate enclosure with an integrated 3-axis mounting bracket, it supports power via PoE (802.3af) or external 12 VDC in a clean matte white finish.

Key System Features & Functionality

• Dual Hybrid Lighting (HL) System: Features both smart Infrared (IR up to 35 m) and powerful warm White LED illumination (up to 30 m) with intelligent auto-switch to full-color mode upon AI target detection.

• High-Definition 5 MP Resolution: Captures clear, sharp video at 2880 x 1620 px @ 25 fps, ensuring reliable identification of faces, clothing colors, vehicle models, and license plates.

• Ultra-Wide 2.8 mm Optical Lens: Delivers a broad 110° horizontal viewing angle to cover wide perimeters, driveways, and entry zones without distortion.

• On-Device AI Object Classification: Edge artificial intelligence analyzes video in real time to categorize humans, pets, and vehicles, eliminating false motion triggers.

• JetSparrow High-Speed Video Protocol: Proprietary peer-to-peer transmission enables instantaneous live streaming and fluid archive scrubbing in the Ajax apps.

• True WDR & Multi-Exposure Processing: Hardware Wide Dynamic Range dynamically balances high-contrast scenes with intense backlighting or deep shadows.

• Built-in Digital Microphone: High-fidelity ambient audio capture with G.722 compression for synchronized audiovisual monitoring.

• Dual Power Flexibility (PoE / 12 VDC): Supports Power over Ethernet (PoE standard IEEE 802.3af Class 3) or external 12 VDC ±20% power input.

• Weatherproof IP65 Enclosure: Sealed, rugged aluminum housing operates reliably in extreme weather conditions from -25°C to +40°C.
