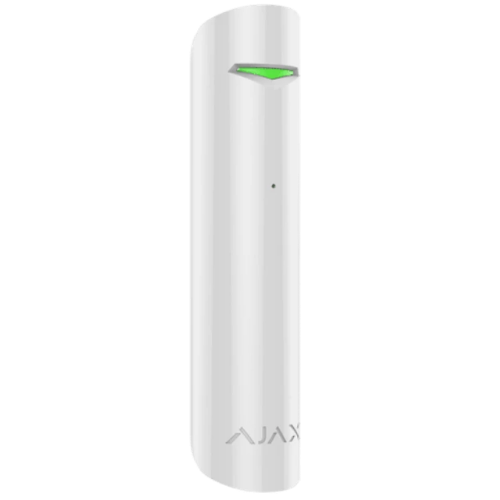

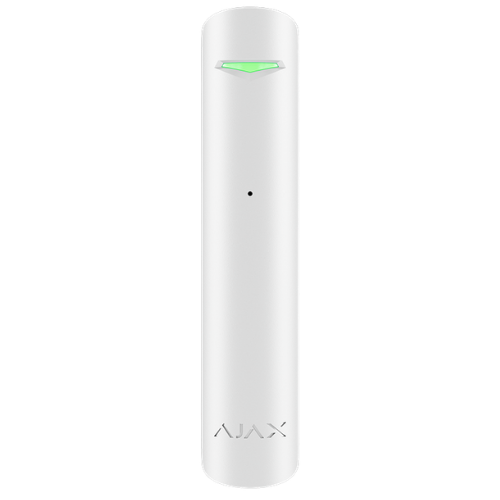

Ajax GlassProtect (Jeweller) – Wireless Acoustic Glass Break Detector (White, 9NA)

Product Overview

The Ajax GlassProtect is a miniature wireless acoustic glass break detector designed to protect windows, glass partitions, and display cases across a radius of up to 9 meters (29.5 ft). Using an electret microphone paired with the proprietary DualTone two-factor sound analysis algorithm, it filters out environmental noise (such as barking dogs, passing cars, and thunder) by registering the distinct low-frequency thud of a physical impact followed immediately by the high-frequency ringing sound of shattering glass.

Operating over the proprietary Jeweller wireless radio protocol across open-space distances up to 1,000 meters, GlassProtect delivers immediate alarm alerts in under 0.15 seconds. Equipped with an external wired contact input (NC) for connecting third-party perimeter contacts, Grade 2 certified anti-tamper protection, and a pre-installed CR123A battery providing up to 7 years of autonomous operation, it provides discreet perimeter glass security in a clean white casing.

Key System Features & Functionality

• DualTone Acoustic Glass Break Detection: Two-factor digital sound verification analyzes both the low-frequency impact thud and high-frequency glass shattering to eliminate false alarms.

• 9 m Detection Coverage: Wide 180° acoustic pickup angle covering multiple windows and glass panels up to 9 meters (29.5 ft) from the sensor.

• Jeweller Wireless Technology: Two-way encrypted radio communication operating across distances up to 1,000 meters (3,300 ft) open-space range with anti-jamming frequency hopping.

• External NC Contact Input: Onboard terminal block allows hardwired connection to third-party magnetic contacts or wired sensors.

• Up to 7 Years Battery Life: Powered by a pre-installed CR123A lithium battery with intelligent energy optimization.

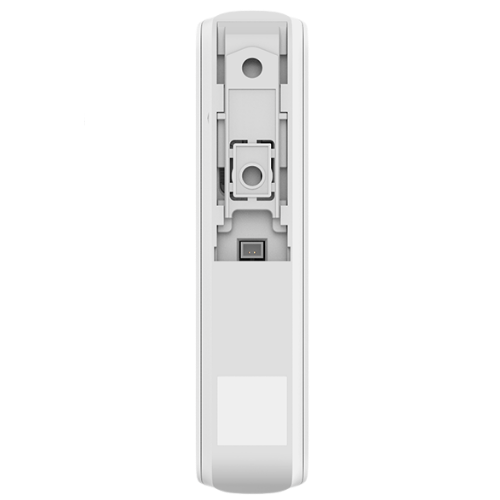

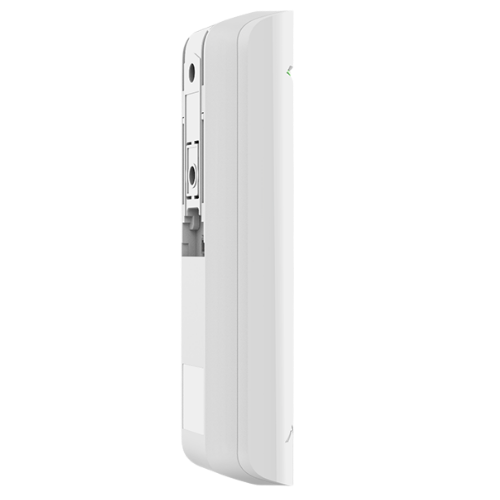

• Compact & Discreet Installation: Miniature cylindrical form factor mounts easily on walls or ceilings near glass openings using the included SmartBracket.
