Ajax Hub 2 (4G) Jeweller – Intelligent Security Control Panel with LTE & Photo Verification Support (White, 9NA/AUX)

Product Overview

The Ajax Hub 2 (4G) Jeweller (SKU: 44521.108.WH3, 9NA region frequency with AUX power terminal) is an advanced wireless security central control panel engineered to manage intrusion security, fire alarms, leak prevention, and home automation with full support for MotionCam visual alarm verification. Designed for residential, commercial, and enterprise deployments, Hub 2 (4G) combines a hardwired Fast Ethernet (RJ-45) connection with dual 4G/LTE micro-SIM slots to deliver fail-safe, multi-channel communication redundancy with end-users and Central Monitoring Stations (CMS).

Operating across two proprietary encrypted wireless radio protocols—Jeweller for instant alarm signals (0.15 s) and Wings for high-speed photo verification delivery across open spaces up to 2,000 meters (6,550 ft)—Hub 2 (4G) supervises up to 100 connected Ajax devices and 25 MotionCam detectors. Powered by real-time OS Malevich, it incorporates a built-in 110-240 VAC mains supply, an auxiliary low-voltage terminal interface (AUX), and an internal rechargeable backup battery providing up to 16 hours of autonomous power in a clean matte white finish.

Key System Features & Functionality

• Visual Alarm Photo Verification: Integrates the high-speed Wings radio protocol to receive and relay animated photo series from MotionCam detectors to verify alarms in under $9\text{ seconds}$.

• Triple High-Speed Communication Redundancy: Combines a wired Fast Ethernet (RJ-45) port with 2 x 4G (LTE/3G/2G) Micro-SIM slots for automatic, seamless carrier failover during broadband outages.

• Large Capacity Ecosystem: Coordinates up to 100 Ajax wireless devices, 25 MotionCam detectors, 9 security groups, and 50 individual users.

• Ultra-Fast Alarm Dispatch: Processes detector triggers and notifies users and CMS dispatchers via push notifications, SMS, or automated voice calls in 0.15 seconds.

• Integrated 16-Hour Battery Backup: Built-in rechargeable Li-Ion battery maintains full system supervision and security operations during mains electrical failures.

• Encrypted Long-Range Radio Link: Proprietary two-way Jeweller RF link operates up to 2,000 meters (6,550 ft) with continuous polling (from 12 s) and frequency-hopping anti-jamming defense.

• Smart Automation Scenarios: Supports up to 32 automated security and convenience scenarios (such as scheduled perimeter arming, flood shut-off via WaterStop, or automated lighting).

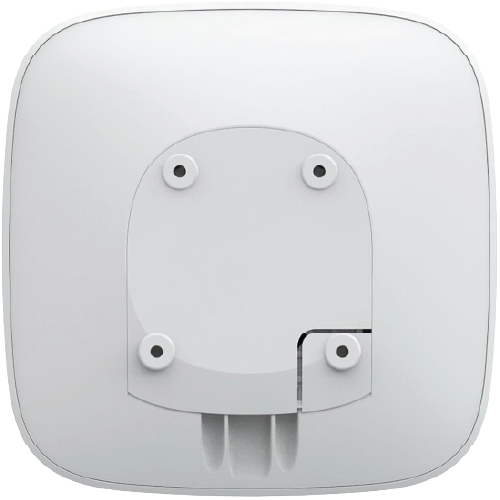

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that immediately alerts users and CMS dispatchers if the device is opened or detached from the wall.
