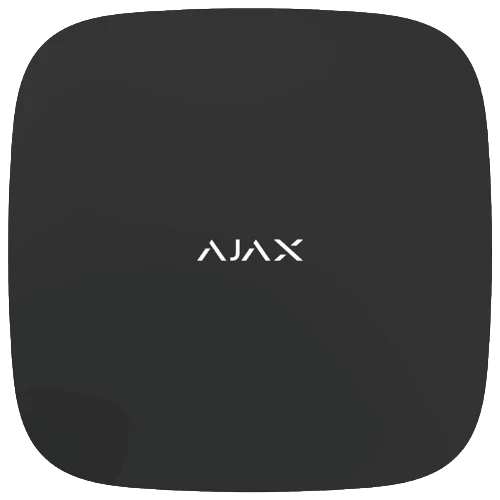

Ajax Hub 2 Plus (Jeweller) – Flagship Security Control Panel with 4G LTE, Wi-Fi, Ethernet & Photo Verification (Black, 9NA)

Product Overview

The Ajax Hub 2 Plus Jeweller (SKU: 44525.40.BL3, 9NA region frequency) is the flagship central control panel in the Ajax wireless security ecosystem, engineered for high-security commercial, industrial, and large-scale residential deployments. Delivering industry-leading connectivity redundancy, Hub 2 Plus integrates four independent communication channels: hardwired Fast Ethernet (RJ-45), built-in Wi-Fi (2.4 GHz / 802.11 b/g/n), and dual 4G (LTE) micro-SIM slots with automated, seamless failover to guarantee uninterrupted communication with users and Central Monitoring Stations (CMS).

Operating across two proprietary encrypted wireless radio protocols—Jeweller for instant alarm signaling (0.15 s) and Wings for high-speed transmission of photographic alarm verification series—Hub 2 Plus manages up to 200 connected Ajax devices, 100 MotionCam detectors, 200 users, and 25 security groups across open-space distances up to 2,000 meters (6,550 ft). Running on real-time OS Malevich, it features an integrated 110-240 VAC mains power supply, support for up to 64 automation scenarios, and an internal rechargeable backup battery delivering up to 15 hours of autonomous power in a matte black finish.

Key System Features & Functionality

• Quadruple Communication Redundancy: Features 4 independent transmission channels—Ethernet (RJ-45), Wi-Fi, and 2 x 4G (LTE/3G/2G) Micro-SIM slots—with instantaneous channel failover.

• Flagship Device Capacity: Manages and coordinates up to 200 Ajax wireless devices, 100 MotionCam detectors, 25 security groups, and 200 individual users.

• Visual Alarm Photo Verification: Dedicated Wings radio protocol receives and relays animated photo verification series from indoor and outdoor MotionCam detectors to verify alarms in under 9 seconds.

• Advanced Automation Scenarios: Supports up to 64 automated security and smart control scenarios (scheduled arming, WaterStop flood cut-off, automated lighting, access barriers, and HVAC regulation).

• Multi-Extender Scalability: Supports up to 5 ReX 2 / ReX range extenders, scaling system coverage across vast multi-story commercial facilities up to 35 km2.

• Integrated 15-Hour Battery Backup: Built-in rechargeable Li-Ion battery keeps the entire security network online during mains power blackouts.

• Encrypted Long-Range Radio Link: Proprietary two-way Jeweller RF link operates up to 2,000 meters (6,550 ft) with continuous polling (from 12 s) and frequency-hopping anti-jamming defense.

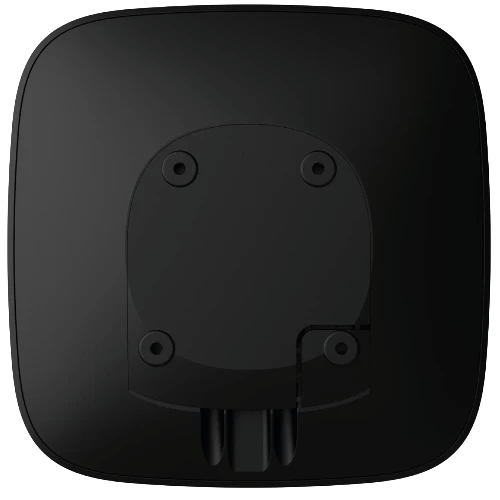

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that reports unauthorized unlatching or dismounting immediately.
