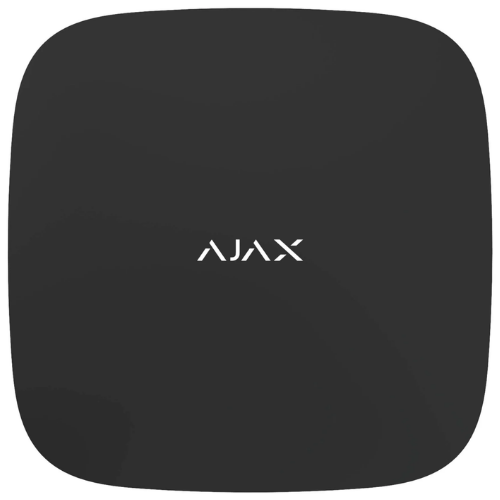

Ajax Hub 2 (Jeweller) – Intelligent Security Control Panel with Photo Verification Support (Black, 9NA)

Product Overview

The Ajax Hub 2 Jeweller (SKU: 44518.40.BL3, 9NA region frequency) is an advanced central security control panel engineered to manage intrusion security, fire protection, flood prevention, and automation with full support for MotionCam visual alarm verification. Designed for residential, commercial, and enterprise applications, Hub 2 combines a wired Fast Ethernet port with dual 2G micro-SIM slots to guarantee fail-safe communication redundancy with end-users and Central Monitoring Stations (CMS).

Operating across two proprietary encrypted radio protocols—Jeweller for instant alarm transmission (0.15 s) and Wings for high-speed photo verification series delivery—Hub 2 supervises up to 100 connected devices across distances up to 2,000 meters (6,550 ft). Running on real-time OS Malevich, it features an integrated 110-240 VAC mains power supply and an internal rechargeable backup battery delivering up to 16 hours of autonomous runtime in a matte black finish.

Key System Features & Functionality

• Visual Alarm Verification Support: Employs the proprietary Wings radio protocol to receive and relay animated photo series from MotionCam detectors to verify alarms in under 9 seconds.

• Triple Communication Redundancy: Combines a wired Ethernet (RJ-45) port with 2 x 2G Micro-SIM slots for automatic, seamless carrier failover during network outages.

• Large Capacity Ecosystem: Coordinates up to 100 Ajax wireless devices, 25 MotionCam detectors, 9 security groups, and 50 individual users.

• Ultra-Fast Alarm Dispatch: Processes detector triggers and notifies users and CMS dispatchers via push notifications, SMS, or phone calls in 0.15 seconds.

• Integrated 16-Hour Battery Backup: Built-in rechargeable Li-Ion battery keeps the entire security infrastructure active during mains electrical failures.

• Encrypted Long-Range Radio Link: Proprietary two-way Jeweller RF link operates up to 2,000 meters (6,550 ft) with continuous pinging (from 12 s) and frequency hopping anti-jamming defense.

• Smart Automation Scenarios: Supports up to 32 automated security and convenience scenarios (such as scheduled perimeter arming, flood shut-off via WaterStop, or automated lighting).

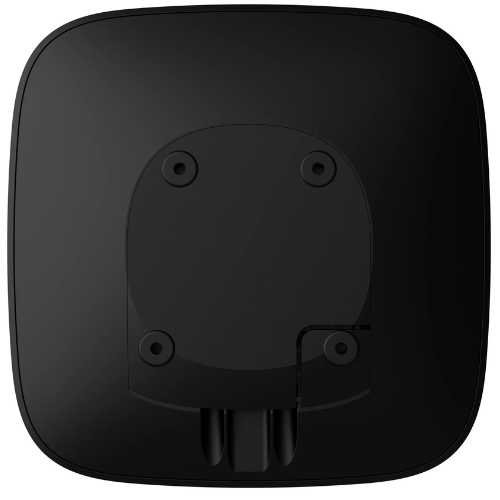

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that reports unauthorized unlatching or dismounting immediately.
