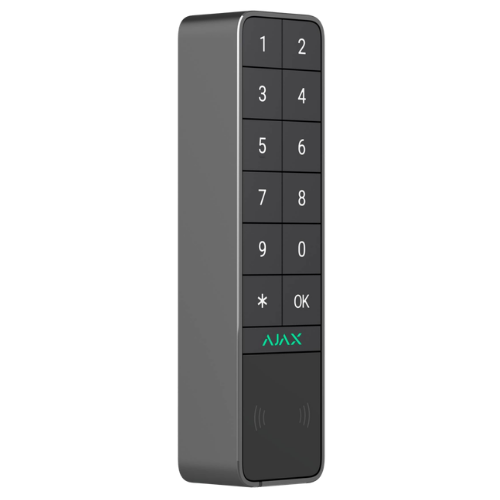

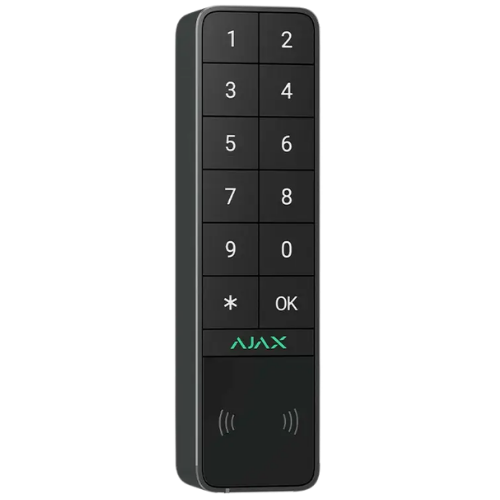

Ajax KeyPad Outdoor (Jeweller) – Wireless Outdoor Touch Keypad with Contactless Card & Tag Reader (Black, 9NA)

Product Overview

The Ajax KeyPad Outdoor Jeweller (SKU: 99974.286.BL3, 9NA region frequency) is a rugged, weatherproof wireless capacitive touch security keypad engineered specifically for exterior perimeter access control. Built to withstand extreme weather conditions—including driving rain, snow, freezing temperatures, and direct UV exposure—it allows users to arm, disarm, activate Night Mode, or manage security groups at entrance gates, outdoor barriers, garages, and external building entryways using personal passcodes, contactless Ajax Pass cards, or Ajax Tag key fobs.

Operating over the encrypted Jeweller wireless radio protocol across open-space distances up to 1,700 meters (5,500 ft), KeyPad Outdoor features bank-grade DESFire EV1/EV2 contactless RFID encryption, silent duress alarm signaling, and brute-force passcode lockout defense. Engineered with an IP65 weather-resistant and IK-rated enclosure, it operates on pre-installed lithium/alkaline batteries providing up to 4.5 years of autonomous battery life (with optional support for external 12 VDC auxiliary power) in a sleek matte black finish.

Key System Features & Functionality

• IP65 Weatherproof Exterior Architecture: Sealed, UV-resistant housing operates reliably in extreme temperatures from -25°C to +60°C (-13°F to +140°F), resisting heavy rain, moisture, and dust.

• Contactless Access via Pass & Tag: Built-in RFID reader supports MIFARE DESFire EV1/EV2 cards and key fobs with 128-bit encryption for quick, touchless arming and disarming without entering a code.

• Capacitive Touchpad with Backlit Keys: High-sensitivity capacitive buttons with automatic backlighting and status LEDs ensure effortless operation in complete darkness.

• Duress & Panic Emergency Signaling: Enables users to disarm the system under coercion using a covert duress code that dispatches a silent distress alarm directly to the Central Monitoring Station (CMS).

• Dual Power Flexibility: Operates completely wire-free for up to 4.5 years on pre-installed AA batteries or connects to an external 12 VDC auxiliary power supply.

• Brute-Force Passcode Lockout: Automatically disables code entry and alerts monitoring operators if repeated invalid attempts or unauthorized tags are detected.

• Multi-Tier Anti-Sabotage Defense: SmartBracket mounting base includes an integrated tamper switch that reports unlatching or dismounting immediately to the Ajax app and CMS.
