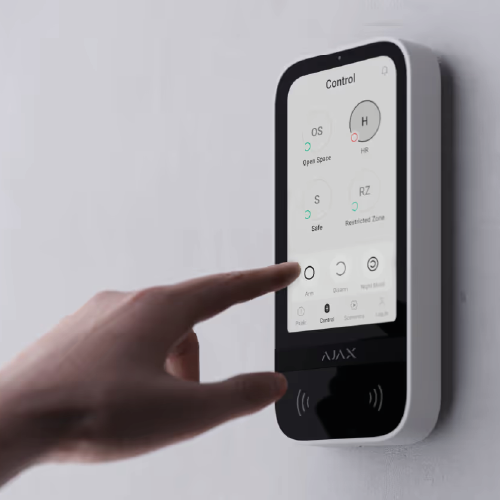

Ajax KeyPad TouchScreen (Jeweller) – Wireless Touchscreen Keypad with RFID, Bluetooth & Multi-Group Management (White, 9NA)

Product Overview

The Ajax KeyPad TouchScreen Jeweller (SKU: 51906.83.WH3, 9NA region frequency) is an advanced wireless security control console featuring a brilliant 5-inch IPS touchscreen display. Engineered to provide intuitive management of complex residential, commercial, and enterprise systems, it unifies system status, multi-group control, and automation management into an interactive interface mirroring the native Ajax mobile app.

The keypad provides four flexible authentication methods: smartphones via Bluetooth (BLE), contactless Ajax Pass cards and Ajax Tag key fobs (DESFire EV1/EV2 encryption), and personal/duress access codes. Operating over the encrypted Jeweller wireless radio protocol across open-space distances up to 1,700 meters (5,500 ft), KeyPad TouchScreen operates for up to 1.5 years on pre-installed AA batteries (with optional support for external 10.5-14 VDC auxiliary power) in a clean matte white finish.

Key System Features & Functionality

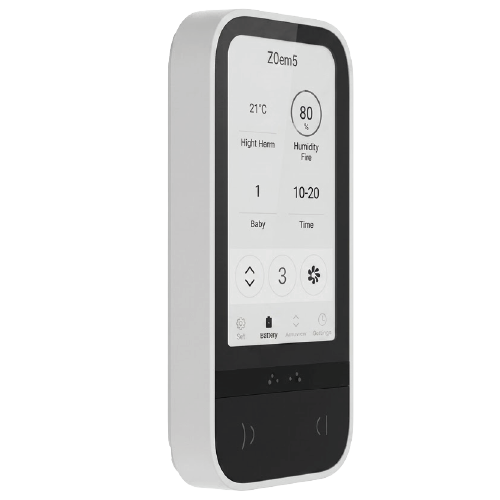

• 5-Inch IPS Color Touch Display: High-resolution (480 x 854 px) capacitive touchscreen interface with automatic brightness adjustment and auto-wake approaching detection.

• 4 Flexible Authentication Methods: Supports contactless Ajax Pass cards, Ajax Tag fobs, Bluetooth Low Energy (BLE) smartphone authorization, and multi-user passcodes.

• Comprehensive Group & Security Management: Manage up to 6 distinct security groups simultaneously directly from the main interactive screen.

• Duress & Silent Emergency Signaling: Supports dedicated duress codes and emergency panic buttons on-screen to silently alert the Central Monitoring Station (CMS).

• Dual Power Flexibility: Operates wire-free for up to 1.5 years on 6 pre-installed AA batteries or connects to an external 10.5-14 VDC auxiliary power line for always-on screen backlighting.

• Encrypted Jeweller RF Link: Two-way encrypted radio communication operating up to 1,700 meters (5,500 ft) with continuous supervision and frequency hopping against jamming.

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that reports unlatching or dismounting immediately.
