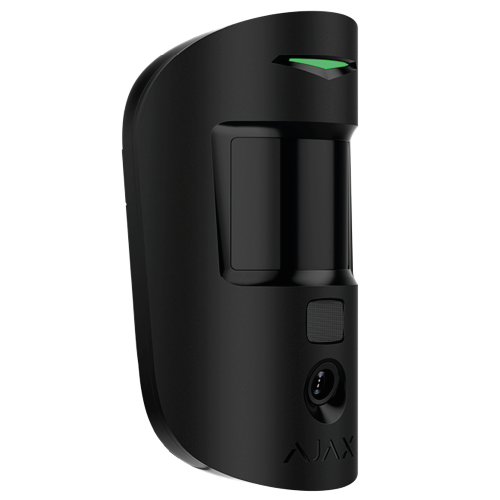

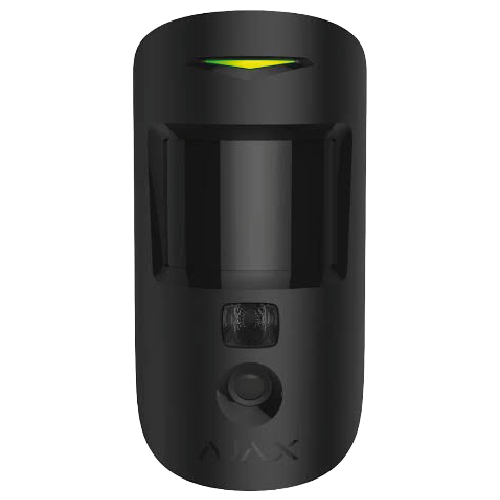

Ajax MotionCam (Jeweller) – Wireless PIR Motion Detector with Visual Alarm Verification Camera (Black, 9NA)

Product Overview

The Ajax MotionCam Jeweller is an advanced indoor wireless PIR motion detector equipped with a built-in camera for fast visual alarm verification. Engineered to eliminate false alarms and provide situational clarity during intrusion events, MotionCam captures an animated series of 1 to 5 photos the instant motion is detected and transmits them to users and Central Monitoring Stations (CMS) in under 9 seconds.

Operating with two distinct encrypted radio protocols—Jeweller for instant alarm transmission (0.15 s) and Wings for high-speed image delivery across distances up to 1,700 meters (5,500 ft)—the sensor prioritizes user privacy by activating the camera strictly upon alarm triggers (no on-demand streaming or continuous surveillance). Featuring advanced SmartDetect digital algorithms and pet immunity for animals up to 20 kg (44 lb), it runs on pre-installed CR123A lithium batteries providing up to 4 years of autonomous battery life in a matte black finish.

Key System Features & Functionality

• Visual Alarm Verification in <9 Seconds: Captures a burst of high-resolution photos (up to 640 x 480 px) upon intrusion detection to confirm threats immediately and prevent false police dispatches.

• Dual Radio Protocol Architecture: Utilizes Jeweller for lightning-fast alarm delivery ($0.15\text{ s}$) and the high-speed Wings radio protocol for transmitting photo series over long distances.

• Zero Privacy Invasion: Built-in camera activates exclusively when an alarm is triggered in armed mode; it does not support remote live viewing, on-demand photos, or background recording.

• Intelligent Pet Immunity: SmartDetect digital processing algorithms ignore pets weighing up to 20 kg (44 lb) and measuring under 50 cm (19.5 in) in height.

• Integrated Night Vision: Built-in infrared (IR) illumination allows the sensor to capture clear visual evidence even in total darkness.

• Long Wireless Reach: Secure two-way encrypted communication up to 1,700 meters (5,500 ft) in open space with frequency hopping anti-jamming protection.

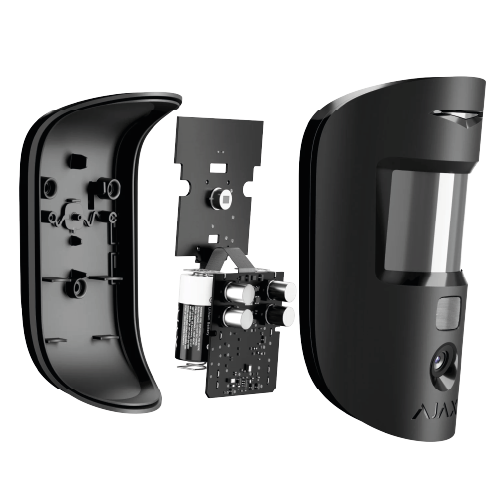

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base features an integrated tamper switch that reports unlatching or dismounting immediately to the Ajax app and CMS.
