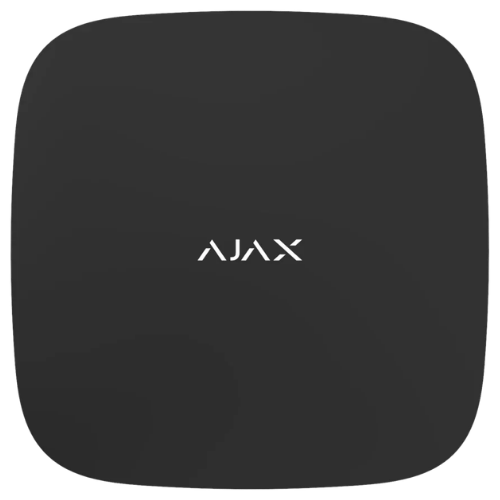

Ajax ReX 2 (Jeweller) – Wireless Radio Signal Range Extender with Visual Alarm Verification Support (Black, 9NA)

Product Overview

The Ajax ReX 2 Jeweller (SKU: 35535.106.BL3, 9NA region frequency) is an advanced radio signal range extender designed to expand the coverage area of Ajax security systems while providing full transmission support for MotionCam visual alarm verification. Engineered for expansive multi-story commercial facilities, office buildings, large warehouses, and residential estates, ReX 2 extends the communication range of connected devices up to an additional 1,700 meters (5,500 ft) over the air and supports Ethernet wired backhaul to transmit alarms and photos through thick concrete walls and metal structures.

Operating over the encrypted Jeweller (events and alarms) and Wings (photo series transmission) wireless protocols, ReX 2 relays alarm signals in 0.3 seconds and delivers the first verification snapshot in as little as 10 seconds. Equipped with an integrated 110-240 VAC mains power supply and an internal lithium-ion backup battery offering up to 38 hours of autonomous operation, it features Grade 2 anti-tamper security in a matte black casing.

Key System Features & Functionality

• MotionCam Photo Verification Support: Equipped with the high-speed Wings radio protocol to relay visual alarm photo series from MotionCam and MotionCam Outdoor detectors to the hub and CMS.

• Dual Communication Channels (RF & Ethernet): Transmits data wirelessly via Jeweller/Wings or through a local area network (Ethernet cable) to bypass radio-blocking concrete walls, underground basements, and metal structures.

• Autonomous Local Device Management: Synchronizes and coordinates connected sensors locally, maintaining system functionality and sounding sirens even during total communication loss with the Hub.

• Rapid Alarm & Photo Transmission: Relays critical alarm triggers in 0.3 seconds and delivers photo verification series in under 10-18 seconds.

• Integrated 38-Hour Backup Battery: Internal rechargeable lithium-ion battery keeps connected security peripherals online during mains power outages.

• Multi-Extender Scalability: Connect up to 5 ReX 2 extenders per compatible Ajax Hub (Hub 2, Hub 2 Plus), extending total system coverage across vast properties up to 35 km2.

• Grade 2 Sabotage & Tamper Defense: SmartBracket mounting base includes an integrated tamper switch that immediately alerts users and CMS dispatchers if the device is unlatched or detached from the wall.
