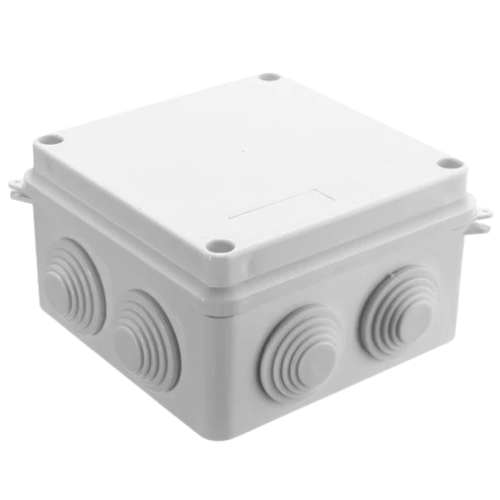

Waterproof Plastic Junction Box 100×100×70mm (4"×4"×2.75", IP65/IP66, White/Gray)

Product Overview

The BOX-05X Waterproof Plastic Junction Box is a compact, weather-sealed electrical and signal enclosure engineered to protect sensitive wire splices, power connections, and video baluns in indoor and outdoor security installations. Featuring nominal exterior dimensions of 100 × 100 × 70 mm (approximately 4" × 4" × 2.75"), this enclosure provides a secure, non-conductive housing that isolates connections from rain, moisture, direct hose spray, dust, and environmental contamination.

Molded from high-impact, UV-stabilized ABS/polycarbonate engineering plastic, the BOX-05X features a continuous recessed silicone/rubber perimeter sealing gasket paired with captive stainless steel or polymer cover screws. Designed to serve as a reliable camera mounting base or field splice enclosure, it offers ample internal cavity space to conceal bulky camera pigtails, RJ45 modular jacks, 12V DC power plugs, and passive video baluns. Its rugged, rust-free housing makes it suitable for perimeter building walls, outdoor fence posts, parking garages, and humid industrial environments.

✅ Key Features

• Compact 100 × 100 × 70 mm Footprint: Ample internal depth to conceal camera pigtails, DC plugs, and RJ45 modular connectors without crushing cables.

• IP65/IP66 Weatherproof Sealing: Continuous perimeter elastic gasket ensures a watertight, dust-tight seal against heavy rain, irrigation spray, and fine dust ingress.

• High-Impact Engineering Plastic: Fabricated from durable ABS/PC thermoplastic that resists corrosion, rust, chemical exposure, and UV degradation.

• Surface Camera Mount Compatible: Flat reinforced front lid serves as a stable base for mounting bullet cameras, compact dome bases, or sensor brackets.

• Corrosion-Proof Enclosure Screws: Four corner captive sealing screws ensure even gasket compression and will not rust or seize over time.

• Multiple Cable Pass-Through Options: Clean sides allow drilling or punching of standard trade-size holes for PG cable glands, M-series glands, or PVC conduits.

• Internal Component Standoffs: Integrated molded screw bosses on the internal base plate accommodate small circuit boards, DIN rail segments, or terminal blocks.

📸 Compatible Devices

• IP and HD-Analog Bullet Security Cameras and Turret/Dome Base Rings

• Passive Video Baluns, BNC Pigtails, and 12V DC Power Jack Pigtails

• RJ45 Modular Plugs, Keystone Couplers, and Inline Splice Connectors

• 2-Wire / 3-Wire Lever Wire Connectors (WAGO style) and Screw Terminal Strips

• Outdoor PIR Motion Detectors, Photocell Switches, and Doorbell Modules

• Standard PG9, PG11, PG13.5, and M16/M20 Waterproof Cable Glands
