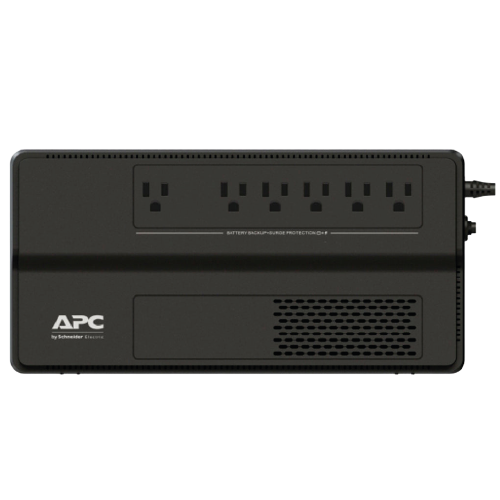

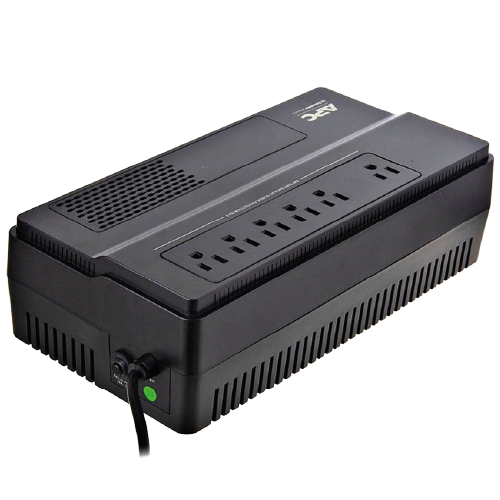

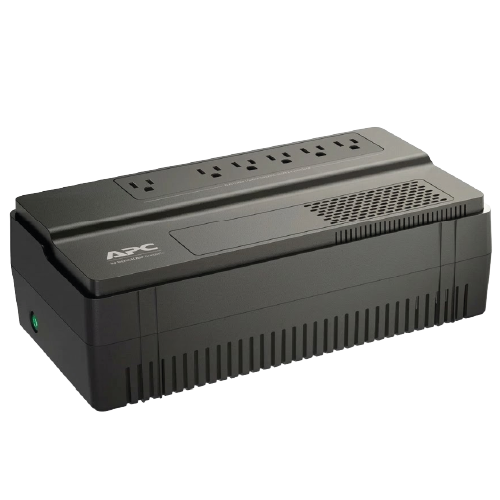

APC Easy UPS BV 1000VA / 600W Line-Interactive Battery Backup 120V (Boost AVR Voltage Regulation, 6 NEMA 5-15R Outlets, Wall-Mount Keyholes, Cold-Start Function, Black)

Product Overview

The BV1000 (Easy UPS BV Series, model BV1000-LM) is a high-capacity commercial line-interactive Uninterruptible Power Supply (UPS) manufactured by APC by Schneider Electric. Purpose-built for multi-channel video surveillance systems (8/16/32-channel NVRs, DVRs, XVRs), centralized CCTV power distribution boxes, network switches, enterprise Wi-Fi routers, point-of-sale systems, and high-performance workstations, this compact power system delivers clean, continuous battery power backup and active voltage conditioning to maintain continuous uptime during complete electrical blackouts, utility sags, and brownouts.

Operating on standard 120V AC (50/60 Hz) electrical lines, the BV1000 delivers an expanded power output of 1000VA / 600 Watts. Featuring Automatic Voltage Regulation (AVR) with Boost technology, it dynamically corrects incoming under-voltages without discharging the internal battery, preserving maximum battery reserves for sudden power failures. The top deck includes 6 battery backup and surge-protected NEMA 5-15R receptacles, arranged with wide transformer spacing to plug in bulky DC power adapters without blocking neighboring sockets. Featuring a driverless cold-start function, multi-tone audible diagnostics, an LED status indicator, and rear keyhole cutouts for wall mounting, the BV1000 provides high-density power reliability in a space-conscious chassis.

Key System Features & Functionality

• Line-Interactive Topology with Boost AVR: Corrects low-voltage conditions and brownouts automatically, extending battery life by keeping the unit off battery mode during routine grid fluctuations.

• 1000VA / 600W Robust Capacity: Handles heavier surveillance loads, supporting multi-drive NVRs, network switches, and monitoring displays simultaneously.

• 6 Battery Backup & Surge Protected Outlets: Every NEMA 5-15R socket provides dual protection: emergency battery power during blackouts and continuous surge suppression.

• Transformer-Spaced Receptacle Layout: Generous spacing between outlets accommodates multiple wide AC/DC transformer plugs without port obstruction.

• Cold-Start Functionality: Allows operators to boot up connected surveillance and network gear directly from the UPS battery during a complete absence of utility grid power.

• Intelligent Battery Management: Microprocessor-controlled charging cycle protects battery chemistry, accelerates recharge times, and preserves overall service life.

• Audible & Visual Diagnostic Indicators: Features a front-panel LED for AC/battery status and distinctive audio alerts for battery operation, low battery, and continuous overload conditions.

• Wall-Mount Keyhole Cutouts: Integrated rear slots allow clean wall mounting inside telecom closets, structured cabling cabinets, or beneath monitoring workstations.
