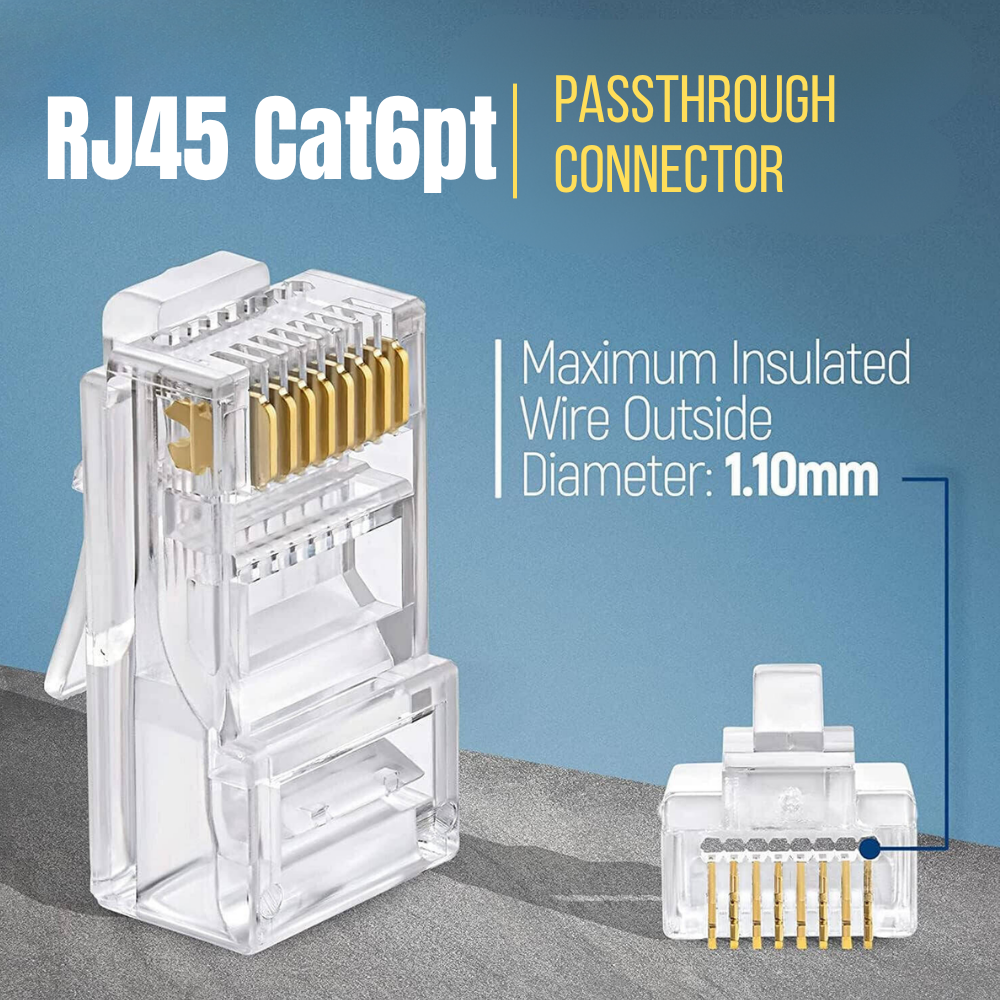

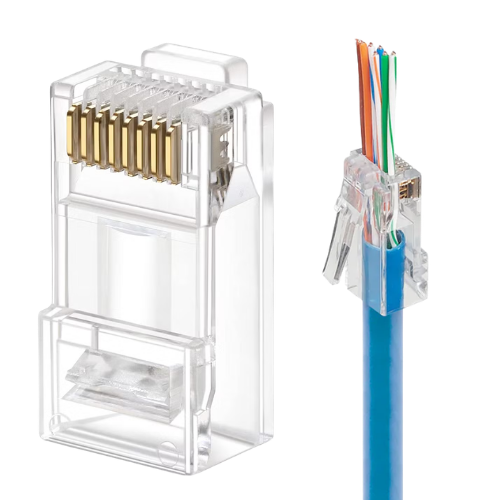

CC5900-CAT6PT Unshielded Cat6 RJ45 Pass-Through Modular Plugs

The CC5900-CAT6PT is a high-performance, unshielded (UTP) Cat6 RJ45 pass-through modular connector designed for quick, error-free field terminations of Category 6 twisted-pair Ethernet cables. Engineered for professional network installers, CCTV technicians, and structured cabling projects, the pass-through design allows individual wire conductors to feed completely through the front face of the plug prior to crimping and trimming.

By allowing direct visual verification of T568A or T568B wire pinouts before crimping, the CC5900-CAT6PT minimizes termination mistakes, reduces signal crosstalk, and ensures solid electrical contact with thicker Cat6 conductors. Featuring 50-micron gold-plated 3-prong contacts, it supports high-speed Gigabit and 10-Gigabit Ethernet networks (250 MHz / 1 Gbps–10 Gbps up to 55m), IP surveillance systems, and high-power PoE/PoE+ applications.

Key System Features & Functionality

• Pass-Through Wire Design: Wire conductors feed completely through the nose of the connector, enabling installers to verify T568A/T568B color-code alignment before crimping.

• Minimized Near-End Crosstalk (NEXT): Enables the outer cable jacket to seat deep inside the connector body, keeping wire pairs tightly twisted right up to the contact blades for optimal performance.

• 50µ" Gold-Plated 3-Prong Contacts: Suited for both solid and stranded 23–24 AWG copper conductors, ensuring long-term corrosion resistance and maximum signal integrity.

• Cat6 Performance Standards: Fully compliant with ANSI/TIA-568-C.2 Category 6 specifications, supporting bandwidths up to 250 MHz and Power over Ethernet (PoE / PoE+ / 802.3bt).

• Transparent Polycarbonate Housing: Clear, flame-retardant casing offers full visibility during conductor insertion and alignment checks.
