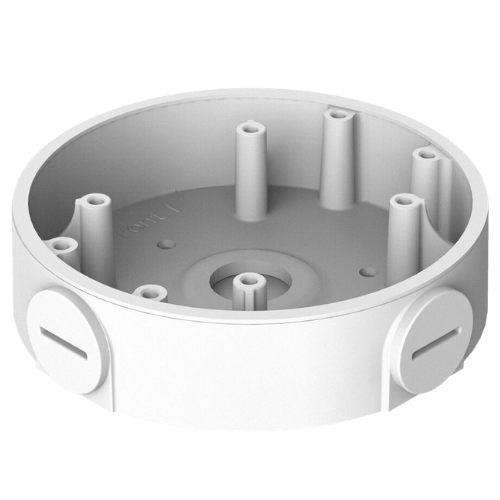

DH-PFA139 – Low-Profile Waterproof Aluminum Junction Box (108 mm x 28.5 mm / 4.25" x 1.12")

Product Overview

The DH-PFA139 (Dimensions: 108.0 mm x 28.5 mm / 4.25" x 1.12") is a compact, low-profile weatherproof camera mounting junction box engineered specifically for compatible eyeball, dome, and mini-bullet security cameras. Designed for commercial, industrial, and residential video surveillance setups, it provides a secure, sealed internal compartment to conceal and protect camera pigtails, RJ-45 network connections, power plugs, and video baluns from moisture, dust, and physical tampering.

Constructed from heavy-duty die-cast aluminum alloy with an integrated rubber sealing gasket, the DH-PFA139 delivers exceptional outdoor durability with an operating temperature range of -40°C to +60°C. It features a side M20 (G1/2") threaded conduit knockout, a rear wall cable pass-through hole, and a load-bearing capacity of up to 1.0 kg (2.20 lbs). Finished in a durable matte white powder coating, it ensures long-term corrosion resistance and clean surface mounting on walls and ceilings.

Key System Features & Functionality

• Precision Camera Compatibility: Pre-threaded hole patterns designed to seamlessly match compact eyeball and dome camera mounting bases.

• Low-Profile Weatherproof Aluminum: High-durability die-cast aluminum with a slim 28.5 mm profile prevents moisture ingress and physical tampering without adding visual bulk.

• Concealed Cable Management: Enclosed cavity protects RJ-45 waterproof connectors, DC power plugs, and excess wiring from exposure and vandalism.

• Standard Conduit Entry: Features a side M20 (G1/2") threaded conduit port with a sealing plug and a rear cable pass-through opening.

• High Load Capacity: Securely supports camera loads up to 1.0 kg (2.20 lbs) with high structural stability.

• Wide Operating Temperature: Designed to operate reliably in harsh outdoor climates from -40°C to +60°C.
