DH-PFA150 – Heavy-Duty Outdoor Vertical Pole Mount Bracket Adapter (130.4 mm x 170 mm x 45 mm / 5.13" x 6.69" x 1.77")

Product Overview

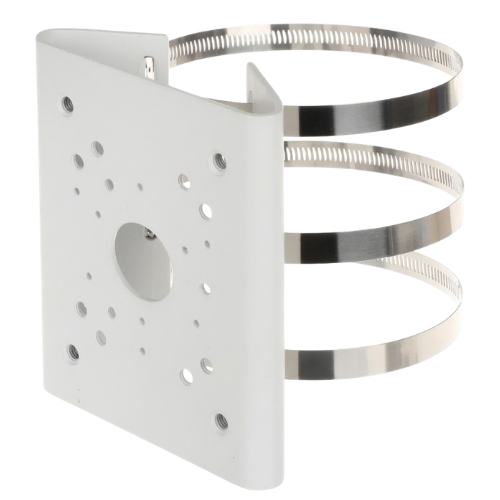

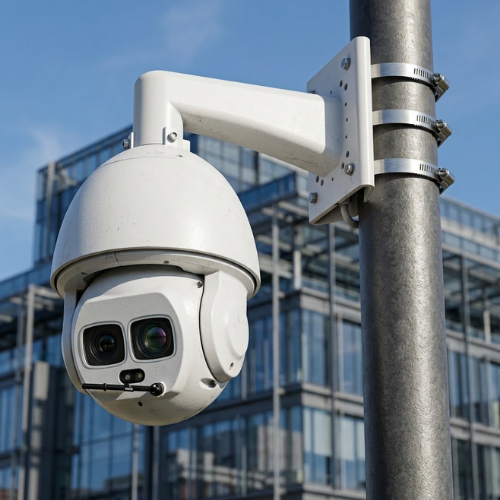

The DH-PFA150 (Dimensions: 130.4 mm x 170.0 mm x 45.0 mm / 5.13" x 6.69" x 1.77") is a heavy-duty outdoor pole mount adapter engineered to securely mount security cameras, junction boxes, and PTZ wall brackets to vertical utility poles, masts, and cylindrical pillars. Designed for commercial, municipal, industrial, and perimeter video surveillance deployments, it accommodates pole diameters ranging from 80 mm to 150 mm (3.15" to 5.91").

Constructed from premium corrosion-resistant aluminum alloy (SECC / Die-Cast Aluminum) with three heavy-duty stainless steel clamp bands, the DH-PFA150 provides exceptional structural stability with a maximum load-bearing capacity of up to 10.0 kg (22.05 lbs). It features pre-drilled threaded hole patterns compatible with standard wall mount brackets (such as PFB300S, PFB305W, PFB203W) and junction boxes (such as PFA121, PFA134, PFA137), operating reliably in extreme weather environments from -40°C to +60°C with a clean matte white powder-coated finish.

Key System Features & Functionality

• Versatile Pole Diameter Compatibility: Fits round vertical poles and masts from 80 mm to 150 mm (3.15" to 5.91") using three adjustable stainless steel band clamps.

• Extensive Bracket & Housing Matching: Multi-pattern pre-drilled holes integrate directly with compatible wall brackets (PFB series), PTZ brackets, and waterproof junction boxes (PFA series).

• Heavy-Duty Aluminum Alloy Construction: Lightweight yet rugged aluminum construction prevents rust, corrosion, and environmental degradation under prolonged outdoor exposure.

• High Load Capacity (10.0 kg): Safely supports heavy PTZ dome cameras, large bullet housings, and bracket combinations up to 10.0 kg (22.05 lbs) with high wind-load resistance.

• Integrated Cable Pass-Through: Central cable access cutout allows clean, weather-protected wiring from the pole interior or conduit into the camera housing.

• Extreme Weather Durability: Engineered to perform reliably in demanding commercial climates from -40°C to +60°C.
