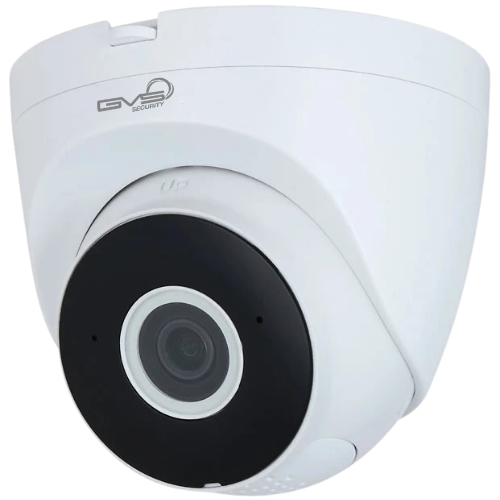

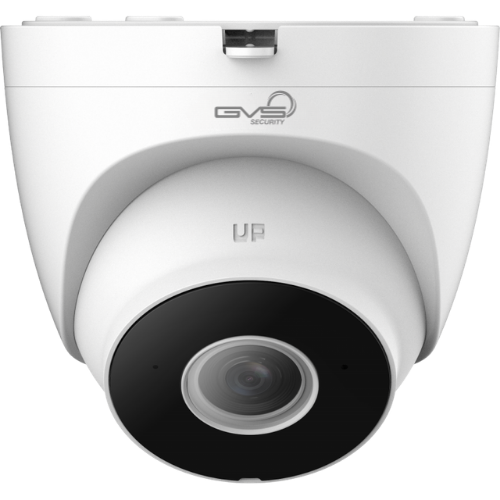

2MP HD Analog Eyeball Security Camera (2.8 mm, 20m Smart IR, 4-in-1 Switchable, IP67)

Product Overview

The DHA-D2TM-28D (HAC-T2A21-DIP) is a commercial-grade 2 Megapixel (1080p) fixed-focal eyeball/turret HD analog camera engineered for dependable indoor and outdoor video surveillance deployments. Equipped with a high-performance 1/2.7" progressive scan CMOS image sensor and a 2.8 mm wide-angle lens, this camera delivers fluid, high-definition video at 1920 × 1080 resolution at up to 30 fps with an expansive horizontal field of view.

Designed for broad compatibility across legacy and modern recording platforms, the camera features a 4-in-1 switchable BNC output supporting HDCVI, HDTVI, AHD, and standard CVBS analog signals with DIP-switch/UTC format control. It integrates an intelligent Smart IR illuminator providing balanced, glare-free night vision up to 20 meters (65.6 ft) in complete darkness. Built into a durable, all-weather IP67 rated aluminum metal enclosure, the camera operates reliably in demanding outdoor climates across temperatures from -40°C to +60°C with standard 12V DC power.

Key System Features & Functionality

• Full HD 1080p Video Resolution: Real-time 2MP (1920 × 1080 @ 30 fps) high-definition video output for clear, accurate scene monitoring.

• 4-in-1 Multi-Format Signal Compatibility: Easily switchable between HDCVI, HDTVI, AHD, and CVBS analog video formats for seamless integration with virtually any DVR/XVR.

• Smart IR Night Vision (20 m): Built-in high-efficiency infrared LEDs automatically adjust intensity to prevent center overexposure, illuminating up to 20 meters (65.6 ft).

• Expansive 2.8 mm Wide-Angle Lens: Provides a wide field of view (approx. 103° horizontal) for optimal coverage in residential and commercial spaces.

• Advanced Image Optimization: Equipped with DWDR, 2D Digital Noise Reduction (2D NR), Backlight Compensation (BLC), and Highlight Compensation (HLC) for balanced contrast under challenging lighting.

• Rugged IP67 All-Weather Housing: Sturdy metal construction ensures superior heat dissipation and complete protection against heavy rain, wind-blown dust, and harsh conditions (-40°C to +60°C).

• Flexible 3-Axis Adjustment: Turret eyeball design allows effortless manual pan, tilt, and rotation during installation for precise target framing.
