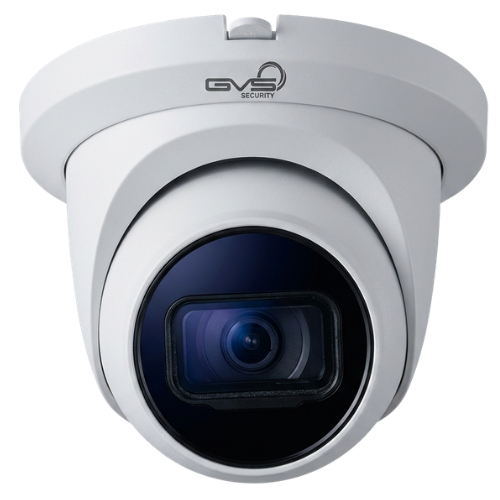

5MP Metallic Eyeball Security Camera (2.8 mm, 30m Smart IR, DIP Switch 4-in-1, IP67)

Product Overview

The OEM HAC-HDW1500TLMQ-DIP is a commercial-grade 5 Megapixel fixed-focal eyeball/turret HD analog camera engineered for high-clarity indoor and outdoor video surveillance installations. Built with a 1/2.7" progressive scan CMOS image sensor and a 2.8 mm wide-angle lens, this camera delivers crisp, real-time 16:9 widescreen video at 5MP resolution (2880 × 1620 at 25 fps), eliminating distortion and black bars on modern monitors.

Engineered for cross-platform compatibility, it features a built-in hardware DIP switch on the cable to quickly toggle between HDCVI, HDTVI, AHD, and standard analog CVBS video formats without requiring UTC controllers or OSD configuration tools. It integrates an intelligent Smart IR illuminator providing balanced, glare-free night vision up to 30 meters (98.4 ft) in total darkness. Housed in a durable all-metal (metallic) IP67 weatherproof enclosure, it ensures optimal heat dissipation and long-lasting durability in harsh outdoor climates across temperatures from -40°C to +60°C with 12V DC power.

Key System Features & Functionality

• High-Definition 5MP 16:9 Video: Outputs sharp 2880 × 1620 resolution at 25 fps, matching modern widescreen monitors without stretching or letterboxing.

• Hardware DIP Switch (4-in-1 Multi-Format): Physical DIP switch on the cable enables fast, tool-free switching between HDCVI, HDTVI, AHD, and CVBS video outputs.

• Extended Smart IR Night Vision (30 m): Built-in infrared LEDs automatically adjust intensity to prevent overexposing foreground subjects, illuminating up to 30 meters (98.4 ft).

• Expansive 2.8 mm Wide-Angle Lens: Provides a broad field of view (approx. 106° horizontal) for comprehensive area coverage in residential and commercial perimeters.

• Advanced Video Optimization Suite: Integrates DWDR, 2D Digital Noise Reduction (2D NR), Backlight Compensation (BLC), and Highlight Compensation (HLC) for balanced contrast under challenging lighting.

• Rugged All-Metal Construction: Solid metallic body and core provide superior structural rigidity, tamper resistance, and efficient thermal dissipation.

• IP67 Weatherproof Protection: Heavy-duty weather-sealed housing protects against torrential rain, fine dust, and extreme temperature variations (-40°C to +60°C).

• Flexible 3-Axis Turret Adjustment: Quick eyeball rotation mechanism simplifies alignment on walls, ceilings, and soffits during installation.
