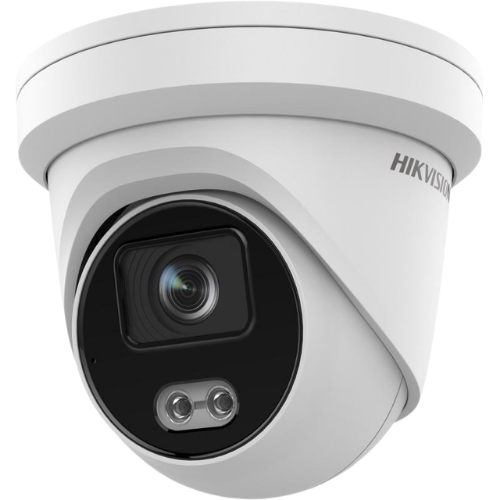

DS-2CD2347G2-LU – 4MP ColorVu Fixed Turret Network IP Camera (2.8 mm / 4.0 mm, F1.0 Super Aperture, 24/7 Full-Color, 30m Warm Light, AcuSense Human/Vehicle AI, Built-in Mic, 130dB WDR, MicroSD, H.265+, IP67, PoE)

Product Overview

SALES OFF! ONLY 2 ENABLE

The DS-2CD2347G2-LU is a flagship 4 Megapixel outdoor fixed-focal turret/eyeball network IP camera from the high-performance ColorVu with AcuSense Series (EasyIP 4.0). Engineered for high-security commercial premises, luxury residential estates, public plazas, and corporate facilities, the camera features an advanced 1/1.8" progressive scan CMOS sensor paired with an ultra-large F1.0 super aperture. This optical architecture captures maximum ambient light, delivering vivid 24/7 full-color imaging at 2688 × 1520 resolution at 30 fps without requiring conventional black-and-white infrared night vision.

Driven by dedicated deep-learning AI hardware, the unit integrates AcuSense target classification, distinguishing humans and vehicles from nuisance false alarms caused by rain, windblown foliage, animals, or sudden lighting changes for line-crossing and perimeter intrusion events. In zero-ambient-light environments, integrated supplementary warm white LED illuminators provide soft, uniform illumination up to 30 meters (98.4 ft). The camera incorporates an on-board high-sensitivity microphone for real-time acoustic monitoring, hardware 130 dB True WDR to master harsh backlight and high-contrast glare, an on-board MicroSD card slot (supporting up to 512 GB), and high-efficiency H.265+ compression. The unit is encased in a heavy-duty all-metal IP67 weatherproof housing with standard PoE (802.3af) and 12V DC power flexibility.

Key System Features & Functionality

• 24/7 Full-Color ColorVu Imaging: Advanced F1.0 super aperture lens and high-sensitivity 1/1.8" sensor deliver continuous, full-color evidentiary video in near-total darkness.

• 4MP Ultra HD Video @ 30 fps: Captures fluid 2688 × 1520 video streams with sharp evidentiary detail for facial identification and vehicle recognition.

• AcuSense Deep-Learning Analytics: Minimizes false alerts by classifying human and vehicle targets for line crossing, perimeter intrusion, and entrance/exit monitoring.

• Supplementary Warm White Light (30 m): Soft, balanced warm white LED illumination extends up to 30 meters (98.4 ft) in complete darkness without blinding subjects.

• Hardware 130 dB True WDR & 3D DNR: Retains vivid forensic clarity across extreme contrast lighting, glaring sun reflections, and shadowed entryways while suppressing digital image noise.

• Integrated Audio Microphone: Built-in high-gain microphone enables synchronized real-time audio recording directly over the network feed.

• High-Efficiency H.265+ Compression: Reduces storage utilization and local network bandwidth overhead by up to 75% compared to standard H.264.

• Expanded Edge Storage Support: Integrated MicroSD card slot accommodates failover and local standalone recording up to 512 GB.

• All-Metal Rugged IP67 Weatherproofing: Heavy-duty weather-sealed aluminum body ensures reliable operation through driving rain, windblown dust, and extreme temperature swings (-30°C to +60°C).

• Flexible Dual Power Options: Supports Power over Ethernet (PoE 802.3af) for streamlined single-cable infrastructure alongside standard 12V DC power.
