DS-2CE70DF3T-PTS – 2MP ColorVu Indoor PT Audio Turret Camera (1080p, F1.0 Super Aperture, 24/7 Full-Color, Pan-Tilt Control, 2.8 mm / 3.6 mm, 20m White Light, Built-in Mic, 130dB WDR)

Product Overview

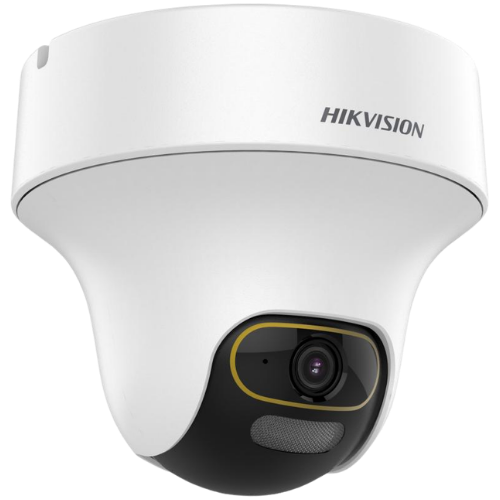

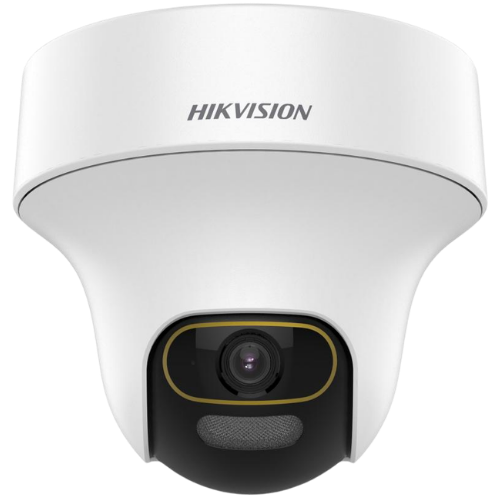

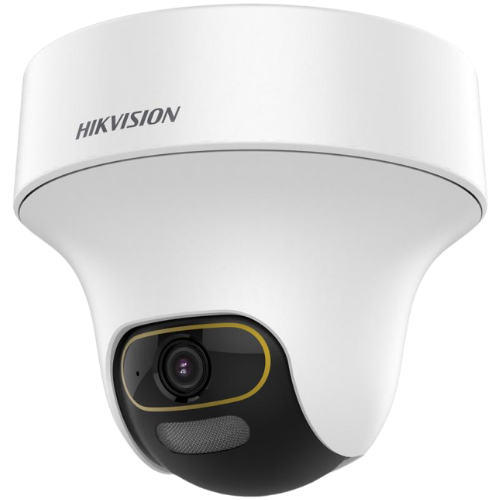

The DS-2CE70DF3T-PTS is an advanced 2 Megapixel (1080p) indoor motorized Pan & Tilt (PT) analog security camera featuring ColorVu technology, engineered for retail storefronts, office receptions, residential living spaces, and commercial interior areas requiring active directional control alongside continuous, vivid night surveillance. Equipped with a high-sensitivity progressive scan CMOS sensor, an ultra-large F1.0 super aperture, and advanced sensor processing, the camera delivers vivid 24/7 full-color imaging even in extreme low-light environments without reverting to black-and-white infrared.

Designed for dynamic indoor monitoring, the camera incorporates motorized pan-tilt mechanics controllable directly via coaxial telemetry (UTC) from compatible DVRs, supporting 0° to 350° pan rotation and 0° to 90° tilt, allowing operators to actively eliminate blind spots across wide rooms. In complete darkness, built-in warm white light illuminators provide soft, uniform illumination up to 20 meters (65.6 ft). The unit features an integrated microphone with Audio-over-Coax (AoC) capability, enabling real-time audio transmission down standard coaxial cabling without secondary audio wiring. Additional imaging performance includes hardware 130 dB True WDR, 3D Digital Noise Reduction (3D DNR), and convenient 12V DC operation.

Key System Features & Functionality

• 24/7 Full-Color ColorVu Imaging: Large F1.0 super aperture captures maximum light, delivering full-color evidentiary video round the clock.

• Motorized Pan & Tilt Navigation (PT): Delivers flexible directional control (Pan: 0° to 350°, Tilt: 0° to 90°) controlled over coaxial cable via DVR or mobile application.

• Full HD 1080p Video: High-definition 1920 × 1080 video stream at up to 30 fps for clear identification of faces, currency, and interior activity.

• Audio-over-Coax (AoC) with Built-in Mic: Transmits high-fidelity synchronized audio and HD video over a single coaxial cable line directly to compatible DVRs.

• Hardware 130 dB True WDR & 3D DNR: Resolves harsh sunlight shining through storefront windows or glass entryways while eliminating low-light digital noise.

• Soft Warm White Light Illumination (20 m): Supplementary warm light provides balanced zero-light illumination up to 20 meters (65.6 ft) without blinding subjects.

• Lens Versatility (2.8 mm / 3.6 mm): Choice of wide-angle coverage (2.8 mm) or focused depth perspective (3.6 mm) to fit specific room geometries.

• Up-the-Coax (UTC) Configuration: Manage PT navigation and on-screen display (OSD) settings directly from the DVR or CMS software interface.
