DS-KD-KP – Modular Intercom Keypad Sub-Module (Backlit 12-Key Numeric Keypad, PIN Code Door Unlock, Room Calling, IP65, IK07)

Product Overview

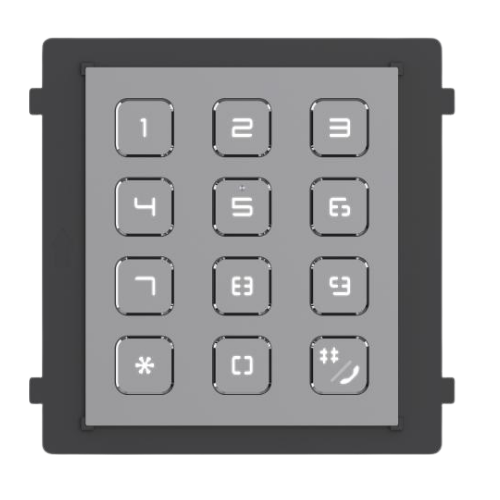

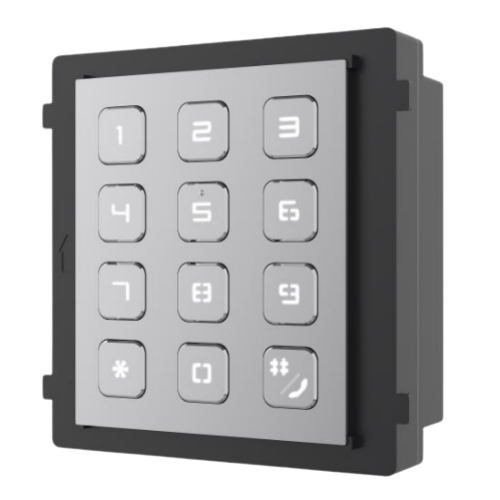

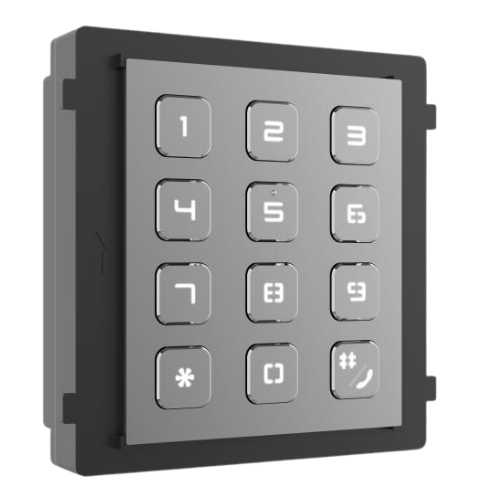

The DS-KD-KP is an access control and intercom numeric keypad sub-module designed for modular IP video intercom door station systems. Engineered for multi-tenant apartment complexes, gated residential communities, and commercial office entrances, the module expands the functionality of a modular master door station unit by enabling visitors to call specific indoor monitor stations directly and allowing authorized residents or staff to unlock secured doors using personal or master PIN access codes.

Built with a tactile 12-button physical keypad (0–9, *, #), each key features integrated LED backlighting to ensure effortless night operation and visibility in dimly lit vestibules or outdoor entryways. The module connects seamlessly to the primary video intercom unit via an internal RS485 communication cascade interface and draws operational DC power directly through the modular cascade connection, simplifying wire infrastructure. Encased in a rugged, weather-sealed enclosure rated IP65 for outdoor ingress protection and IK07 for impact resistance, it mounts flush or surface-level inside single or multi-module frames and bracket assemblies.

Key System Features & Functionality

• PIN-Code Door Release: Supports secure keypad entry, allowing residents, employees, or delivery drivers to unlock connected access doors via customized numerical PIN codes.

• Direct Room Calling: Visitors can dial specific indoor extension numbers or room numbers directly on the 12-key pad to place immediate intercom calls.

• Integrated LED Backlit Keys: High-visibility soft white LED backlighting illuminates each numeric key for seamless operation in low-light and nighttime conditions.

• Modular Cascade Architecture: Interfaces with the main intercom camera unit via a 4-pin internal cascade connection (RS485 communication + DC power), requiring no separate power runs.

• Rugged Weather & Vandal Resistance: Built with an IP65 waterproof seal and IK07 mechanical impact rating for continuous outdoor perimeter reliability.

• Flexible Installation Integration: Compatible with modular flush-mount and surface-mount frames (1-gang, 2-gang, or 3-gang layouts with rain hoods).
