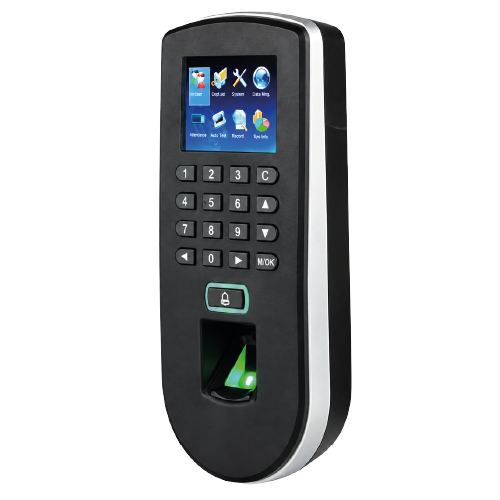

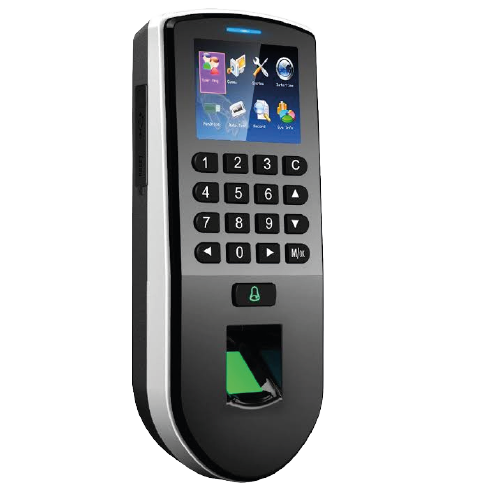

Standalone Biometric Fingerprint & RFID Access Control Terminal (TCP/IP, USB, Wiegand, Anti-Passback)

Product Overview

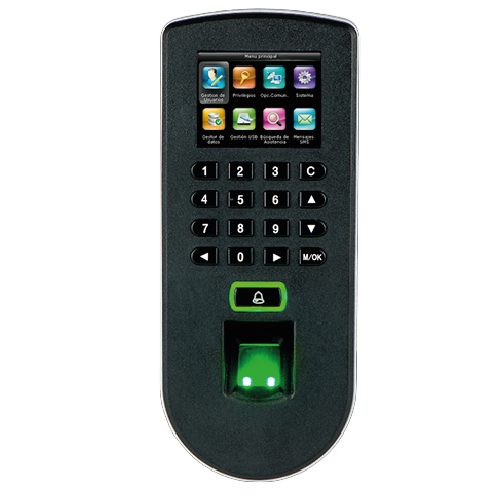

The F19ID Biometric Access Control Terminal is a high-performance standalone reader designed for commercial office security, server room protection, and workforce time and attendance tracking. Equipped with a high-precision optical fingerprint sensor, the terminal stores up to 3,000 fingerprint templates and logs up to 30,000 offline event records in non-volatile memory, delivering verification speeds of under one second.

Engineered with flexible communication architecture, the F19ID features native TCP/IP Ethernet and USB-host ports, allowing real-time network database synchronization or convenient offline USB flash drive data retrieval. For comprehensive multi-door security and mantrap installations, it includes standard Wiegand Input and Output ports alongside an RS-485 communication bus compatible with FR1200 slave fingerprint readers, enabling secure bidirectional verification (fingerprint in / fingerprint out). Onboard door control relays, door sensor inputs, exit button terminals, tamper detection, and hardware anti-passback ensure robust perimeter security and seamless access management.

Key Features

• High-Capacity Biometric Storage: Stores up to 3,000 fingerprint templates, 5,000 RFID cards, and 30,000 offline log transactions.

• Rapid Biometric Verification: Advanced fingerprint algorithm matches user prints in less than 1 second with high false-acceptance rejection.

• Network & Offline Connectivity: Built-in TCP/IP Ethernet interface for real-time LAN communication plus a USB port for manual thumb drive data export.

• FR1200 Slave Reader Interoperability: Dedicated RS-485 interface pairs seamlessly with FR1200 biometric sub-readers for bidirectional access tracking.

• Full Wiegand Integration: Features both Wiegand Input (for external card readers) and Wiegand Output (to connect as a slave reader to third-party panels).

• Advanced Access Logic: Supports hardware anti-passback, multi-verification modes, duress alarms, door sensor alarms, and tampered chassis alerts.

• Vivid Color TFT Display: 2.4-inch color screen with an intuitive graphic user interface and touch-sensitive keypad simplifies local programming.

Compatible Devices

• FR1200 RS-485 Slave Fingerprint & RFID Readers

• Standalone and Networked Multi-Door Access Control Panels (Wiegand 26/34-bit input/output)

• Electromagnetic Locks (LM-2802, LM-1802) and Electric Strikes (Fail-Safe & Fail-Secure)

• Request-to-Exit (REX) Push Buttons, Emergency Break-Glass Stations, and Door Contacts

• 125 kHz EM-Marin Proximity Cards (CR80) and Proximity Keyfobs (TAG03A)

• ZKBioAccess IVS, ZKBioSecurity, and ZKAccess 3.5 Management Software Suites
