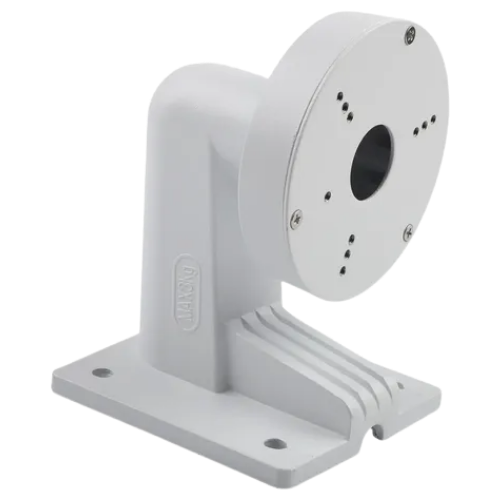

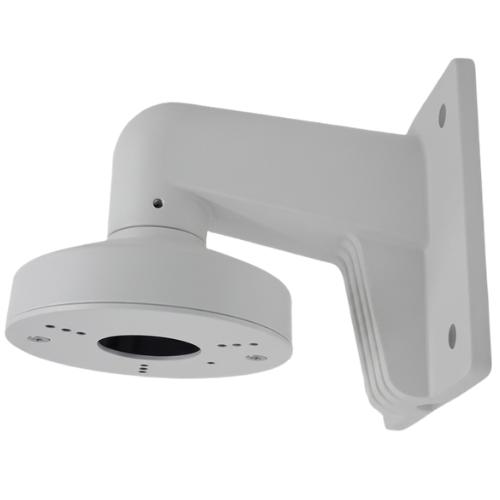

Hikvision DS-1272ZJ-110-TRS – Wall Mount Bracket for Dome Cameras (Aluminum Alloy, White)

Product Overview

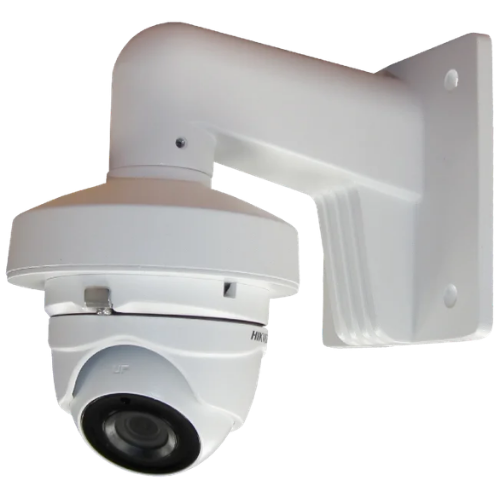

The Hikvision DS-1272ZJ-110-TRS (Dimensions: 120.0 x 122.0 x 169.0 mm / 4.72'' x 4.80'' x 6.65'') is a heavy-duty outdoor and indoor wall mounting bracket engineered specifically for compatible Hikvision mini dome and turret IP/analog security cameras. Designed for commercial, industrial, and residential video surveillance installations, it provides an elevated, downward-angled vantage point to maximize camera coverage across building facades, hallways, entry gates, and perimeter walls.

Constructed from robust die-cast aluminum alloy with an integrated rubber sealing gasket, the DS-1272ZJ-110-TRS protects camera pigtails, RJ-45 network terminations, and power connections from rain, moisture, and dust ingress. It features an internal cable pass-through channel for concealed wiring, supports a structural load capacity of up to 4.5 kg (9.9 lbs), and comes coated in Hikvision white powder paint for long-term corrosion resistance in extreme weather conditions from -40°C to +60°C.

Key System Features & Functionality

• Dedicated Hikvision Dome Compatibility: Precision-engineered mounting adapter plate designed specifically for Hikvision Ø110 mm mini dome and turret camera series.

• Heavy-Duty Aluminum Alloy Construction: High-strength die-cast aluminum prevents structural bending, rust, and degradation in demanding outdoor environments.

• Concealed Cable Routing: Internal cable channel routes wiring directly through the wall or bottom conduit access, eliminating exposed cables and preventing vandalism.

• Weatherproof Sealing Gasket: Integrated rubber gasket prevents water and moisture from entering the wall cavity and camera connection base.

• High Load-Bearing Capacity: Safely supports camera loads up to 4.5 kg (9.9lbs) with high resistance to wind vibration.

• Extreme Climate Resistance: Built to endure harsh outdoor temperature fluctuations from -40°C to +60°C.
