8MP 4K HD Passive UTP Video Balun with Push-Terminal & Pigtail BNC (HD-TVI / CVI / AHD / CVBS)

Product Overview

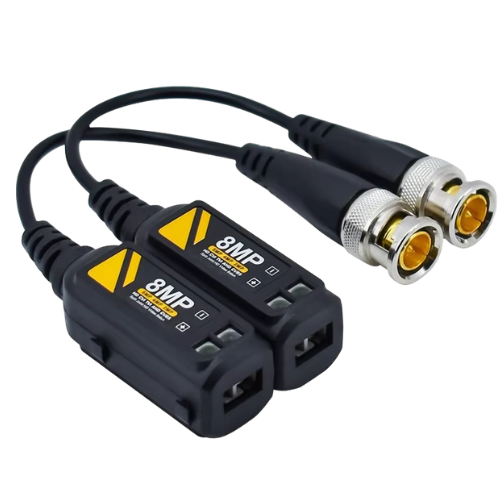

The HM-950 8MP Passive UTP Video Balun is a high-definition analog impedance matching transceiver engineered to convert unbalanced 75 Ω coaxial video signals into balanced 100 Ω signals for transmission over unshielded twisted pair (UTP Cat5e / Cat6) structured cabling. Supporting resolutions up to 8MP / 4K Ultra HD, this passive transceiver enables long-range video transmission across HD-TVI, HD-CVI, AHD, and legacy CVBS camera formats without requiring external power.

Designed for rapid field deployment, the HM-950 incorporates a tool-free spring-actuated push-pin terminal block, allowing technicians to terminate stripped UTP conductor pairs securely in seconds without screwdrivers. Its integrated flexible mini-coaxial pigtail cable relieves mechanical stress on camera pigtails and high-density DVR backplanes, allowing multiple BNC connections to sit side-by-side without port crowding. Built inside an impact-resistant ABS plastic housing with built-in transient surge protection (TVS / ESD) and 60 dB cross-talk/noise immunity, it delivers clean, interference-free 4K surveillance video over standard networking cable infrastructure.

✅ Key Features

• 8MP / 4K Ultra HD Video Support: Fully compatible with 8MP, 5MP, 4MP, 3MP, 1080p, 720p, and legacy 960H/CVBS analog formats.

• Universal 4-in-1 Format Compatibility: Works seamlessly across HD-CVI (Dahua), HD-TVI (Hikvision), AHD, and standard analog systems.

• Tool-Free Quick Push-Pin Terminals: Spring-loaded terminal mechanism provides fast, reliable, and solderless UTP cable wire clamping without screwdrivers.

• Flexible Mini-Coax Pigtail Lead: Eliminates mechanical leverage on BNC ports and prevents connector crowding on densely populated DVR rear panels.

• Long-Distance Transmission: Reaches up to 200–250 m (656–820 ft) in 1080p and up to 150–200 m (492–656 ft) in 4K/8MP over Cat5e/Cat6 UTP cable.

• Passive Operation (No Power Required): Completely unpowered design simplifies installation and eliminates redundant power supplies.

• Built-In Surge & Noise Suppression: Integrated Transient Voltage Suppressor (TVS) provides up to 2 kV surge immunity with > 60dB noise and crosstalk rejection.

• Corrosion-Resistant Gold-Plated BNC Contacts: Pure copper, gold-plated center pins ensure optimal RF conductivity and minimal insertion loss across mating cycles.

📸 Compatible Devices

• 8MP (4K), 5MP, 2MP (1080p) HD-CVI, HD-TVI, AHD, and CVBS Analog Security Cameras

• Multi-Channel HD Digital Video Recorders (XVR / DVR) from 4 to 32 channels

• 24 AWG Solid Bare Copper UTP Cat5e and Cat6 Structured Network Cabling

• Camera Waterproof Junction Boxes (such as HM-PFA130E and BOX-05X)

• Centralized 12V DC CCTV Power Distribution Boxes and DC Pigtails (such as DC-CORFEM)
