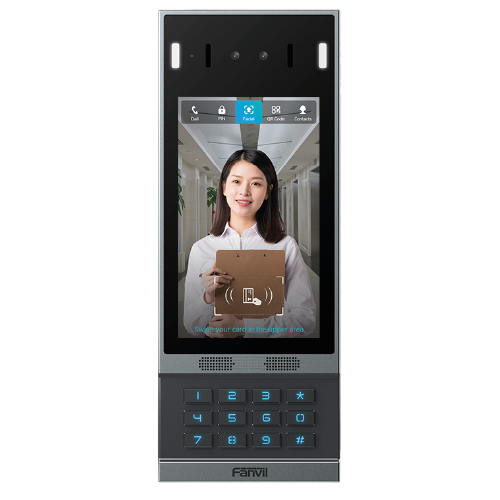

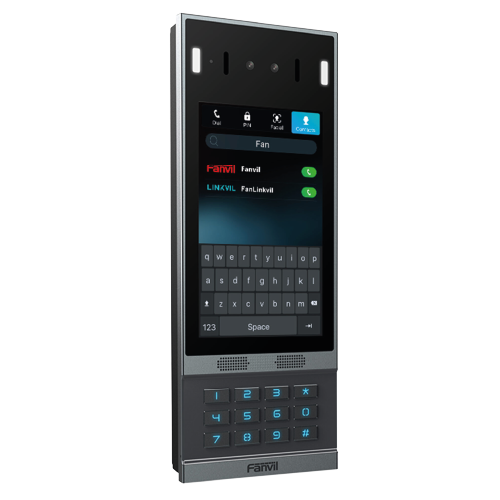

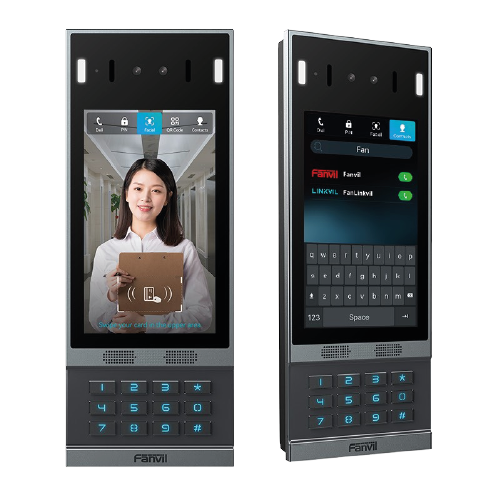

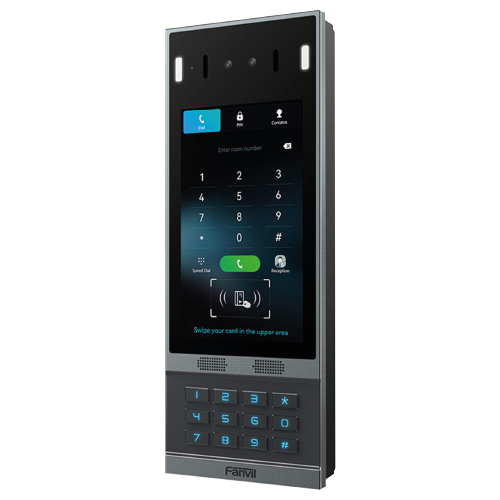

i67 – Fanvil Face Recognition SIP Video Door Phone

Product Overview

The i67 is an enterprise-grade biometric facial recognition SIP video door phone manufactured by Fanvil. Purpose-built for luxury apartment communities, corporate office headquarters, gated commercial parks, high-security data centers, and multi-tenant residential complexes, this intelligent outdoor intercom integrates touchless access control, SIP telephony, and video surveillance into a unified outdoor station. Enclosed in a heavy-duty aluminum alloy unibody chassis certified to IP66 weatherproof and IK07 vandal-proof standards, the i67 provides physical resilience against severe environmental conditions, direct rain, dust, and physical tampering.

Featuring a vibrant 7-inch capacitive color touchscreen alongside a dual-camera optical array (visible light RGB camera + infrared IR camera with WDR), the i67 delivers high-speed 3D live facial recognition in under 0.2 seconds, actively rejecting 2D photographic prints, phone screens, and silicone mask spoofing. The terminal offers multi-factor access authentication: touchless facial recognition, keyless PIN passcodes via the digital touchscreen numeric keypad, proximity credentials through an integrated dual-frequency RFID card reader (13.56 MHz & 125 kHz), dynamic QR code scanning for visitor management, and remote DTMF unlocking via connected indoor monitors or IP-PBX platforms. Powered via PoE+ (802.3at) or local DC power, and supporting ONVIF Profile S/T, the i67 integrates with third-party NVRs, VMS platforms, and IP telephony ecosystems.

Key System Features & Functionality

• Hands-Free 3D Live Facial Recognition: Dual visible + IR camera setup provides fast biometric verification (< 0.2 seconds) with anti-spoofing protection in total darkness or bright sunlight.

• 7-Inch Capacitive Touchscreen: High-resolution color display provides an intuitive interface for visitor calling, electronic tenant directory search, and virtual PIN entry.

• Multi-Factor Access Methods: Supports facial recognition, touch PIN passcode, dual RFID card (Mifare 13.56 MHz & EM 125 kHz), temporary visitor QR codes, and remote DTMF release.

• IP66 Waterproof & IK07 Vandal Resistance: Weather-sealed aluminum alloy housing withstands high-pressure water jets, dust ingress, and external mechanical impacts.

• Dual Door Relay Control: 2 short-circuit output relays allow independent triggering of two doors (such as a pedestrian door and motorized vehicle gate).

• Dual 2 MP Camera System with WDR: Delivers full 1080p HD video streaming with Wide Dynamic Range to capture clear visitor footage against strong backlighting.

• Enterprise HD Voice: High-power built-in 2.5W speaker and dual microphones with Acoustic Echo Cancellation (AEC) and background noise reduction.

• Open SIP 2.0 & ONVIF Integration: Compatible with major IP-PBX systems (Asterisk, 3CX, FreePBX) and video surveillance platforms via RTSP and ONVIF Profile S/T.
