Product Overview

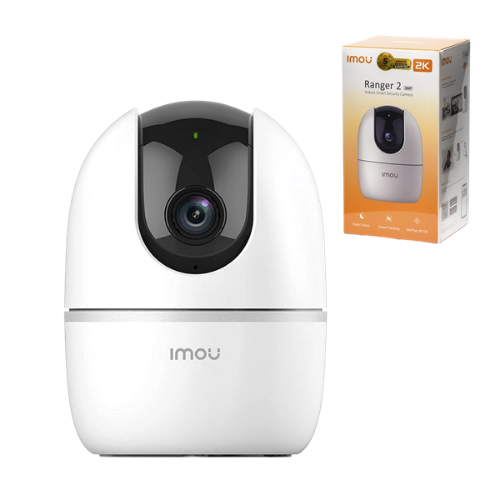

The IMOU Ranger 2 3MP is an indoor Wi‑Fi IP security camera designed for residential and light commercial monitoring. With 3MP 2K video resolution, pan and tilt coverage, human detection, and two-way audio, it provides flexible indoor surveillance for homes, offices, small businesses, and interior spaces.
Its compact design, mobile app integration, and smart notification features make it a practical solution for users looking for convenient remote monitoring and everyday security coverage.
Key Features
-
3MP Resolution: Captures video at up to 2304 × 1296 for sharper detail than standard 1080p.
-

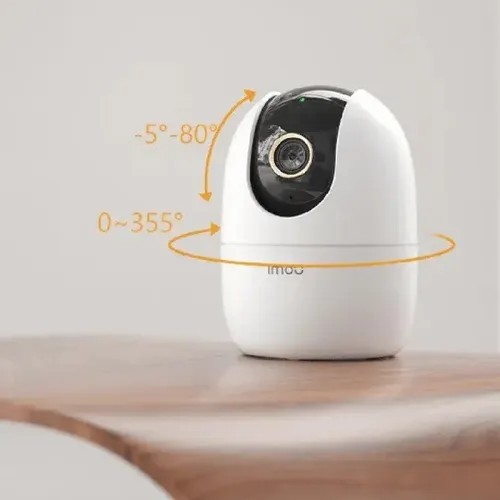

Pan & Tilt Coverage: Supports up to 355° pan and -5° to 80° tilt for wider interior monitoring.
-
3.6mm Fixed Lens: Suitable for general-purpose indoor surveillance.
-
Night Vision: Provides infrared night monitoring up to 10 m (33 ft).
-
Human Detection: Helps distinguish human activity and sends app notifications when supported events are detected.
-
Smart Tracking: Automatically follows movement when motion is detected.
-
Two-Way Audio: Built-in microphone and speaker allow real-time communication.
-
Abnormal Sound Alarm: Sends alerts when unusual sound events are detected.
-
H.265 / H.264 Compression: Helps optimize bandwidth and storage use.
-
Wi‑Fi Connectivity: Supports wireless operation and monitoring through the IMOU app.
-
ONVIF Support: Can support integration with compatible systems where applicable.
-
Privacy Mode: Allows the lens to be hidden when privacy is needed.
Recommended Applications
Ideal for:
-
Indoor home monitoring
-
Offices and reception areas
-
Small retail interiors
-
Pet and family monitoring
-
General indoor security observation
Important Note
Please verify app compatibility, supported recording methods, and storage capacity details based on the exact product version available for your market.
| Specification | Details |
|---|---|
| Model | IPC-K2EN-3H1W |
| Product Line | Ranger 2 3MP |
| Camera Type | Indoor Wi‑Fi Pan & Tilt IP Camera |
| Image Sensor | 1/2.8" Progressive CMOS |
| Resolution | 3MP (2304 × 1296) |
| Lens | 3.6mm Fixed |
| Field of View | 83° (H), 46° (V), 100° (D) |
| Pan Range | 355° |
| Tilt Range | -5° to 80° |
| Night Vision | Up to 10 m / 33 ft |
| Video Compression | H.265 / H.264 |
| Digital Zoom | 8x |
| Audio | Two-Way Audio |
| Detection | Motion Detection, Human Detection, Abnormal Sound Alarm |
| Connectivity | Wi‑Fi |
| App Support | IMOU App for iOS and Android |
| Local Storage | MicroSD card slot |
| Power Supply | 5V DC, 1A |
| Power Consumption | Less than 3.7W |
| Operating Temperature | -10°C to +45°C |
| Dimensions | 77.4 × 77.4 × 106.2 mm |
| Weight | 197 g |
