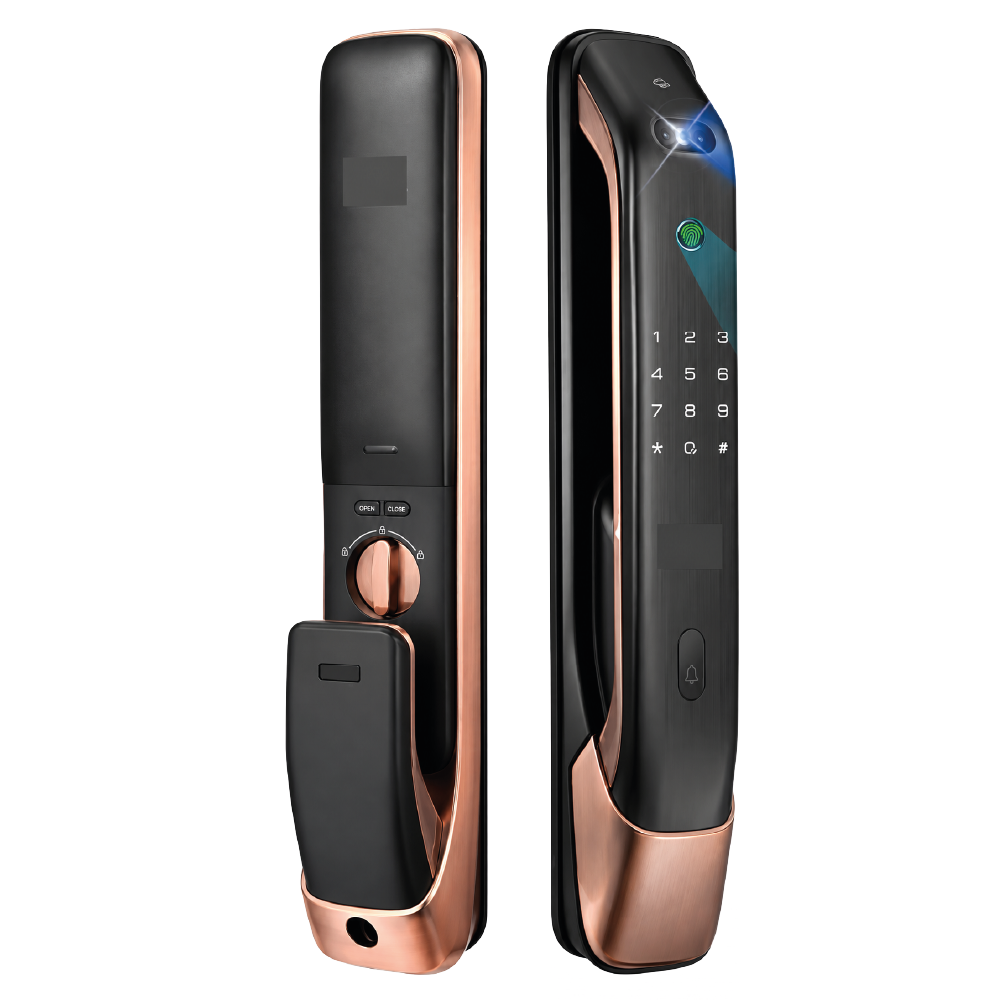

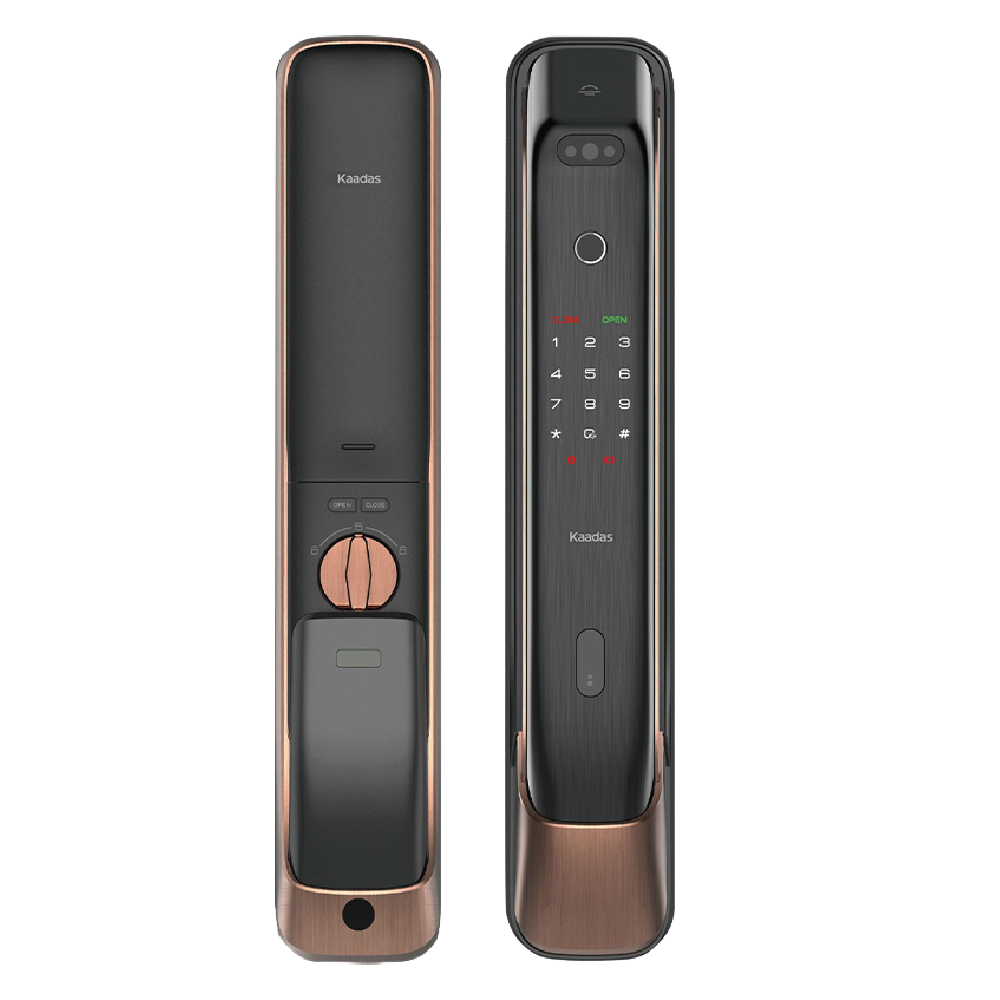

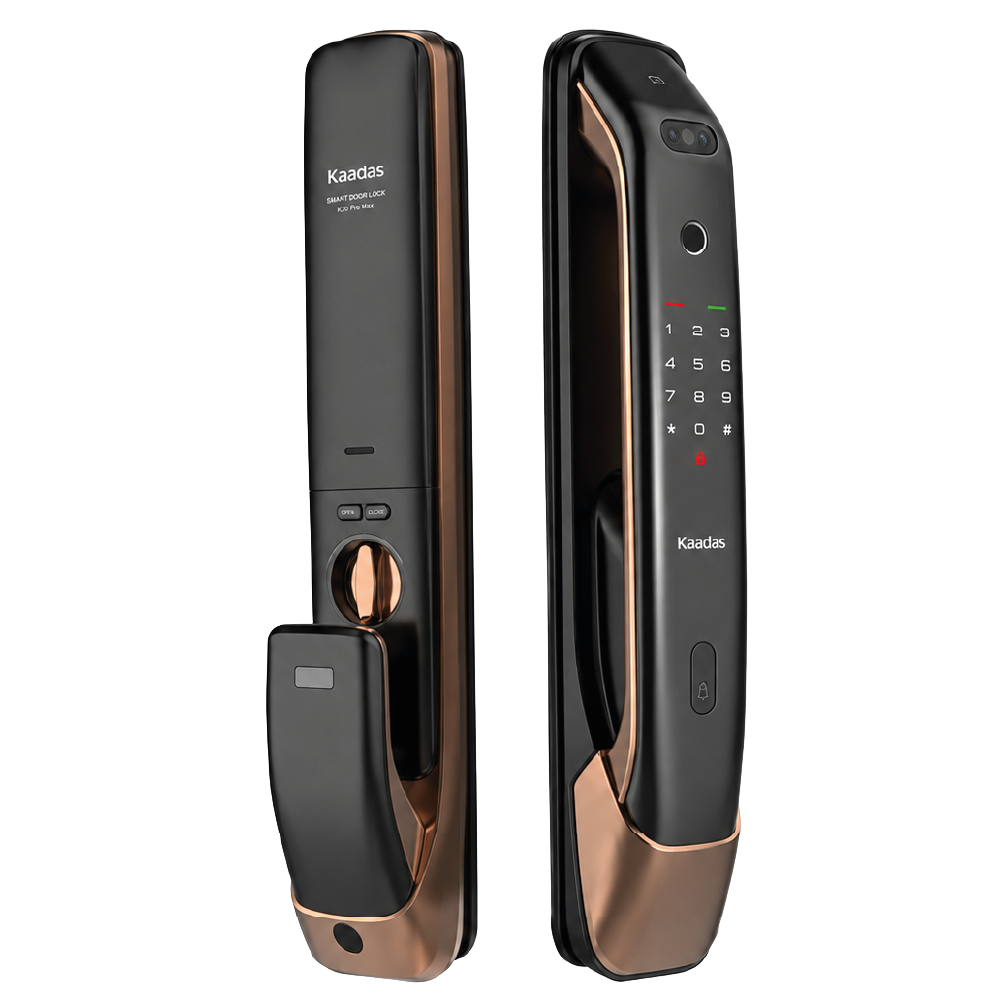

K20-F – Luxury Push-Pull Face Recognition Smart Lock (Bronze)

Product Overview

The K20-F is a flagship luxury electronic push-pull mortise lock manufactured under the GVS Security access hardware lineup. Engineered for luxury residences, commercial executive offices, high-security penthouses, and modern architectural developments, this lock integrates high-speed 3D facial recognition with an automated push-pull handle mechanism. Enclosed in a heavy-duty zinc and aluminum alloy unibody chassis with an electroplated Architectural Bronze finish and tempered glass panel, it delivers robust physical defense against forced entry alongside an executive, contemporary aesthetic.

Equipped with a dual-sensor 3D structured-light infrared facial recognition camera, the K20-F authenticates users hands-free in under 0.6 seconds across total darkness or bright backlit conditions while actively rejecting spoofing attempts from 2D photos, video loops, and masks. The lock provides full multi-credential verification: 3D face recognition, an ergonomic semiconductor capacitive biometric fingerprint sensor, an illuminated capacitive touchscreen PIN keypad with anti-peep decoy masking, 13.56 MHz RFID smart card/fob reading, and a concealed mechanical key cylinder for manual emergency override (physical keys included). Powered by a high-capacity rechargeable lithium-ion battery pack with an exterior 5V USB-C emergency jump-start interface, the K20-F drives an automated multi-bolt stainless steel mortise that locks automatically upon door closure.

Key System Features & Functionality

• Hands-Free 3D Face Recognition: Dual infrared structured-light camera system authenticates authorized users instantly without physical contact, even in pitch-black environments.

• Anti-Spoofing Biometric Security: Advanced depth-sensing algorithms prevent unauthorized entry attempts using printed photographs, digital screens, or 3D silicone masks.

• Ergonomic Push-Pull Operation: Fully automated motor retracts the heavy-duty mortise bolts upon credential verification, allowing effortless push-to-enter and pull-to-exit passage.

• Multi-Credential Authentication: Seamlessly integrates 3D facial recognition, capacitive fingerprint scanning, digital PIN keypad, 13.56 MHz RFID smart cards, and mechanical emergency keys.

• Heavy-Duty Multi-Point Mortise: Stainless steel 304 mortise body with multiple anti-saw deadbolts provides high resistance against kicking, prying, and physical tampering.

• Anti-Peep Virtual Passcode Protection: Supports inputting random decoy digits before or after the true numeric PIN code to prevent onlookers from identifying credentials.

• High-Capacity Rechargeable Li-Ion Power: Operates on a dedicated high-capacity rechargeable lithium battery pack, eliminating the need for frequent AA alkaline replacements.

• Emergency USB-C Power Interface: External bottom-mounted 5V USB-C port enables immediate temporary power connection via a portable power bank during battery exhaustion.

• Intelligent Tamper & Intrusion Alarms: Sounds an acoustic warning siren and initiates a temporary lockout mode upon repeated unauthorized access or physical pry attempts.
