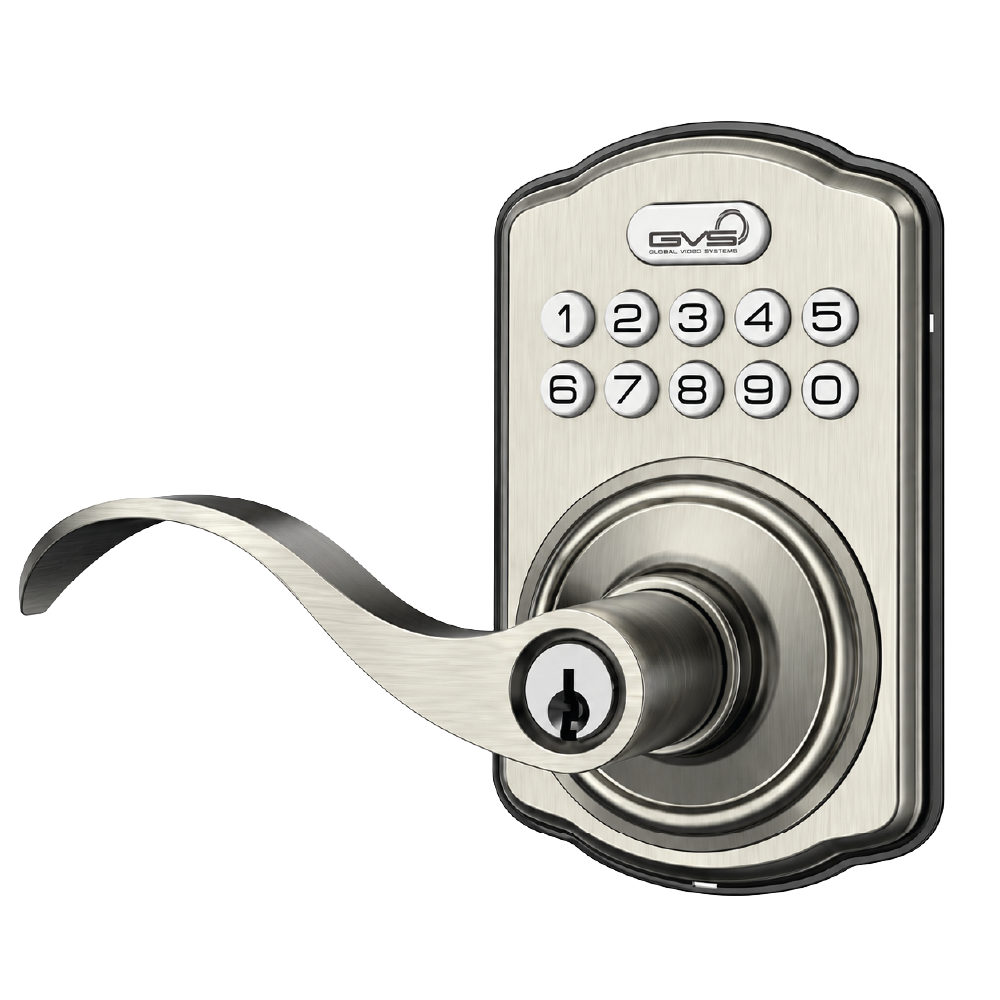

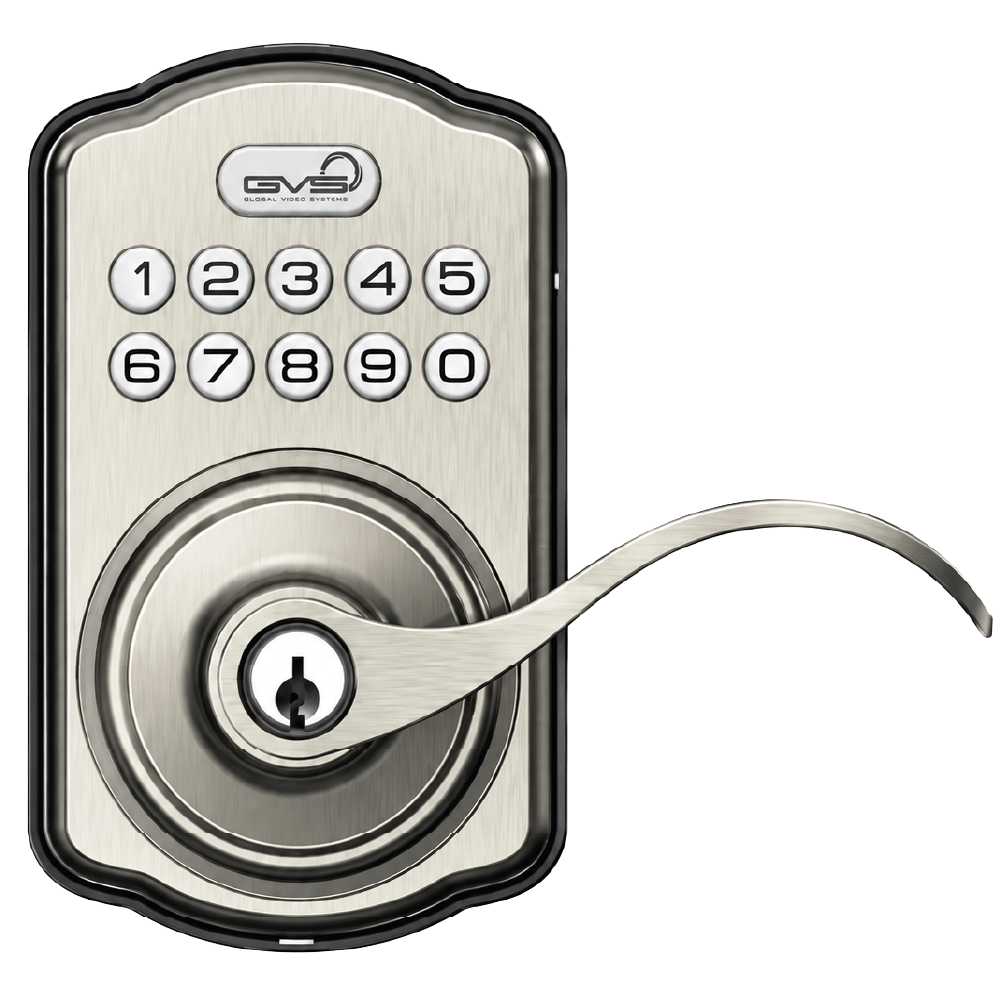

KS04S-GVS – Keypad Electronic Lever Lock (Satin Silver)

Product Overview

The KS04S-GVS is a commercial and residential electronic keypad lever lock manufactured under the GVS Security access hardware line. Purpose-built for perimeter offices, residential entryways, commercial storage suites, utility rooms, and multi-family rental units, this integrated digital lever handle provides standalone access control without requiring a separate deadbolt. Featuring a solid die-cast aluminum alloy construction with an electroplated Satin Silver (Brushed Chrome / Satin Nickel look) finish, it combines modern commercial styling with resistance to oxidation, scratching, and everyday wear.

Engineered for dual access authentication, the lock supports keyless PIN code entry via an illuminated tactile keypad, paired with a concealed mechanical cylinder override (two physical keys included). The internal controller allows administrators to program a master configuration code along with multiple independent user access PINs. Standard functions include anti-peep virtual decoy code entry, programmable auto-lock timing (5 to 90 seconds), passage mode for unrestricted access during business hours, and consecutive incorrect-code lockout alarms. Powered by four standard 1.5V AA alkaline batteries, the KS04S-GVS features a field-reversible handle design compatible with left- or right-hand swinging doors and fits standard US tubular door preparations (35 mm to 50 mm thickness).

Key System Features & Functionality

• Integrated Keypad & Lever Chassis: Replaces standard door knobs and passage levers with an all-in-one digital access lockset.

• Dual Access Authentication: Fast, keyless PIN keypad access alongside a concealed physical cylinder with mechanical override keys.

• Satin Silver Aluminum Body: Solid die-cast aluminum alloy housing finished in Satin Silver that resists corrosion, fingerprints, and weathering.

• Backlit Tactile Keypad: High-contrast LED illuminated buttons ensure accurate, convenient PIN entry in dark hallways or outdoor nighttime settings.

• Anti-Peep Virtual Code Protection: Allows entering random decoy digits before or after the true PIN to prevent credentials from being observed by onlookers.

• Configurable Auto-Lock & Passage Modes: Automatically latches after door closure or switches to passage mode for unrestricted entry during active hours.

• Reversible Lever Handing: Field-reversible handle mechanism accommodates both left-handed and right-handed swinging doors.

• Standalone Battery Operation: Operates on 4 × AA batteries with low-voltage acoustic alerts and exterior emergency power contacts.
