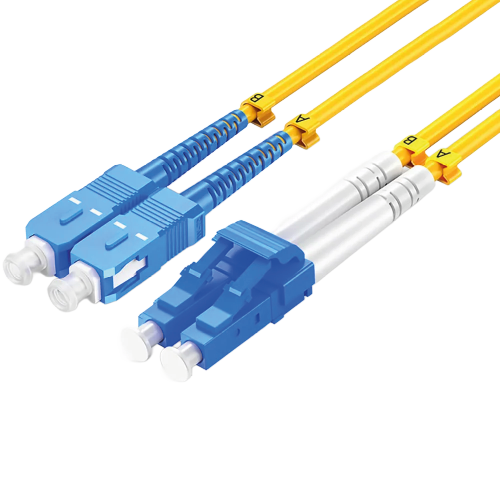

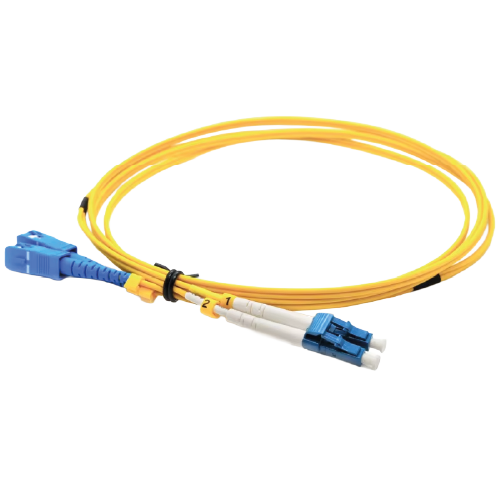

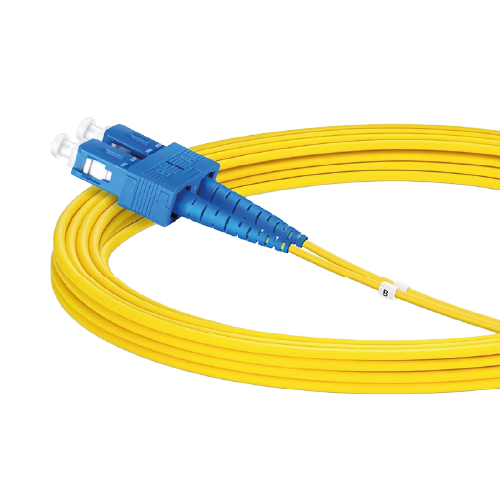

Single Mode OS2 LC Duplex to SC Simplex UPC Fiber Patch Cord (3m, 2.0mm, LSZH, Yellow)

Product Overview

The LP-F13L10S1027L3M Fiber Optic Patch Cord is a specialized single mode optical jumper engineered for transitional cross-connections between compact SFP transceiver interfaces and standard subscriber connector ports. Measuring 3 meters (approx. 9.84 feet) in length, this cable is factory-terminated on one end with an LC Duplex connector and on the opposite end with an SC Simplex connector, both utilizing ultra physical contact (UPC) ceramic ferrules to guarantee ultra-low insertion loss (≤ 0.3dB) and high optical return loss (≥ 50dB).

Manufactured with bend-optimized single mode OS2 (9/125 µm) ITU-T G.652.D optical glass, the patch cord features a compact 2.0 mm outer diameter jacketed in a low smoke zero halogen (LSZH) flame-retardant compound in standard telecom yellow. The LSZH outer sheath emits virtually zero smoke and non-toxic fumes during combustion, ensuring compliance with strict fire safety regulations in indoor data risers, server cabinets, and telecom central offices. It provides the ideal optical interface for linking duplex optical transceivers to simplex ODF ports, legacy media converters, and FTTH fiber distribution terminals.

✅ Key Features

• Single Mode OS2 (9/125 µm) G.652.D Fiber: Optimized for standard 1310 nm and 1550 nm transmission windows across high-speed telecom networks.

• Hybrid LC Duplex to SC Simplex Termination: Bridges small form-factor LC ports to standard SC simplex receptacles without requiring standalone adaptors.

• Precision UPC Ceramic Ferrules: Machine-polished UPC finish guarantees return loss ≥ 50dB and insertion loss ≤0.3dB for optimal signal purity.

• Low Smoke Zero Halogen (LSZH) Safety Jacket: Halogen-free, flame-retardant yellow sheath prevents toxic and acidic gas emissions during fire events.

• Compact 2.0 mm Profile: Slim, flexible design reduces bulk inside high-density patch panels, cable trays, and fiber management trays.

• Zirconia Ceramic Alignment: High-grade ceramic ferrule bodies maintain precise core-to-core concentricity across repeated insertions.

• Factory Tested & Certified: 100% optically inspected for end-face geometry, insertion loss, and back-reflection per Telcordia GR-326-CORE standards.

📸 Compatible Devices

• SFP / SFP+ Single Mode Optical Transceivers (LC interface)

• Fiber Media Converters and Ethernet Switches with SC Simplex optical ports

• Optical Distribution Frames (ODF) and 19-Inch Rackmount Fiber Termination Panels

• FTTH Optical Network Terminals (ONT) and Customer Demarcation Boxes

• High-Definition IP Surveillance Fiber Extenders and Industrial Network Switches
