12U 19" Fixed Wall-Mount Equipment Cabinet (621×570×540mm, Perforated Mesh Front Door, Black)

Product Overview

The LW060512UB 12U Fixed Wall-Mount Equipment Cabinet is an enterprise-grade 19-inch structural enclosure designed for high-density networking, telecommunications, and physical security installations requiring maximum passive thermal dissipation. Featuring an expansive capacity of 12 Rack Units (12U) and physical dimensions of 621 mm High × 570 mm Wide × 540 mm Deep (approx. 24.4" × 22.4" × 21.3"), this cabinet provides an extended 540 mm structural depth that comfortably accommodates managed PoE switches, deep cantilever trays, NVR servers, and structured cabling bundles while maintaining adequate bend radii.

Constructed from commercial-grade cold-rolled SPCC sheet steel treated with an electrostatic black powder coating, the cabinet is engineered for heavy equipment loads up to 132 lbs (60 kg). It features a high-flow hexagonal perforated mesh front door that promotes high volumetric passive airflow directly across intake fans, drastically reducing hot spots and thermal throttling in enclosed spaces. Equipped with a keyed front cylinder lock, removable side panels for streamlined maintenance access, integrated top and bottom cable knockouts, and depth-adjustable vertical 19-inch mounting rails compliant with EIA-310 standards, it is an optimal choice for commercial telecommunication rooms, server closets, and enterprise security control centers.

Key Features

• 12U High-Density Rack Capacity: Accommodates up to 12 rack units of standard 19-inch EIA-310 compliant equipment, patch panels, shelves, and PDUs.

• Extended 540mm Working Depth: Generous interior depth accommodates deeper network switches, desktop NVRs, and power supplies without cable strain.

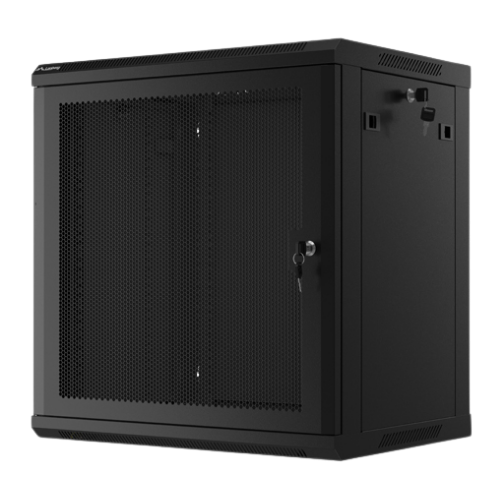

• High-Flow Perforated Mesh Door: Micro-perforated front door design provides exceptional passive airflow and heat extraction for high-draw PoE gear.

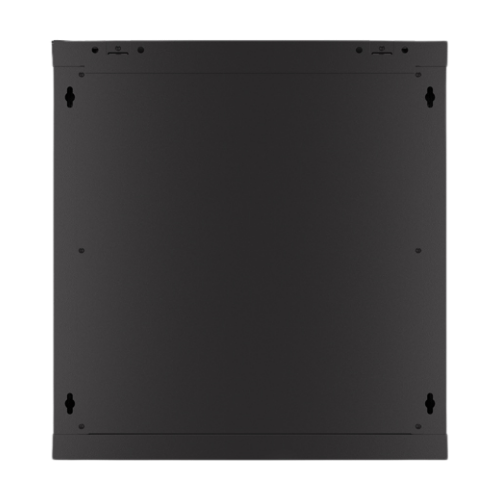

• Heavy-Duty SPCC Steel Frame: Rigid cold-rolled steel construction supports static loads up to 132 lbs (60 kg) securely on structural wall anchors.

• Key-Lockable Front Security: Front cylinder cam lock safeguards active network hardware and critical recording data from tampering and unauthorized access.

• Removable Latch Side Panels: Detachable side panels streamline installation, testing, and periodic patching maintenance.

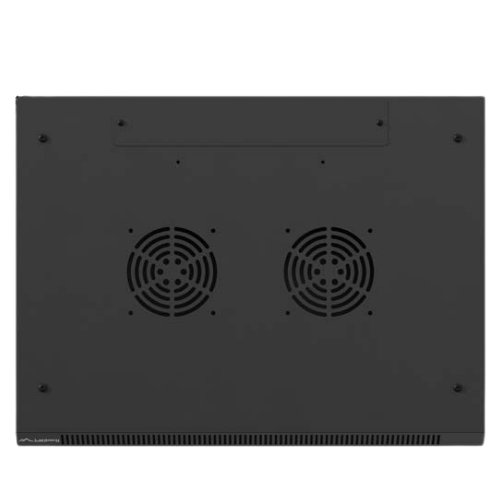

• Top & Bottom Cable Ingress: Pre-punched conduit knockouts on top and bottom panels simplify ceiling and floor cable drop management.

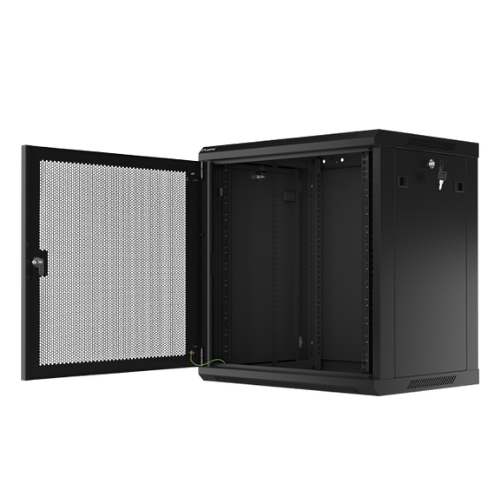

• Adjustable 19" Vertical Rails: Depth-adjustable vertical rails with U-marking indicators facilitate rapid, accurate hardware alignment.

Compatible Devices

• 19-Inch 1U/2U Managed and Unmanaged PoE+ Network Switches (such as LP-SG642FP)

• 1U/2U Cantilever Vented Equipment Shelves (such as 300756, 300766, and 300710)

• 24-Port and 48-Port Cat5e / Cat6 RJ45 Patch Panels

• 1U/2U 19-Inch Fiber Optic Patch Panels, LIUs, and Splice Drawers

• Rackmount and Desktop Network Video Recorders (NVRs) and Storage Servers

• Multi-Door Access Control Systems (such as C2-260 controllers) and DC Power Distribution Units

• 19-Inch 1U Horizontal Rackmount Power Distribution Units (PDUs) and UPS Systems
