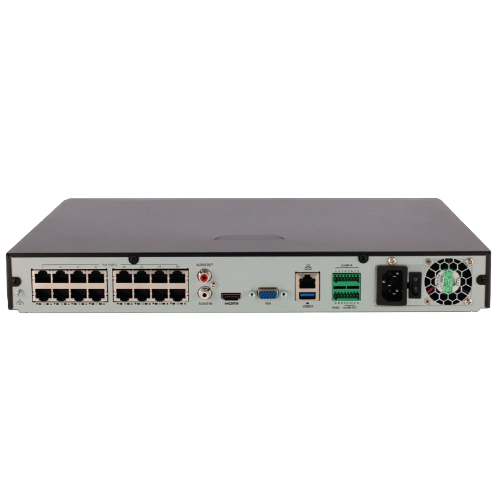

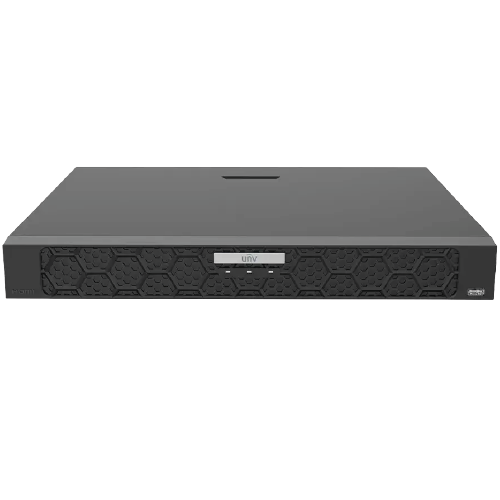

Uniview NVR502-16B-P16 16-Channel 16 PoE 4K Professional NVR

The Uniview NVR502-16B-P16 is an enterprise-tier 16-channel Network Video Recorder engineered to serve as a robust, high-throughput core for professional IP video surveillance networks. Outfitted with an integrated 16-port Power over Ethernet (PoE) network interface, it simplifies system deployment by delivering power and high-speed data transmission to connected IP cameras over single network runs. Capable of supporting ultra-high-definition camera streams, this NVR processes pristine video playback and live viewing up to 4K resolution via its dedicated HDMI output interface, alongside a simultaneous VGA monitor output for flexible control room setups.

Designed for seamless third-party hardware integration, the NVR502-16B-P16 natively supports standard ONVIF profiles and RTSP streaming protocols, making it an ideal choice for expanding existing camera topologies. It features two internal SATA drive bays to handle heavy video retention demands for long-term archiving. Utilizing advanced Ultra 265, H.265, and H.264 video compression, the unit significantly lowers network bandwidth utilization and maximizes drive storage efficiency, ensuring a highly reliable, continuous recording platform for commercial, institutional, and industrial applications.

Key System Advantages

• Plug-and-Play 16 PoE Ports: Features 16 built-in PoE interfaces for direct, hassle-free camera connectivity and power distribution over standard network cables.

• Stunning 4K Video Output: HDMI display output supports resolutions up to 4K (3840 x 2160) for crystal-clear forensic reviews and live multi-screen monitoring.

• Dual SATA HDD Scalability: Houses 2 internal SATA hard drive bays to accommodate expansive local storage capacity for continuous 24/7 recording.

• Universal ONVIF Interoperability: Broad multi-brand camera support via standard ONVIF protocol compliance ensures versatile deployment flexibility.

• Ultra 265 Efficiency: Advanced video compression reduces bandwidth and storage consumption by up to 75% compared to standard formats.

Technical Specifications

Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

People Counting: People Flow Counting, Crowd Density Monitoring
