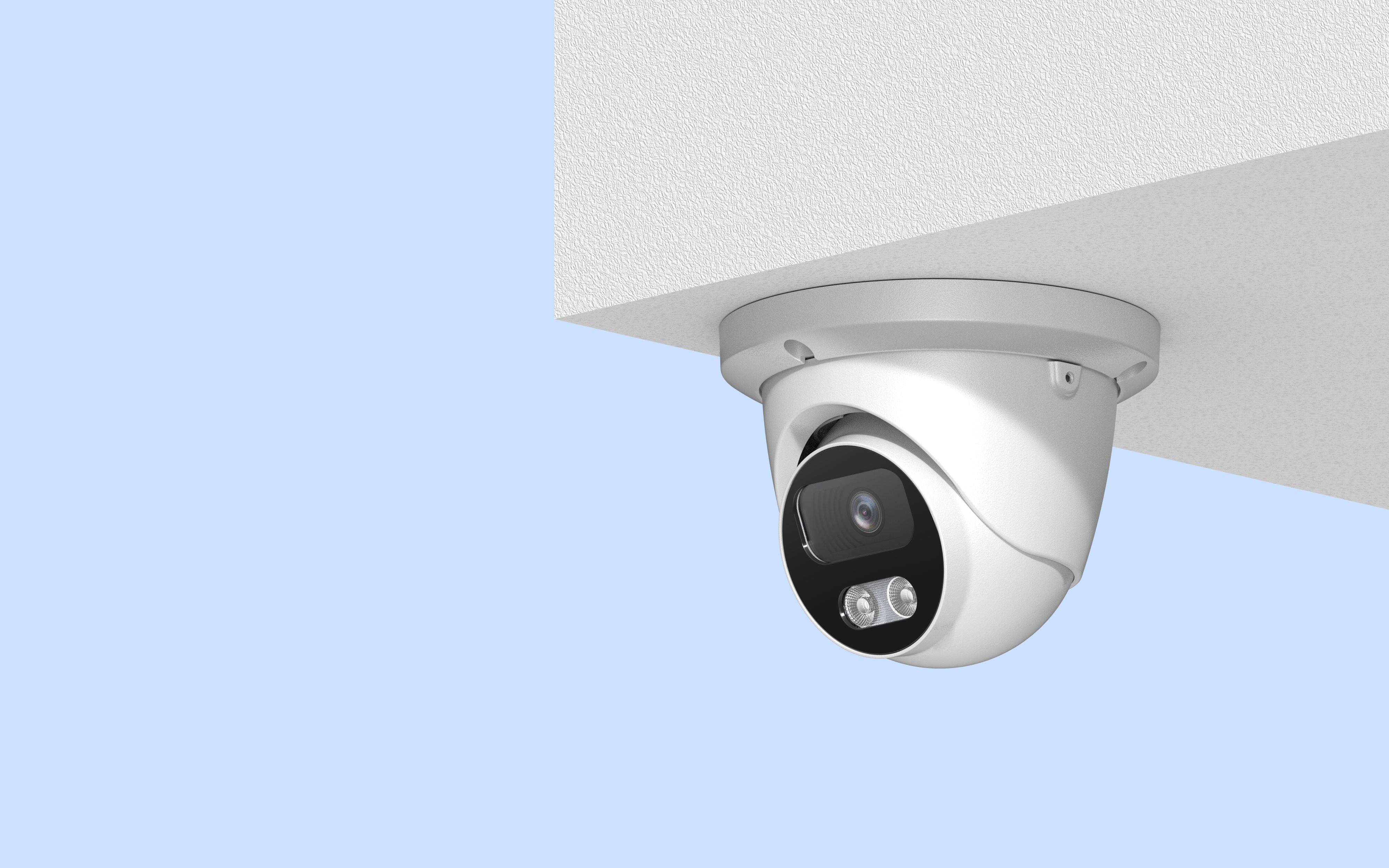

- 5MP Full Color 24/7 Analog Dome Camera, 2.8mm Lens, Audio over Coax (AOC), IP67 Weatherproof - HT-D5SBFPE28-FX 5MP Full Color 24/7 Analog Dome Camera, 2.8mm Lens, Audio over Coax (AOC), IP67 Weatherproof - HT-D5SBFPE28-FX
- Description
Professional Surveillance with High-Definition & Constant Color
Is the ultimate solution for those who refuse to miss a single detail, even in total darkness. Equipped with Warm White Light technology (4000K), this camera eliminates grainy black-and-white night footage, maintaining a vivid, full-color image 24 hours a day.
Key Features:
-
5MP Ultra HD Resolution: Superior image quality ($2592 \times 1944$ px) provides the clarity needed to identify faces and license plates accurately.
-
25m Full Color Night Vision: Two Warm White LEDs illuminate the scene, acting as a deterrent and allowing for full-color recording in pitch-black environments.
-
Audio over Coaxial (AOC): High-quality audio transmission over the same video cable (TVI mode), reducing installation time and cabling costs.
-
2.8mm Wide-Angle Lens: Offers an expansive field of view, making it perfect for monitoring large rooms, parking lots, or building perimeters.
-
Heavy-Duty Metal Housing: Rated IP67, this camera is completely dust-tight and waterproof, designed to withstand the harshest outdoor conditions.
Technical Specifications:
-
Image Sensor: 1/3″ CMOS.
-
Multi-Mode Output: Compatible with AHD, TVI, and CVI protocols.
-
Image Enhancement: DWDR (Digital Wide Dynamic Range), DNR (Digital Noise Reduction), and OSD Menu for custom image tuning.
-
Power: DC12V ± 10%, 450mA.
| SPECIFICATION | ||
| Model NO. | HT-D5SBFPE28-FX | |
| Video Output Mode | AHD/TVI: 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI: 4M@30fps/25fps, 2M@30fps/25fps |
|
| Camera | ||
| Image Sensor | 1/3″ CMOS Sensor | |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Minimun Illumination | Color : 0.03 lux@F2.0, 0 Lux with white light | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 2.8 mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | NO, Support Wram White(4000K) | |
| Infrared Distance | up to 25m | |
| IR Status | AGC Auto Control | |
| Camera Features | ||
| Starlight | N/A | |
| Day/Night | Color | |
| OSD Menu | YES | |
| WDR | DWDR | |
| UTC | YES | |
| Noise Reduction | DNR | |
| Coaxial Audio | YES (only TVI) | |
| White Balance | AUTO / MANUAL | |
| Gain Control | AUTO | |
| General | ||
| Housing | Metal, IP67 | |
| Bracket | NO | |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 450mA | |
| Dimension | ¢96 x 91(H) mm | |
| Weight | 600g | |
