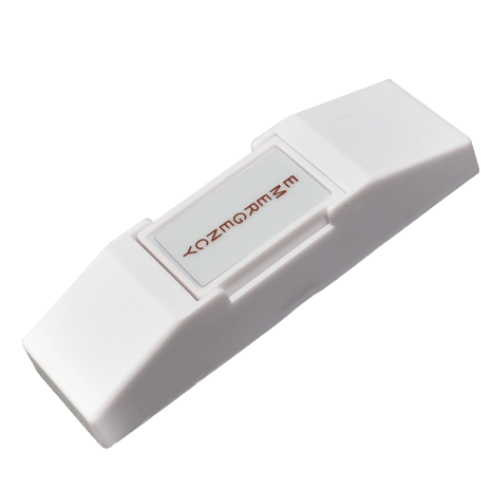

PB67A Wired Panic Button Switch (NC / NO Dual Contact)

The PB67A is a compact, discrete wired panic button designed for intrusion alarm panels, access control systems, emergency signaling, and commercial hold-up setups. Encased in a high-impact white ABS housing measuring 7.6 X 1.7 X 1.7 cm, its slim form factor allows clean mounting under desks, sales counters, reception tables, or inside security booths.

Equipped with dual Normally Closed (NC) and Normally Open (NO) dry contact outputs rated for 12 VDC / 24 VDC at up to 0.3 A, the PB67A offers universal compatibility with wired intruder alarm zones, access control controllers, auto-dialers, and emergency strobe lights.

Key System Features & Functionality

• Dual NC / NO Dry Contacts: Configurable Form-C style output supporting both Normally Closed (security zones) and Normally Open (triggering buzzers or strobes) circuits.

• 12 VDC / 24 VDC Low-Voltage Rating: Operates reliably across standard security control panel voltage ranges at up to 0.3 A switching current.

• Ultra-Compact Profile (7.6 X 1.7 X 1.7 cm): Slim linear design ensures hidden installation under counters, cash registers, or desk frames.

• Durable ABS Housing: Flame-retardant white ABS enclosure protects internal switch mechanisms against physical impact and wear.

• Screw Terminal Connections: Internal screw terminals allow fast, secure wire terminations for 18–24 AWG alarm cable runs.
