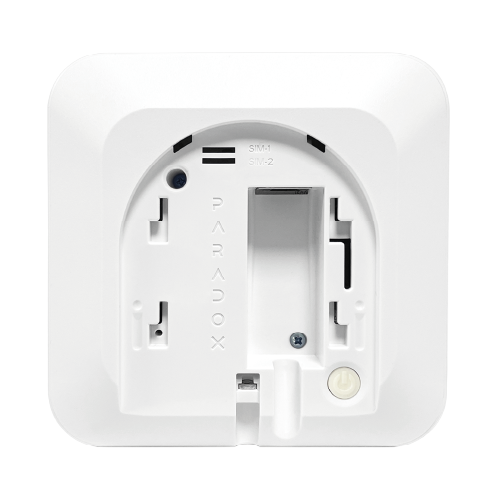

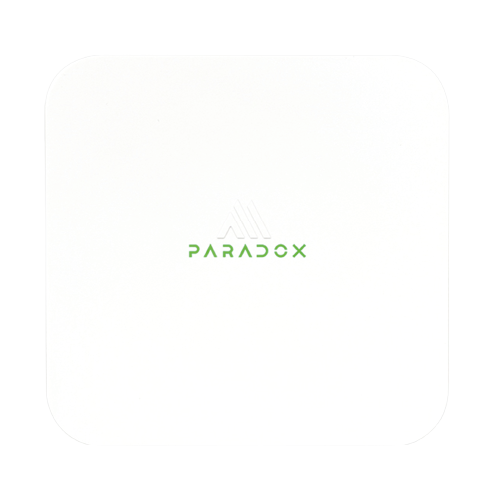

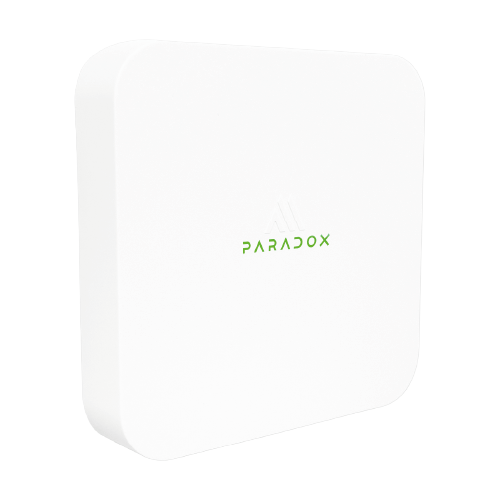

Paradox M25-UOE M-Series Hybrid Wireless Console (Wi-Fi / Ethernet / LTE)

The Paradox M25-UOE (M25 / M25 LTE) is the flagship, fourth-generation hybrid wireless control panel and compact head unit engineered for the Paradox M Series security ecosystem. Designed as the ultra-compact central hub for modern residential, commercial, and multi-tenant installations, it features triple-redundant communication channels integrating onboard Fast Ethernet (RJ45), 2.4GHz Wi-Fi, and an integrated LTE cellular module. Powered via Power over Ethernet (PoE), it uses high-security 2-way GFSK wireless technology with frequency and encryption hopping to manage up to 100-200 total zones, 10 partitions, and 128 users, with full remote control provided by the Paradox BlueEye mobile application.

Key System Features & Functionality

• Triple Communication Redundancy (Ethernet + Wi-Fi + LTE): Ensures uninterrupted alarm reporting with seamless failover between IP network connections and cellular networks.

• Power over Ethernet (PoE) Single-Cable Setup: Simplified single-cable installation supplying both data network communication and unit operating power (10W max).

• 26-Hour Built-in Rechargeable Backup Battery: Internal $3.7V 5000mAh Lithium-ion battery pack provides continuous standby power during total power outages.

• Direct CMS Reporting (Cloud-Independent): Supports up to 4 direct, supervised reporting channels to IPC10 IP receivers without sole reliance on third-party cloud infrastructure.

• High-Capacity Wireless Node Scaling: Manages up to 75 wireless nodes per system, including motion detectors, curtain sensors, smoke detectors, sirens, keypads, and PGM expansion modules.

• Automated Schedule & PGM Control: Features programmable output (PGM) automation, temperature monitoring alerts, and multi-stage auto-arming options (Full, Stay, Sleep).
